Assembly 04

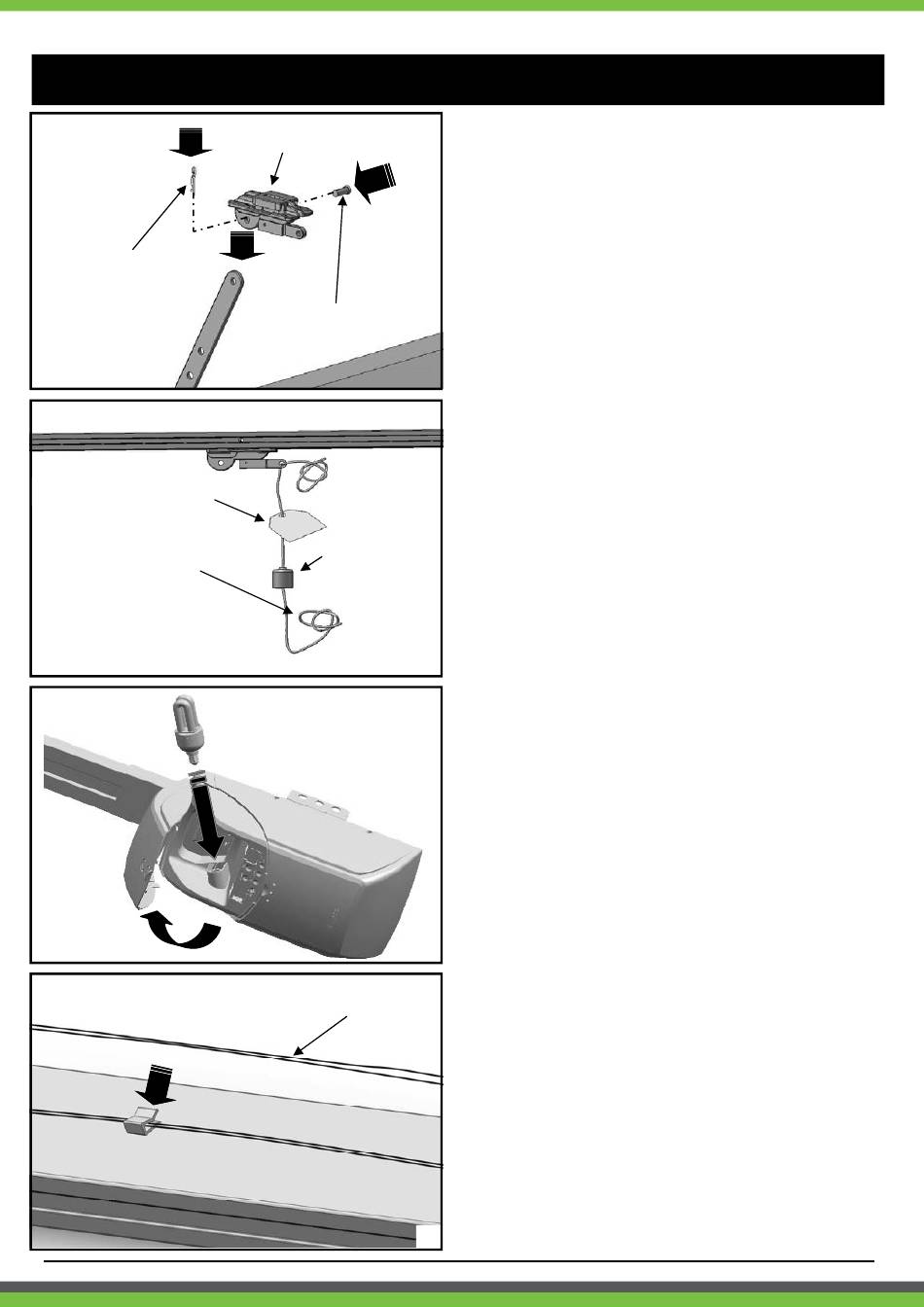

STEP 13.
3 Trolley
Mount trolley to curved arm and fix it with clevis pin short
and hitch pin. (Please note that at this point the Trolley
2 should be in the rail. The purpose of this diagram is only act
as a visual aid)
1
Hitch Pin
Clevis Pin Short
13
STEP 14.
Tie a double overhand knot in one end of the Emergency
Release Rope and slip the other end through the Red
Release Knob, the Release Instruction Card and the hole
at the end of the Release Lever on the Trolley (Please
Release Instruction Card
take time now to read and familiarize yourself with the
instructions on the Emergency Release Label ) Tie a
second double overhand knot in the free end, adjusting the
Release Knob
rope so that the red knob is 180cm above the floor. If the
Double Overhand Knot
rope must be cut, flame seal the cut end with a match or
lighter to prevent fraying or unraveling.
14
STEP 15.
Remove power head light dome and fasten the light bulb .
(mechanical components installation is completed in this
(2)
step. Go to setting procedure.)
15
(1)
STEP 16. (OPTIONAL)
Locate photo eye wires on top of rail assembly and slide it
into guiding clips.
16
