Guardian DCS2 Installation Instructions Manual page 8

Assembly 02
Header Wall
Track
5cm Clearance
Door
Support
Block
1/2 Door Frame
Header Bracket
Pre-Drawn
Vertical Line
1/2 Door Panel
1/2 Door Panel
Door Bracket
Header Bracket
Hitch Pin
3
High Point of
Door Travel
Pre-Drawn
Horizontal
1/2 Door Frame
#12x1＂Lag Screw
#12x1" Lag
Screw
1
2
1
2
Clevis Pin

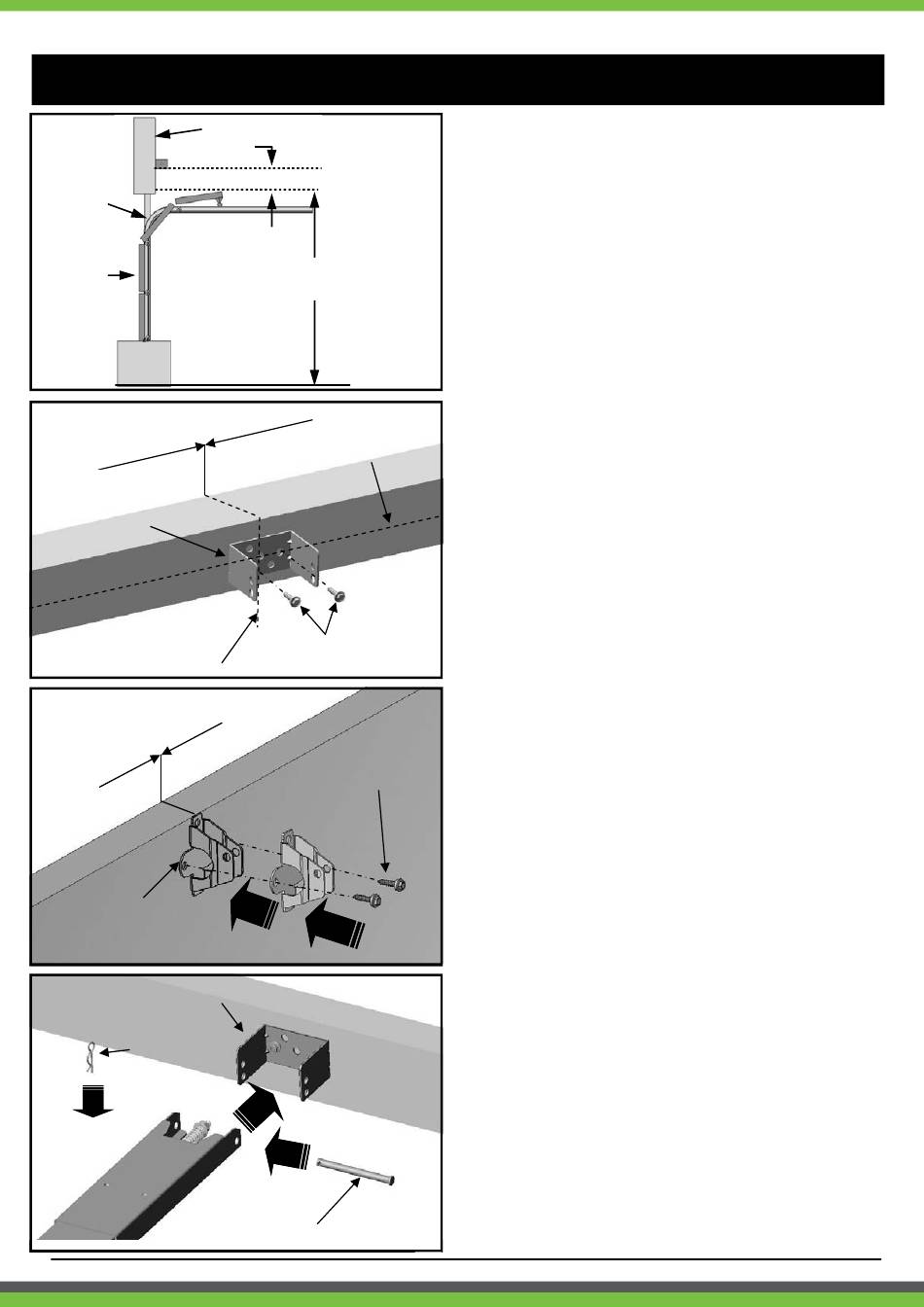

STEP 5.
Install head bracket. The height is seen in fig.5 Head
bracket position is higher than header wall and mark the
horizontal line.
05
STEP 6.
Make a centerline on door frame, and cross the previous
horizontal line. Fasten the cross point with screws.
06
STEP 7.
Mount door bracket at the position of center of top panel
with screws.
07
STEP 8.
Connect track end and header bracket using clevis pin
long. Insert hitch pin into clevis pin long .
08
6
