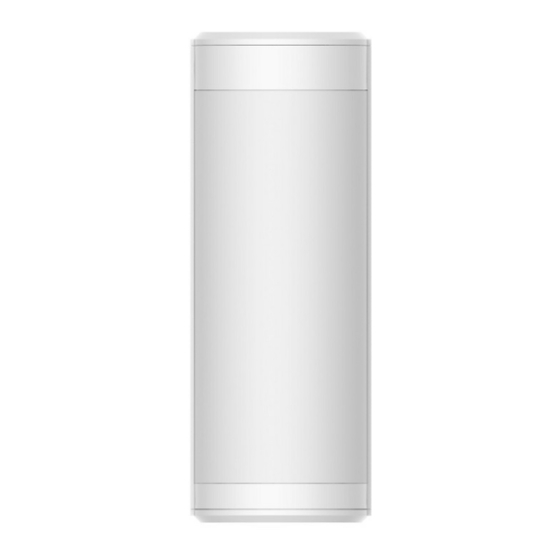

Wireless tri-tech am detector

Advertisement

Quick Links

DS-PDTT15AM-LM-WA
Wireless Tri-Tech AM Detector
Quick Start Guide
E N G L I S H

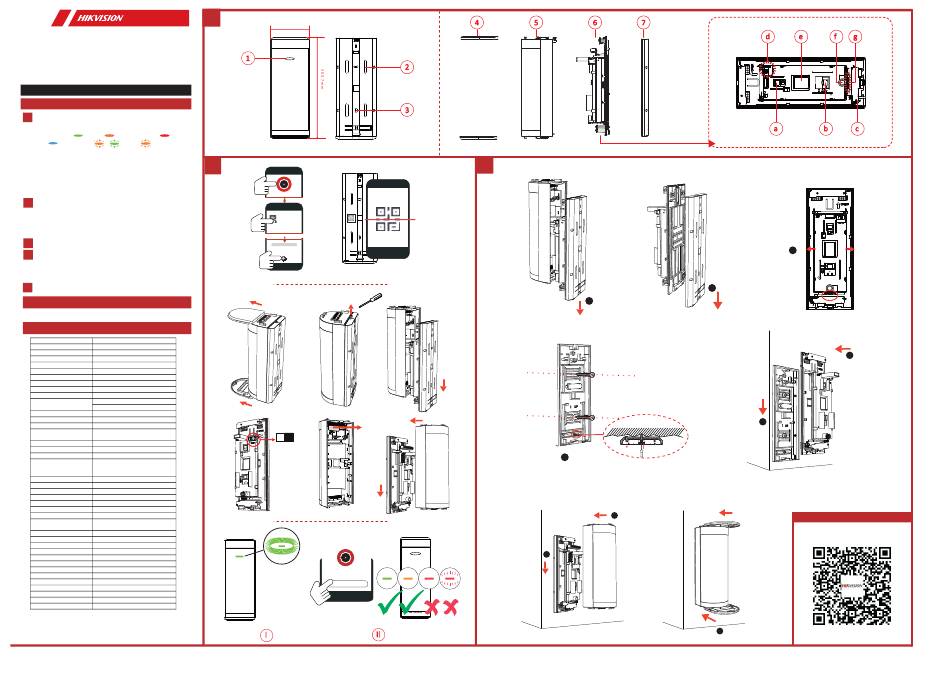

Diagram References

1

Appearance

1. Indicator
PIR Triggered: (top)
(bottom)
MW Triggered:
Alarm:
Masked:
Fault:
+
2. Vertical Pole Mount
3. Screw Hole
4.
Top/Bottom Cover
5. Front Panel
6. PCBA
a. PIR Module (Top)
b. PIR Module (Bottom)
c. Tamper Switch
d. Power Switch e. Microwave Module
f. Antenna
g. PIR Angle
7. Rear Panel
2

Enrollment

I. Enrollment succeeded.
Note: The front panel should be installed before powering on
successfully.
II. Check signal strength.
3

Installation

4

Detection Range

I. Detection range
1. PIR Angle Settings 2. PIR Distance Settings
II. Masking seal
5

Anti-Masking Alarm

User Manual
Scan the QR code for more information and operation help.

Specification

Detection Method
Passive Infrared,Microwave
Detection Range
15 m
Detection Angle
90° @ 180° adjustable
Detection Zones
92
Detectable Speed
0.3~2 m/s
Sensitivity
Auto, Low
White Light Filter
10000 lux
Microwave Frequency
24 GHz(24~24.25 GHz)
Pet Immunity
45 Kg
Anti-masking
Support
Support
Adaptable Coverage
Pattern mask included
Digital Processing
Tri-Signal Logic
Sealed Optics
Support
Tamper Protection
Front,Rear
Environment Temperature
Support
Indicator
Signal Strength Indicator
Support
Anti-Sway Analytics
Support
Power Switch
Power Up Enrolling
Green(Top PIR), Red(Microwave),
LED Indicator
Orange(Bottom PIR), Green+Orange(Mask),
Blue(Alarm)
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
915 MHz
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1 Km
Frequency Hopping
Support
Enrolling Method
Power up,Remote ID,QR Code
5 years in work status (being triggered 20
Standard Battery Life
times per day)
Power Supply
Battery Powered
Battery Model
CR123A × 5
Typical Voltage
3 V
Low Voltage Value
2.45±0.1 V
Voltage Range
Fully charged(new) to 2.45±0.1V(battery)
Operation Temperature
-25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature
-25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity
10% to 90%
IP Rate
IP65
Dimension(WxHxD)
75 mm × 202 mm × 73 mm
Weight
600 g
Mounting Height
0.8 to 1.2 m
Mounting Method
Wall
Note: This product can only power the camera module
(DS-PDCM15PF-IR) as its accessory.
UD26055B
1
74.2 mm
1
2
xxxx
Device
OFF ON
14

Signal Strength Test

I
II
Hangzhou Hikvision Digital Technology CO., Ltd.
4
5
2
3
3
13
13
4
8
No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China
6
7
d
2
1
6
7
9
e
f
g
a
b
c
3
5
User Manual
