Setma A11FI09000 Instruction Manual

Fiat 500x 2015 max depth 145mm fiat infodapter

A11FI09000

Fiat 500X 2015>

Max

Depth 145mm

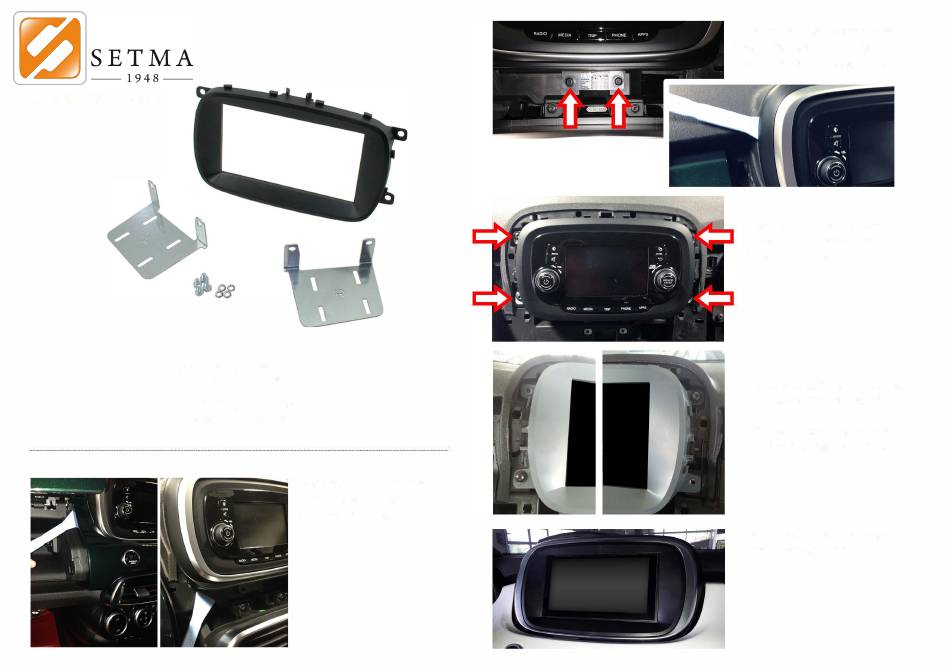

Remove the plastic panel

from below the radio using

a panel removal tool.

Remove the two screws from

below the stereo and then

unclip the surounding panel.

Remove four highlighted

screws and remove the

OEM head unit.

Fit Brackets to aftermarket radio

and fit radio into the dashboard.

Fit the facia plate as shown

using the original car screws.

Reassemble the OEM dash

board in reverse order.

Table of Contents

Need help?

Do you have a question about the A11FI09000 and is the answer not in the manual?

Page 1 Remove four highlighted screws and remove the OEM head unit. A11FI09000 Fit Brackets to aftermarket radio and fit radio into the dashboard. Fiat 500X 2015> Depth 145mm Fit the facia plate as shown using the original car screws.
Page 2 A11FI09000 FIAT INFODAPTER INSTRUCTION MANUAL...
Page 3: Dip Switch Settings

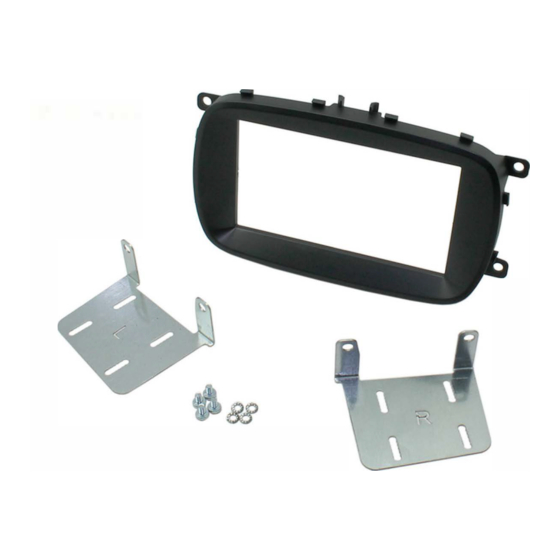

ABOUT The SETMA Infodapter for Fiat 500X 2015> vehicles allows vehicle setting and parking sensor information to be displayed on any aftermarket head unit with rear camera input. The Infodapter also allows the use of the steering wheel controls with almost every steering wheel control compatible head unit on the market.
Page 4: Steering Wheel Controls
Steering Wheel Controls À Speech Button Á Á Track Up/Down À Fig 3. Configuration Menu To access the menu, push and hold the speech button for 2 seconds (Fig. 3).(if no speech button, pick up can be used) This will enable the configuration menu. To navigate through the menu options use the Track Up/ Track Down buttons.
Page 5 Configuration Menu...continued Picture Settings - Infodapter Settings Adjust Brightness, contrast and Screen Size/Position colour saturation. Picture Settings Preferences <Back Preferences - Preferences Park Assist Version Park Assist Version - Select according to the Camera Connected colour configuration of the park assist fitted to Reverse Priority Park Assist the vehicle.
