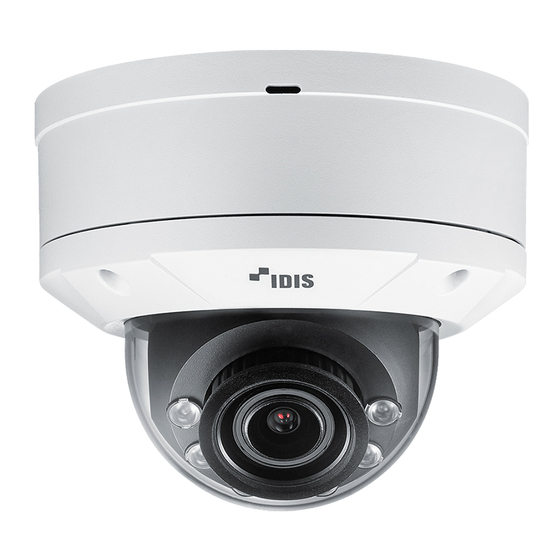

- Page 1 Network Camera Installation Manual DC-D3C33HRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Two-way audio communication support for remote You can use the IDIS Discovery program to change audio dialog network camera settings or the IDIS Solution Suite • Video stream buffering to counter pre-/post-event... - Page 7 Remote monitoring and recording via multistreaming • Network-based integrated management of multiple are available using the IDIS Solution Suite Compact network cameras program. For more information on using IDIS Solution Suite Compact, refer to its operation manual.
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. Network Camera Terminal Blocks (2 ea.) Quick Guide CVBS Cable Allen Wrench Screws and anchors (each 3 ea.) Desiccant Guide Pattern Ferrite Core... -
Page 9: Overview
Part 1 – Introduction Overview Dome Cover & Horizontal Rotator IR LED Vertical Rotator Lens Rotator Safety Wire Lens • Safety Wire Dome Cover Assembly Part Prevents the dome cover from falling on to the floor Bottom Cover when detached from the camera. Power Network Port Body... - Page 10 For more information on network connection setup, necessary. refer to the IDIS Discovery operation manual. • Audio The table below shows the network cable specifications. - O (Out): Connect an amplifier to this port (line <The network cable specifications>...
- Page 11 Part 1 – Introduction • Check your local laws and regulations on making video or audio recordings. The user will be held liable for any violation of the law. (Article 25-5 of the Personal Information Protection Act: Operators of image data processing devices may not operate such devices for purposes other than as originally intended during device installation, place such devices at locations other than as originally...
-
Page 12: Factory Reset
It's also possible to do a factory reset by pressing and releasing the reset switch while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS Discovery operation manual. -
Page 13: Installation
Part 1 – Introduction Installation Remove the dome cover. Installation of this product does not require the use of special tools. For more information on other devices comprising the overall system, refer to their respective installation manuals. Product color and design may vary depending on the model. -
Page 14: Installation
Part 1 – Introduction Installation • Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. • Install the camera in a shaded area. If the camera is installed in direct sunlight, it may be affected adversely. -
Page 15: Angle Adjustment
Part 1 – Introduction Assemble the cable rubber to the bottom cover. Attach the enclosed desiccant in the bottom to Connect external devices, the network cable, and prevent moisture. the power adapter. Desiccant Adjust the angle. For more information, refer to the Angle Adjustment. -
Page 16: Closing The Dome Cover
Part 1 – Introduction • Horizontal Rotation Dimension Used to adjust the lens' horizontal angle. Turn the horizontal rotator in the clockwise or counterclockwise direction. Closing the Dome Cover Fasten the screws for the dome cover clockwise using the allen wrench provided with the camera. Ø... -
Page 17: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out... -
Page 18: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 19: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 20: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/1.7" CMOS Max. Resolution 3840 x 2160 (16:9) 4000 x 3000 (4:3) Scanning Mode Progressive Scan Lens type Motorized Vari-focal Focal Length f=4.5 - 10mm Aperture F=1.6 Iris Control... - Page 21 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bitrate Control CBR / VBR Max. Frame Rate 30fps : 3840x2160 15fps : 4000x3000 Audio Compression G.726, G.711 Supported DirectIP 3840x2160, 1920x1080, 1280x720, 640x360 Resolution Non DirectIP 8M Mode: 3840x2160, 1920x1080, 1280x720, 640x360 12M Mode: 4000x3000, 2592x1944, 1280x960, 640x480 Multi-Video Streaming Quadruple...
