Summary of Contents for Idis DC-D3233RX-N

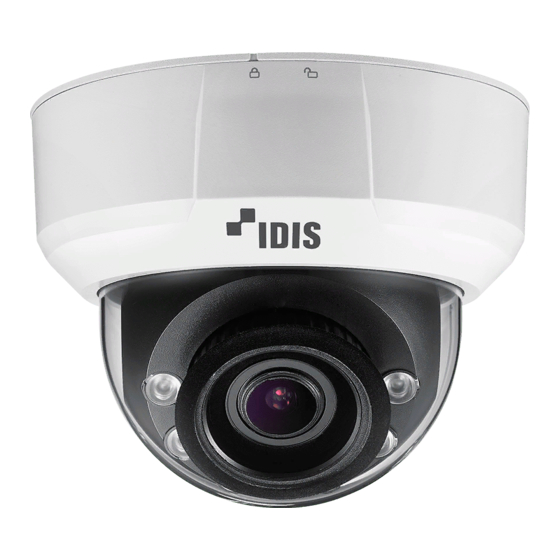

- Page 1 Network Camera Quick Guide DC-D3233RX-N / DC-D3233X-N / DC-D6233RX / DC-D6233X Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. -
Page 4: Dome Cover
CVBS Cable Protect Connector (1 ea.) Guide Pattern Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : https://www.idisglobal.com/support/csdownload - IDIS Website (www.idisglobal.com) > Support > Technical Resources - Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact. -
Page 5: Camera Installation
Camera Installation DC-D3233RX-N, DC-D6233RX Removing the Dome Cover Turn the dome cover counterclockwise. Remove the dome cover. Horizontal Rotator SD Memory Card Slot IR LED Video Out Vertical Rotator Network Port Lens Rotator Cable Rubber Wall/Ceiling Lens Installation Hole Factory Reset Button... -
Page 6: Inserting A Sd Memory Card
Inserting a SD Memory Card Insert a SD memory card into the SD memory card slot with the ‘micro SD’ print facing upward. Use the screws, anchor provided with the camera Push the SD memory card until it disengages from to secure the install body on a wall or a ceiling. -
Page 7: Closing The Dome Cover
Closing the Dome Cover Angle Adjustment Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. Lens Rotation Horizontal Rotation Vertical Rotation Remove the protective film inside and outside before closing the dome cover. Network Camera... -
Page 8: Specifications
Specifications Operating Temperature -10°C ~ +50°C (14°F ~ +122°F) Boot Up Temperature 0°C ~ +50˚C (32°F ~ +122˚F) Operating Humidity 0% ~ 90% Power Source DC-D3233RX-N, , PoE(IEEE 802.3af, Class3) DC-D6233RX DC-D3233X-N, , PoE(IEEE 802.3af, Class2) DC-D6233X Power DC-D3233RX-N, , 0.61A, 7.32W... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
