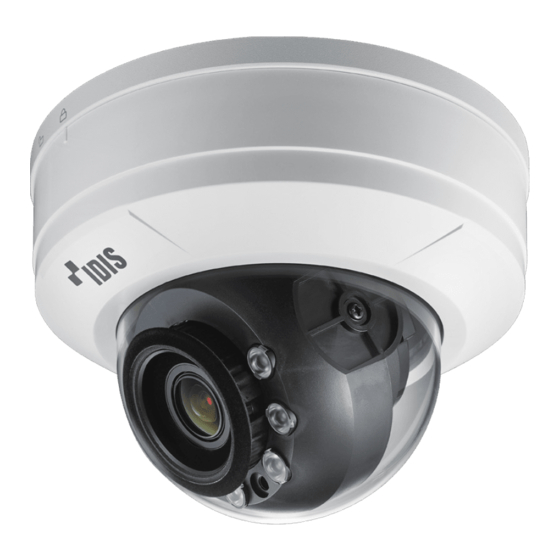

- Page 1 Network Camera Quick Guide DC-D3533HRX / DC-D3533RX Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. -
Page 4: Dome Cover
Upon purchasing the product, check inside the box to make sure all the following accessories are included. Some parts may differ depending on the situation. Item Network Camera Quick Guide Terminal Blocks (2 ea.) DC-D3533HRX model Allen wrench ( only) Screws (3 ea.) Desiccant ( DC-D3533HRX model only) -
Page 5: Camera Installation
Install Bracket Bottom Cover Assembly Hole Power NPT 3/4" Cover & & Network Port Camera Installation DC-D3533RX Removing the Dome Cover DC-D3533HRX Loosen the screws counterclockwise using the allen wrench provided with the product. Remove the dome cover. Network Camera... -
Page 6: Installation
Remove the dome cover. DC-D3533HRX Use the screws, anchor provided with the camera to secure the install bracket on a wall or a ceiling. Use the provided guide pattern to check the distance between the screws. - Page 7 Attach the enclosed desiccant in the bottom to Block the cable access hole for prevent moisture. waterproofing by using the enclosed cable access hole rubber when routing the thin Desiccant or several wires. Waterproofing sealing is required by using silicone etc. after blocking the cable access hole.
-
Page 8: Closing The Dome Cover
Closing the Dome Cover DC-D3533HRX Fasten the screws for the dome cover clockwise using the allen wrench provided with the camera. Connect external devices, the network cable, and the power adapter. Adjust the angle. For more information, refer to the Angle Adjustment. -
Page 9: Angle Adjustment
Angle Adjustment Lens Rotation Horizontal Rotation Vertical Rotation Network Camera... -
Page 10: Specifications
Specifications Vandal Resistance Yes ( DC-D3533HRX only) Out-door Ready DC-D3533HRX IP66, Heater ( only) Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) Boot Up Temperature -20°C ~ +60˚C (-4°F ~ +140˚F) Operating Humidity 0% ~ 90% Power Source , PoE(IEEE 802.3af, Class3) Power Consumption Max. - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
