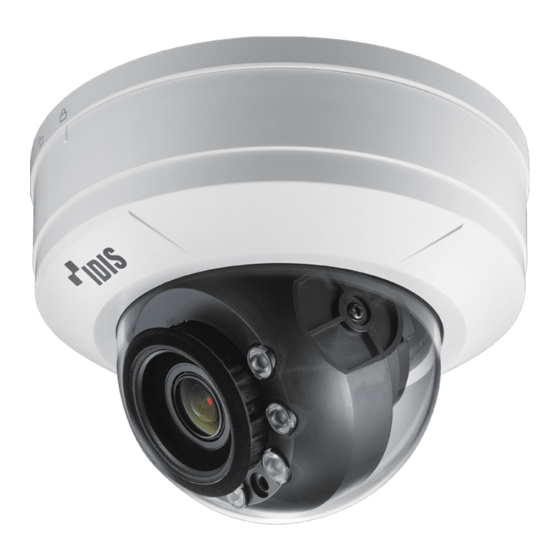

- Page 1 Network Camera Installation Manual DC-D3533HRX / DC-D3533RX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Two-way audio communication support for remote ethernet. audio dialog You can use the IDIS Discovery program to change • Video stream buffering to counter pre-/post-event network camera settings or the IDIS Solution Suite buffering and network delays for improved network... - Page 7 Remote monitoring and recording via multistreaming • Network-based integrated management of multiple are available using the IDIS Solution Suite Compact network cameras program. For more information on using IDIS Solution Suite Compact, refer to its operation manual.
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. DC-D3533HRX DC-D3533RX Terminal Blocks (2 ea.) Network Camera Quick Guide CVBS Cable Allen Wrench Screws (3 ea.) DC-D3533HRX... -
Page 9: Overview
DC-D3533RX & Safety Wire Dome Cover Assembly Standards • Safety Wire Prevents the dome cover from falling on to the floor DC-D3533HRX only when detached from the camera. • Dome Cover Assembly Standards DC-D3533RX only For tightening the dome cover. - Page 10 Bottom Cover images from a remote computer over the network. For more information on network connection setup, Power refer to the IDIS Discovery operation manual. Network Port Cable Rubber Wall/Ceiling Installation Hole Video Out...
- Page 11 • Heater in data loss or memory card failure. Test the SD memory card regularly and replace it whenever Has a built-in heater that enables normal operation in necessary. sub-zero temperature conditions. DC-D3533HRX only...
-
Page 12: Factory Reset
IDIS Discovery program from a remote • Organize the power cable so that it will not cause location. A factory reset will reboot the system. For more... -
Page 13: Installation
Product color and design may vary depending on the model. Removing the Dome Cover DC-D3533HRX DC-D3533RX Loosen the screws counterclockwise using the allen wrench provided with the product. Turn the dome cover counterclockwise. -
Page 14: Inserting A Sd Memory Card
• Install the camera in a shaded area. If the camera is installed in direct sunlight, it may be affected adversely. DC-D3533HRX Use the screws, anchor provided with the camera to secure the install bracket on a wall or a ceiling. - Page 15 Part 1 – Introduction Block the cable access hole for waterproofing by using the enclosed cable access hole rubber when routing the thin or several wires. Waterproofing sealing is required by using silicone etc. after blocking the cable access hole. Ask your retailer for details.
-
Page 16: Closing The Dome Cover
Adjust the angle. For more information, refer to the Angle Adjustment. Closing the Dome Cover DC-D3533HRX Fasten the screws for the dome cover clockwise using the allen wrench provided with the camera. Use the screws, anchor provided with the camera to secure the body on a wall or a ceiling. -
Page 17: Angle Adjustment
Part 1 – Introduction Angle Adjustment DC-D3533RX The lens can be rotated along three axes. Attach the dome cover to the bottom cover. Fasten the dome cover clockwise. Lens Rotation Horizontal Rotation Vertical Rotation • Lens Rotation Used to adjust the lens' rotation angle. Turn the lens rotator clockwise or counterclockwise direction. -
Page 18: Dimensions
Part 1 – Introduction Dimensions DC-D3533RX DC-D3533HRX Ø 160mm (6.3") Ø 160mm (6.3") -
Page 19: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out... -
Page 20: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 21: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 22: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/1.8" CMOS Max. Resolution 2592 x 1944 Scanning Mode Progressive Scan Lens type Motorized Vari-focal Focal Length f=3.6 - 10mm Aperture F=1.84 - 2.75 Iris Control P-Iris Angular Field of View... - Page 23 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bitrate Control CBR / VBR Max. Frame Rate 30fps : 2592 x 1944 15fps : 2592 x 1944 (WDR) Audio Compression G.726 (8KHz), G.711 μ - Law (8KHz), G.711 a - Law (8KHz), ADPCM 16K Supported Resolution 2592x1944, 1280x960, 640x480, 320x240 Multi-Video Streaming...
- Page 24 Part 3 - Appendix General Vandal Resistance Yes ( DC-D3533HRX only) Out-door Ready IP67, Heater ( DC-D3533HRX only) Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) Boot Up Temperature -20°C ~ +60˚C (-4°F ~ +140˚F) Operating Humidity 0% ~ 90% Power Source , PoE(IEEE 802.3af, Class3)
- Page 26 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
