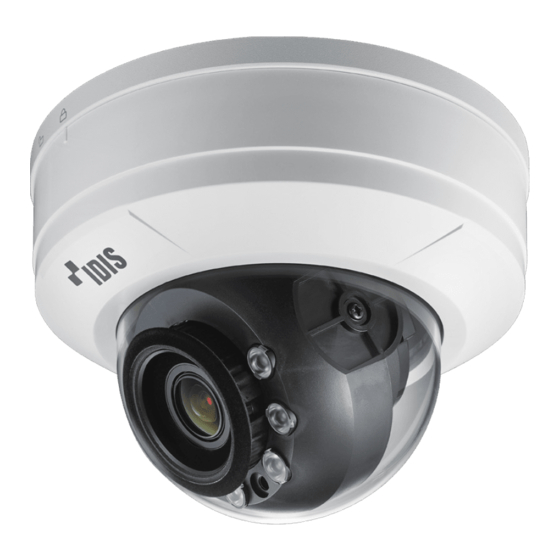

DC-D3533HRX / DC-D3533RX
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-D3533RX and is the answer not in the manual?

Questions and answers

Related Manuals for Idis DC-D3533RX

Summary of Contents for Idis DC-D3533RX

  • Page 1 Network Camera Operation Manual DC-D3533HRX / DC-D3533RX Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Camera Protocol.
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    - The DirectIP™ NVR also allows you to control all camera settings directly from the NVR, without the Launch the IDIS Discovery program and from the list, need for a computer. select a camera whose protocol you wish to change.

  • Page 8: Remote Setup

    Part 1 - Remote Setup Remote Setup Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon. Select Remote Setup from the Setup menu to load the Remote Setup screen.

  • Page 9: Quick Setup

    There may be some more settings that cannot be changed, too. If you want to change those settings, Change the camera’s system information, add users/ connect to the camera by using the IDIS Discovery groups, and/or import/export settings. program. - ONVIF Event Type •...

  • Page 10: Date/Time

    Part 1 - Remote Setup • Setup Date/Time - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 12. - Import Setup: Open a setup file and apply its settings to the camera.

  • Page 11: User/Group

    Part 1 - Remote Setup User/Group webcasting. • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Network

    Part 1 - Remote Setup Network • Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.

  • Page 13: Fen

    Part 1 - Remote Setup • Check Use to activate IPv6. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the Select Use FEN to enable the FEN feature. current settings, and then restart Remote Setup.

  • Page 14: Port/Qos

    By enabling IDIS Web and RTSP ports, you • You will not be able to save FEN settings unless will be able to use the IDIS Web program or a media you click on the OK button next to the FEN name player that supports RTSP (Real-Time Streaming field and check the entered name's availability.
  • Page 15 • Use HTTPS: Select this option to apply https protocol- • In a WAN environment, it is recommended that you based security on IDIS Web. use the UPnP function if you record video by using • Use UPnP: If the camera is connected to the network the FEN function or FEN connection is not smooth.

  • Page 16: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control Security Regulates the camera’s network bandwidth use based on network traffic fluctuations. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. Select Network Bandwidth limit and then specify - Add: Add new IP addresses to Allow List or Deny the maximum bandwidth.

  • Page 17: Ieee 802.1X

    Part 1 - Remote Setup • SSL: Select this option to enable SSL (Secure Sockets IEEE 802.1X Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, Select the IEEE 802.1X option to enable IEEE 802.1X programs and systems that do not support SSL will network connection authentication.

  • Page 18: Video

    Part 1 - Remote Setup Video Camera Image Sensor Configure Image Sensor settings. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Mirroring: Select Horizontal Reverse or Vertical Reverse to flip the image horizontally or vertically. • Pivot: Select a direction to rotate images 90 degrees clockwise or counterclockwise.
  • Page 19 Part 1 - Remote Setup White Balance Exposure Configure White Balance settings. Configure Exposure settings. • Preset: Use preconfigured white balance settings. • IRIS: Adjust the openness of the lens IRIS. - Auto: Allow the system to adjust the white - P-IRIS (Auto): The system will assess the lighting balance automatically.
  • Page 20 Part 1 - Remote Setup - HSBLC (High Suppress Backlight Compensation): Day & Night When a certain area of images is too bright Configure Day & Night settings. due to backlight under low lighting conditions and it causes the other area to be too dark, this function provides the other area of images brightly and clearly by blocking the backlight in the certain area.
  • Page 21 Part 1 - Remote Setup • IR Cut Filter: IR Cut Filter blocks out the infrared Miscellaneous spectrum. You can ensure clear images at all times by Configure Miscellaneous settings. blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

  • Page 22: Streaming

    Part 1 - Remote Setup Streaming • Compression: Choose the streaming compression method. The H.265 compression does not support ONVIF Protocol and RTSP. When using H.265 compression, a device that does not support H.265 compression may prevent the screen from being displayed. •...
  • Page 23 Part 1 - Remote Setup • Multi-View Streaming: Designate a specific area of - Resolution Limit: Indicates the maximum the screen and stream images from that area only. resolution that can be set for the streaming area. (not supported for the primary stream) Click Setup to - Resolution: Designate a streaming area.

  • Page 24: Webcasting

    Part 1 - Remote Setup Webcasting Select the MAT option to use the MAT (Motion Adaptive Use the webcasting service to view live images from the camera on a web site. Transmission) feature during video transmission and recording. • HTML Code: Copy and paste the html code shown on •...

  • Page 25: Privacy Masking

    Part 1 - Remote Setup • Frame Rate: Designate the frame rate to be used Privacy Masking between the end of the Inactivity Period and the next motion detection. When the slow shutter mode is Select Privacy Masking to set up a privacy mask over enabled under Video >...

  • Page 26: Audio

    Part 1 - Remote Setup Audio In/Out Configure audio in/out settings. • Audio Codec: Select an audio codec. • Input: Select an option and then adjust the volume. Noise Filter reduces the environmental noise and enhances the voice. If you turn on the noise filter, the sound may be distorted somewhat.

  • Page 27: Event Action

    Part 1 - Remote Setup Event Action Alarm out Designate event detection alert actions. Select Alarm Out to enable alarm out. • Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration.

  • Page 28: Email

    Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 29: Audio Alarm

    Part 1 - Remote Setup Audio Alarm FTP Upload Select Audio Alarm to generate audio. Select FTP Upload to upload .jpg image of the event detected to an FTP server. • List: Displays a list of audio files to playback. Click Add or Remove to add/remove audio (.wav) files.
  • Page 30 Part 1 - Remote Setup - Resolution/Quality: Choose the resolution and quality of the images to upload to the FTP server. Range of resolution settings you can use here can vary depe nding on the resolution setting applied under Video > Streaming. - Base File Name: Enter a name for the files to be uploaded to the FTP server and then choose file identification options.

  • Page 31: Record

    Part 1 - Remote Setup Record Schedule Select the Schedule tab and set up a recording schedule. Select Record to record video on the SD memory card. First, make sure that an SD memory card (Class 6 or • Mode: Choose a recording mode. higher) has been properly inserted.

  • Page 32: Event

    (post-event). • Recordings saved on the SD memory card can be searched and played back from the IDIS Solution Suite Compact program or remotely from the remote program. For more information, refer to each program's operation manual.

  • Page 33: Motion Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 34: Trip-Zone

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 35: Audio Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 36: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 37: System Event

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.
  • Page 38 Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 39: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 40 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 41: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 42 Part 2 - IDIS Web Shows login information. Indicates the camera's number. Used to control zoom and focus at a remote location. • One push button - Press this button to find the optimum focus automatically. - It is recommended to get an approximate focus using the manual focusing button before pressing the one push button for fast and efficient focusing.
  • Page 43 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Fisheye Dewarping: This function is not supported. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Live mode does not affect the camera's name on the remote system.

  • Page 44: Web Search Mode

    113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 45 Part 2 - IDIS Web Click to configure rendering mode and OSD settings. Select rendering mode to adjust the video output rate or select which OSD elements to display on the screen from the OSD list. TYPE 1 Click to switch over to Web Live mode.
  • Page 46 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Fisheye Dewarping: This function is not supported. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system.

  • Page 47: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio In/Out Event Action Alarm Out Email Remote Callback...

  • Page 48: Index

    Part 3 - Appendix Index ONVIF Protocol Bitrate Control Quality Camera Name Remote Port Compression Resolution RTSP Port Date/Time DSCP FEN Name Time Sync FEN Server Frame Rate Use FEN Use HTTPS IDIS Web port User/Group IPFiltering Use UPnP Network Bandwidth Limit V1.2...
