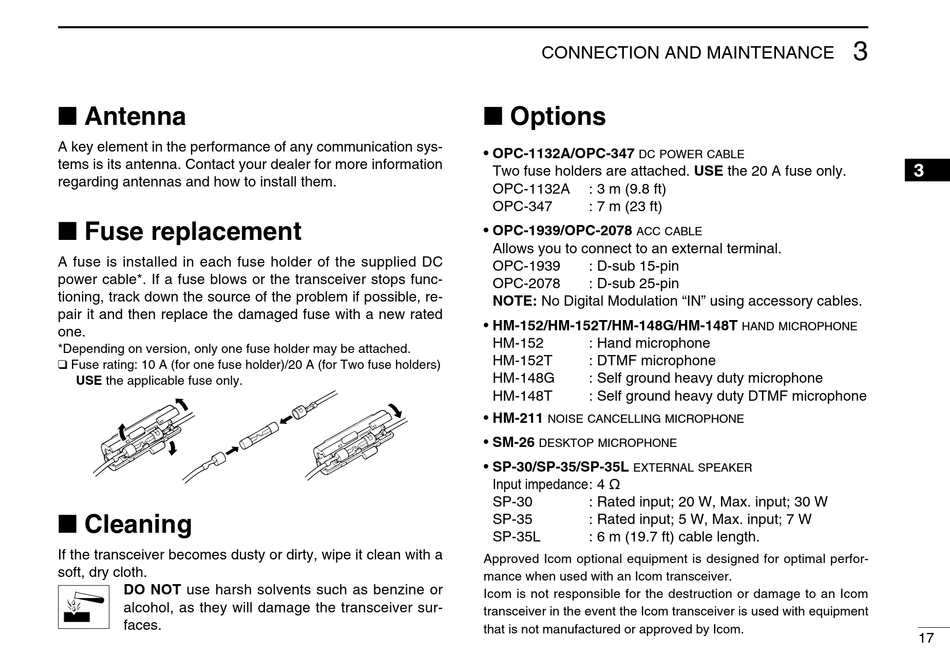

■ Antenna

A key element in the performance of any communication sys-
tems is its antenna. Contact your dealer for more information
regarding antennas and how to install them.

■ Fuse replacement

A fuse is installed in each fuse holder of the supplied DC
power cable*. If a fuse blows or the transceiver stops func-
tioning, track down the source of the problem if possible, re-
pair it and then replace the damaged fuse with a new rated
one.
*Depending on version, only one fuse holder may be attached.
❑ Fuse rating: 10 A (for one fuse holder)/20 A (for Two fuse holders)
USE the applicable fuse only.

■ Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
DO NOT use harsh solvents such as benzine or
alcohol, as they will damage the transceiver sur-
faces.
CONNECTION AND MAINTENANCE

■ Options

• OPC-1132A/OPC-347
dc power cable
Two fuse holders are attached. USE the 20 A fuse only.
OPC-1132A : 3 m (9.8 ft)
OPC-347 : 7 m (23 ft)
• OPC-1939/OPC-2078
acc cable
Allows you to connect to an external terminal.
OPC-1939 : D-sub 15-pin
OPC-2078 : D-sub 25-pin
NOTE: No Digital Modulation "IN" using accessory cables.
• HM-152/HM-152T/HM-148G
HM-152 : Hand microphone
HM-152T : DTMF microphone
HM-148G : Self ground heavy duty microphone
• SM-26
desktop microphone
• SP-22/SP-30/SP-35
external speaker
Input impedance : 4 ø
SP-22/SP-35 : Rated input; 5 W, Max. input; 7 W
SP-30 : Rated input; 20 W, Max. input; 30 W
Approved Icom optional equipment is designed for optimal perfor-
mance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with equipment
that is not manufactured or approved by Icom.
