Summary of Contents for Hans Grohe Clubmaster 27438 1 Series

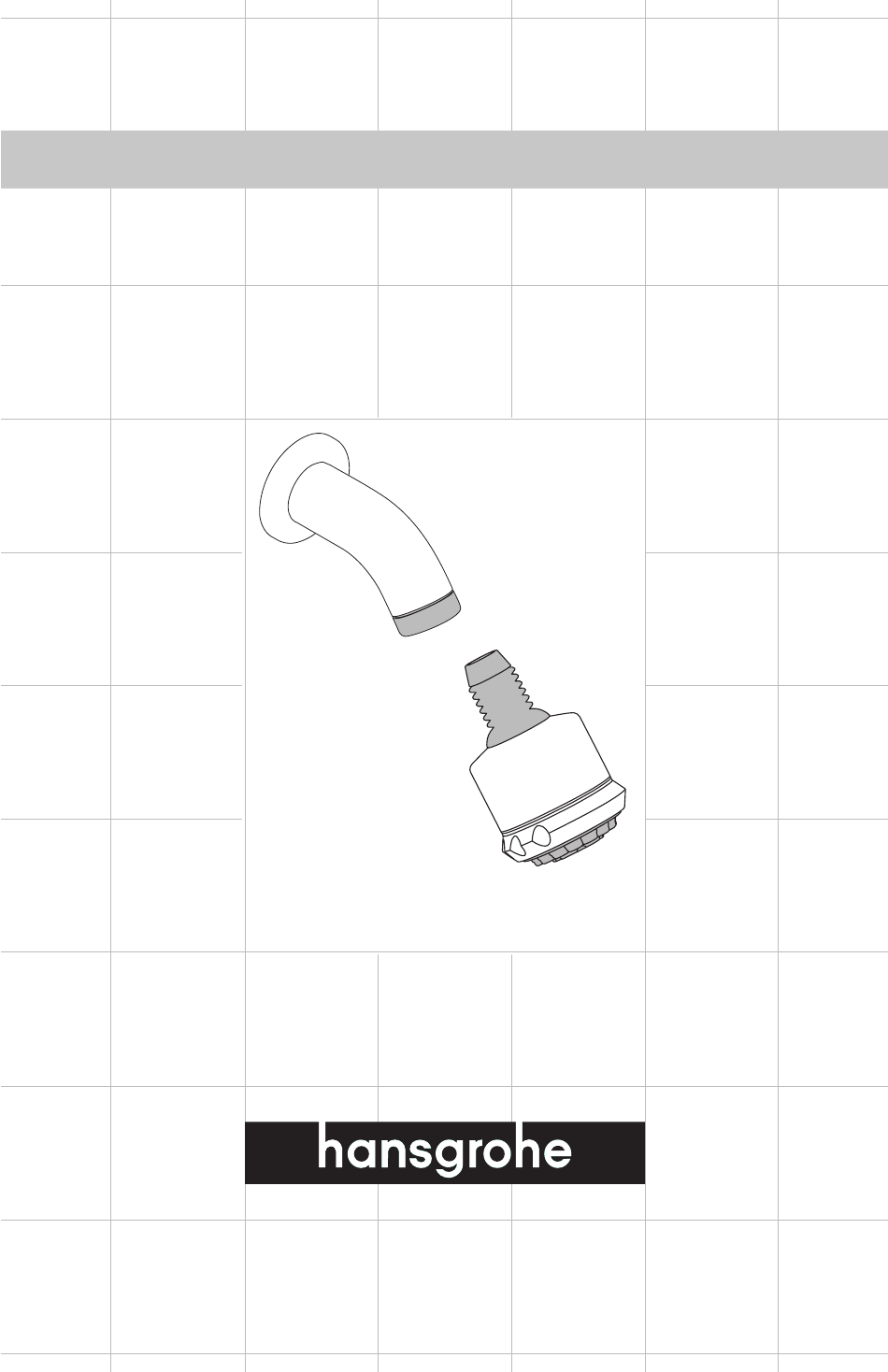

- Page 1 Installation Instructions / Warranty 27438XX1 Clubmaster 28496XX1...

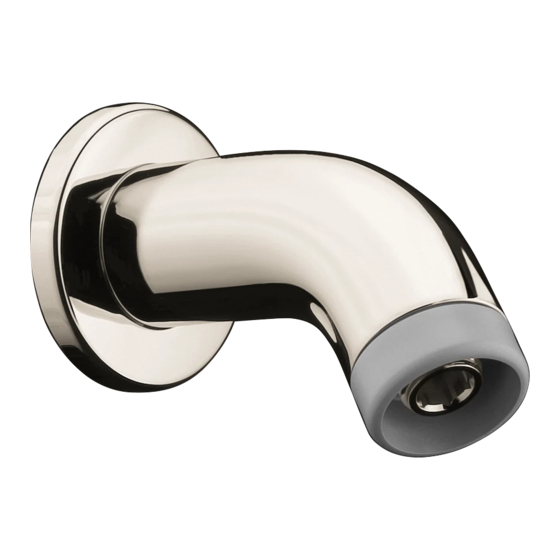

- Page 2 Clubmaster Showerhead 28496XX1 Short Cast Showerarm 27438XX1 Technical Data: Recommended water pressure 45-60 PSI Max. water pressure 90 PSI Max. flow rate 2.5 GPM Installation Considerations: • This showerhead includes a self-sealing filter gasket. The filter gasket makes Teflon tape unnecessary in most installations.
- Page 3 27438XX1 Installation Install a 1/2" NPT male nipple, extending 5/8" outside the surface of the finished wall. Seal the wall around the nipple with waterproof sealant. Failure to seal the wall can lead to possible water damage. Wrap the nipple with Teflon tape. Install the shower arm and flange.
- Page 4 User Instructions To change spray modes: Turn the face ring in the direction of the arrows to obtain the desired function: clockwise for soft aerated spray, counter-clockwise for massage. There is no "front and center" indexing position on the Clubmaster™. If the flow of water diminishes over time, remove, clean, and replace the filter gasket.
- Page 5 Rinse well with clear water. Reinstall the showerhead. Change the spray modes several times to allow the Quiclean™ pins to clear the spray channels of deposits. Rinse thoroughly with clear water.
- Page 6 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
- Page 7 LENGTH OF WARRANTY Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences. If you are a consumer who purchased the product for use primarily for personal, family, or household purposes, this warranty extends for as long as you own the product and the home in which the product is originally installed.
- Page 8 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770-360-9880 • Fax 770-360-9887 www.hansgrohe-usa.com...
