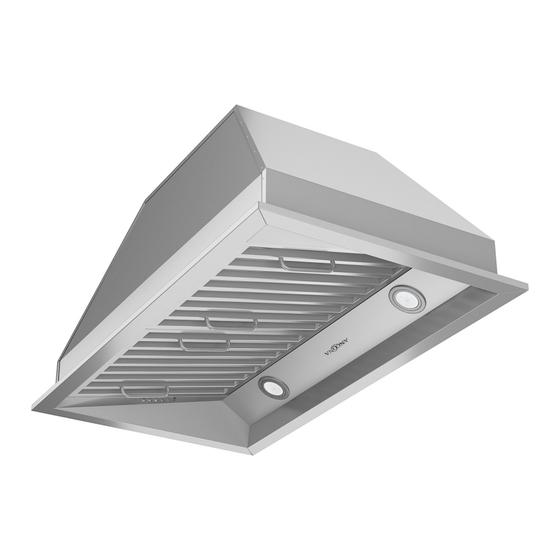

Range Hood
Pro Insert 28, 34, 48
User Manual
&
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important information
regarding installation, safety and maintenance.
Keep these instructions for future reference.
MAAN1365-04
2018-05-14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Insert 28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ancona Pro Insert 28

  • Page 1 Range Hood Pro Insert 28, 34, 48 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1365-04 2018-05-14...
  • Page 2: Before You Begin

    Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 8 to 14. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood.
  • Page 3: Table Of Contents

    Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Installation ............................8 Step 1 - Read the Safety Instructions .................... 8 Step 2 - Unpack Range Hood and Prepare Tools ................
  • Page 4: Important Safety Information

    Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur.
  • Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
  • Page 6: Included Parts

    Included Parts Range Hood 2 Filters (28 in., 34 in.) 3 Filters (48 in.) 12 + 1 mounting screws 6 mounting brackets 8 + 1 Handle Screws (28 in., 34 in.) 4 Handles (28 in., 34 in.) 12 + 1 Handle Screws (48 in.) 6 Handles (48 in.) Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material.
  • Page 7: Range Hood Dimensions

    Range Hood Dimensions 5.1” (13 cm) Ø 5.8” (14.8 cm) 1” (2.5 cm) 14.25” (36.2 cm) 13.5” (34.4 cm) 4.1” (10.5 cm) 14.9” (38 cm) Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 308 W Motor Input Power 302 W Amperage 2.69 A...
  • Page 8: Installation

    Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts.
  • Page 9: Step 5 - Venting Installation Guidelines

    Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. For the most efficient and quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 6 in. (15.3 cm) or • DO NOT terminate the vent system in an attic or other bigger round metal/aluminum vent work.
  • Page 10 Installation electric cook tops and minimum of 30-inch (76.2 cm) IMPORTANT: for gas stove tops and no higher than 30-inch (76.2 cm) • A minimum of 6 in. (15.2 cm) round or 3-1/4 x 10 in. (25.4 cm for electric cook tops. x 8.3 cm) rectangular duct (purchased separately) must be • It is important to install the hood at the proper mounting used to maintain maximum airflow efficiency.
  • Page 11: Step 6 - Preparations

    Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the centre line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall.
  • Page 12: Step 8 - Installation Of Brackets

    Installation STEP 8 Installation of Brackets • L shaped bracket mounting screws are provided for convenient installation • Using screws and L shaped brackets provided, install each L shaped bracket through pre-drilled mount holes (See fig #2). Fig #2 Due to some installation differences with custom hoods, the L brackets may not work. Before installing insert please determine if brackets will work for your installation needs.
  • Page 13: Step 10 - Connect Ductwork

    Installation • For additional support, use pre-drilled holes and mounting screws to attach side and top of the range hood. (See Fig #6 and #7). Fig #6 Fig #7 STEP 10 Connect Ductwork • Attach ductwork to damper. Secure the ductwork with duct tape to make sure joints are secure and air- tight.
  • Page 14: Step 12 - Install Filters

    Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
  • Page 15: Operation

    Operation Medium speed High speed Power Control Light control Quiet speed Low speed (On/off) This range hood is equipped with six electronic controls, baffle filters with stainless steel panels, and two or three bright LED lights. The six electronic buttons control the intensity of the Lights, Speeds (Quiet, Low, Medium and High) and Power (On/ Off). The Power Control (On/Off) offers start-up, 3-minute delay or immediate power-off. The Light Control operates independently from the Power Control (On/Off) and is not affected by the delay shutoff.
  • Page 16: Replacing The Light Pucks

    Maintenance Replacing the Light Pucks IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Make sure the range hood is unplugged or turn OFF CAUTION: PUCK MAY BE HOT, PLEASE TAKE breaker.
  • Page 17: Range Hood Assembly

    Range Hood Assembly Number Part Power Cable Hood Casing Hood Mounting Bracket Top Panel Motor Control Capacitor Bottom Panel Lights Baffle Filter Handle Baffle Filter (28 in. & 34 in: 2 pcs / 48 in: 3 pcs) Electrical Box — 17 —...
  • Page 18: Assembly

    Assembly Circuit Diagram 28 in. /34 in. 48 in. Blower assembly Number Part Motor Air Chamber Squirrel Cage Locknut Safety screen Electrical Assembly Number Part Screws (3/16” x 3/8”) Electrical Box Cover Processor Board Screws (3/16” x 3/8”) Electrical Box Base Electrical Panel Capacitor Screws (3/16”...
  • Page 19: Use And Care Information

    Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing.
  • Page 20 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 1-888-998-2011 Website: www.mrappliance.com MAAN1365-04 © 2018 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 20 —...
