- Page 1 Smart Home Kit Quick Installation Manual PSC01 Z-Wave IP Gateway PSE02 Multi Sound Siren PST02 4 in 1 sensor PAN11 Plug with Power Meter Philio Technology Corporation www.philio-tech.com...

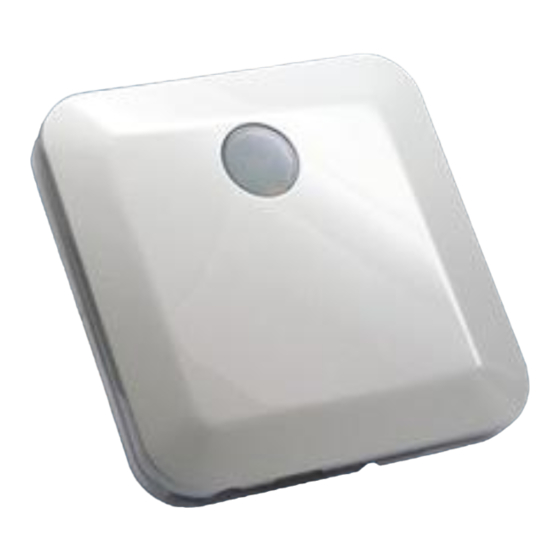

- Page 2 Z-Wave IP Gateway PSC01 the Z-Wave IP Gateway can be connected wireless or wired to the Internet and wirelessly connects all of your sensors so that you can receive notifications mobile devices also control different smart devices in your home or office.
-
Page 3: Know Your Gateway
Know your Gateway Here are the A.B.C.D. you need to know about PSC01. A. Front B. Connections Lens : logo USB slot 5Vdc Power White light LED for the Internet indications... - Page 4 Know your Gateway C. Green Lights LED indications Green LEDs indications 1. WiFi 2. Ethernet 3. Internet 4. Z-Wave 5. Power...
- Page 5 Know your Gateway Back RJ45 Reset Tamper Switch holder...
-
Page 6: Installation
Installation 1 1. Download the APP Search “Z-Wave Home Mate” Or Scan QR Code below... - Page 7 Installation 2.1 Connect PSC01 to the Router by Ethernet cable Router PSC01 Ethernet 5Vdc Power Note: when the network is built, LED light 2 on the side will flash.
- Page 8 Installation 2.2 Connect PSC01 to the Router by Press the WPS button on the Router and PSC01 PSC01 And it will build a network connection within 120 seconds. 5Vdc Power Note: the white light LED will flash when WPS is making a connection.
- Page 9 Installation 3. Add the Gateway and access the main page Add the Gateway Main page...
-
Page 10: Gateway Setting
Gateway Setting Add Gateway Customize gateway To fill up UID/ IP Address: Select either “QR Code” or “LAN Search” to locate your Gateway The default password is “888888” 888888... - Page 11 Gateway Setting Edit/Delete/Change Password Edit : edit the Gateway name Delete : delete the Gateway Change Password : change default password to personal password...
- Page 12 Gateway Setting APP basic functions Sensor: the list of sensors and its infomation Room : to create rooms and group the sensors Scene: to create different scenarios for easy use Macro: to create IFTTT (IF This Then That) Schedule : set schedule for sensors, scenes, and macros...
- Page 13 Gateway Setting Include/Exclude/Add IP cam Include : include the devices Exclude : exclude the devices Add IPCam : add IP cam (Max. 4 cams) Setting : User/App/Gateway Information...
- Page 14 4 in 1 Multi Sensor Include PST02-A 1. Remove the small black pull tab. 2. While device is in inclusion mode, click on setting icon select “Include.” Note: when plugged for the first time, it will automatically be in the inclusion mode, red light slowly flashing for 30 seconds.
- Page 15 Exclude PST02-A 2. Press tamper key on 3. Device excluded then 1. Click on the setting the device 3 times the device is in the icon and select then the red light LED inclusion mode. “Exclude”. will flash. Note: when device excluded, it will automatically be in the inclusion mode, red light slowly flashing for 30 seconds.
- Page 16 Smart Plug with Power Meter Include PAN11/PAN16 1. Plug the device into the outlet. 2. While device is including mode, click on the setting PAN11 icon and select “Include.” PAN16 Note: when plugged for the first time, it will automatically be in the inclusion mode, red light slowly flashing for 30 seconds.
- Page 17 Exclude PAN11/PAN16 3. Device excluded then 1. Click on the setting 2. Press LED key on the the device is in the icon and select plug 3 times then the inclusion mode. “Exclude”. red light LED will flash. Note: when device excluded, it will automatically be in the inclusion mode, red light slowly flashing for 30 seconds.
- Page 18 Multi Sound Siren Include PSE02 1. Plug the siren into the outlet. 2. While device is in including mode, click on the setting icon and select “Include.” Note: when plugged for the first time, it will automatically be in the inclusion mode, red light slowly flashing for 30 seconds.
- Page 19 Exclude PSE02 2. Press Tamper key on 3. Device excluded then 1. Click on the setting the back of siren the device is in the icon and select times then the red inclusion mode. “Exclude”. light LED will flash. Note: when device excluded, it will automatically be in the inclusion mode, red light slowly flashing for 30 seconds.
- Page 20 IP Camera IP Cam 1. Connect IP camera same router as PSC01 2. Click on the setting icon and select “Add IP Cam” 888888 Router Use either QR Code or LAN Search 5Vdc Power to search for your IP cam. The...
-
Page 21: Mobile App
Mobile APP Z-Wave Home Automation Easy to set up and manage with Philio full • product line Drag and Drop user interface • Grouping sensors for different rooms • Scene management • IFTTT management • Scheduling management • Notification when sensor is triggered •... - Page 22 Smart Home Kit...
- Page 23 www.philio-tech.com...
