Summary of Contents for Zephyr Essentials Breeze I AK1100 Series

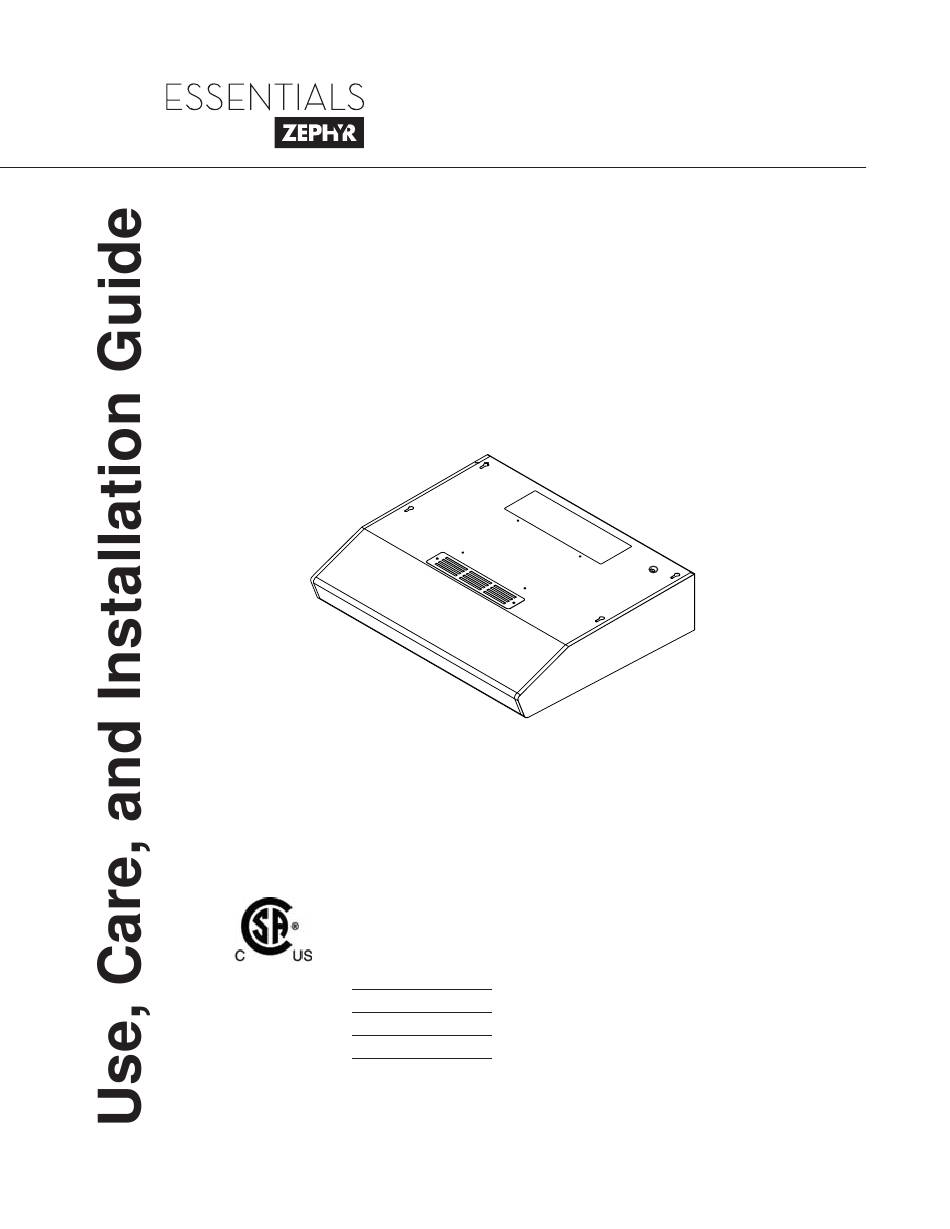

- Page 1 www.zephyronline.com Breeze I AK1124x, AK1100x, AK1136x Breeze II AK1200x, AK1236x Model number: Serial Number: Date of Purchase: Sales Dealer: FEB08.0201 © Zephyr Corporation READ AND SAVE THESE INSTRUCTIONS...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Specifi cations ............... Preparing Electrical ............ Preparing Electrical and Ducting ......Converting to Air Recirculating Mode 11-12 ....Mounting the Range Hood ......13 FEATURES &...
- Page 4 www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
-
Page 5: Operation
WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and fi... -
Page 6: Hardware Package Contents
www.zephyronline.com MODELS: BREEZE I AND BREEZE II PARTS SUPPLIED 1 - Hood 2 - Metal Mesh Filters 2 - Incandescent Light Bulbs (R16 40W) 1 - 3-1/4”x10” Rectangular starting collar with damper 1 - Hardware package HARDWARE PACKAGE CONTENTS M4 x 2” (4) M4 x 1-1/2”... - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft.
- Page 8 www.zephyronline.com Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than 32”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fi...
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certifi ed Silver Tape or Duct Tape. Some Ducting Options Roof Pitch w/ Flashing &...
- Page 10 www.zephyronline.com 35-3/4” (36”) 29-3/4” (30”) 23-3/4” (24”) 33-7/8” (36”) 27-7/8” (30”) 22-1/16” (24”) 9-1/16” elec. 10” 10-7/8” Air Recirculating Louver Plate 33-5/8” (36”) 27-5/8” (30”) 21-5/8” (24”) BACK SIDE 14-3/8” 9-1/16” elec. 10”...
- Page 11 ELECTRICAL WARNING All Electrical work must by performed by qualifi ed electrician or person with similar technical know how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances.
- Page 12 www.zephyronline.com 2. Remove cover from junction box to 1. Remove filters gain access to electrical wiring. 3. If using a cable lock, pry open the 4. If using hood in air recirculating desired electrical knockout either on mode skip steps 4 and 5. top or back of hood.
- Page 13 The following instructions are for Breeze hoods beginning with serial number prefi x 13 and later. NOTE: Skip the recirculating preparation pages if you are ducting the air out of your home. 1. Secure each of the (2) spring clips to the An air recirculating kit (optional) must be safety grille body (A).
- Page 14 www.zephyronline.com NOTE: Skip this page if you are ducting the air out of your home. 5. Remove each of the 5 screws holding 6. Remove (2) interior recirculating panels. the (2) interior recirculating panels. 7. Place louvered recirculating plate over top opening and secure using the screws previously removed.
- Page 15 electrical For Mounting Under a Kitchen Cabinet (Fig 1) 1. Select preferred duct location (vertical or horizontal). Duct opening 2. Begin installation by removing the fi lters (if installed). cutout 3. Reinforce cabinet with 1”x2” wood strips if additional strengthening is required or if cabinets are framed. duct/silver 4.
- Page 16 www.zephyronline.com Breeze I, AK11xx This switch turns the blower on and off and controls the speed selection. is off, is low speed, is medium speed and is high speed. Lights Off/Bright/Dim is off, is bright, is dim. Breeze II, AK12xx This button turns the motors on and off.
-
Page 17: Surface Maintenance
SURFACE MAINTENANCE: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. Do not use products containing chlorine bleach or orange cleaners. For heavier soil use liquid degreaser. After cleaning, you may use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. -
Page 18: Replacing Light Bulbs
www.zephyronline.com REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise to unscrew. - Page 19 TROUBLESHOOTING PROCEDURES FOR BREEZE I AND BREEZE II Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 20 www.zephyronline.com DESCRIPTION PART # Replacement Parts Light Bulb R16 40W (each) Z0B0002 - incandescent bulb included with hood Light Bulb PAR20 50W (each) Z0B0001 - optional halogen bulb Metal Filter, 24” hoods (each) 50200013 Metal Filter, 30” and 36” hoods (each) 50200012 Optional Accessories Recirculating Kit...
- Page 21 TO OBTAIN SERVICE UNDER WARRANTY: Staple your receipt here. or any Service Related Questions, please call: 1-888-880-8368 Proof of the original purchase date is needed to obtain service under the warranty. TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please keep a copy of your dated proof of purchase (sales slip) in order to obtain service under warranty.
