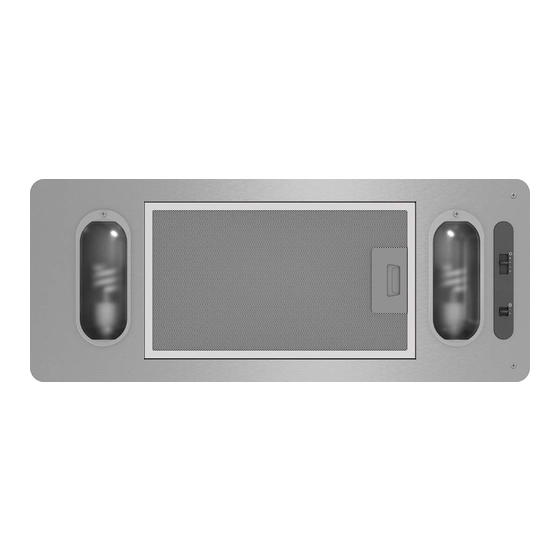

- Page 1 www.zephyronline.com Twister AK8000AS AK8000AS-ES Tornado I AK8100AS AK8000AS AK8100AS AK8000AS-ES Model number: Serial Number: Date of Purchase: Sales Dealer: SEP15.0401 © 2015 Zephyr Ventilation LLC. READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Hardware Package Contents
www.zephyronline.com MODELS: AK8000AS, AK8000AS-ES, AK8100AS PARTS SUPPLIED AK8000AS and AK8100AS 1 - Power Pack 1 - Hardware package HARDWARE PACKAGE CONTENTS Suction Cup (1) AK8000AS, AK8100AS M4 x 1-1/2” (4) M4 x 1” (4) Wire Caps (3) PARTS NOT SUPPLIED - Ducting, conduit and all installation tools - Cable connector (if required by local codes) - Optional stainless steel liner (AK08xxAS) - Page 3 Equivalent number Duct pieces Equivalent number Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft.
-
Page 4: Damage - Shipment/Installation
www.zephyronline.com Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than 36”. It is important to install the hood at the proper mounting height. Hoods mounted too low could mounted too high will be hard to reach and will If available, also refer range manufacturer’s height Min 26"... - Page 5 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Some Ducting Options side wall cap side wall cap w/ gravity damper w/ gravity damper Soffit or crawl space...
- Page 6 www.zephyronline.com 10-5/8” 5-7/8” 4-1/8” 11-13/16” 26-9/16” 27-9/16” front 27-9/16” 25-3/4” 10-5/16” 15” 1-5/16” 18-15/16” bottom side...
- Page 7 ELECTRICAL WARNING how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. Electrical Supply: This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse.
- Page 8 www.zephyronline.com CAUTION: At least two installers are ” required due to the weight and size of the hood. 1. Install optional AK08xxAS Stainless Steel Liner. Review manual included with liner for more details. 2. If no liner is used cut out an opening in the bottom of the cabinet by following the dimensions in FIG 1.
