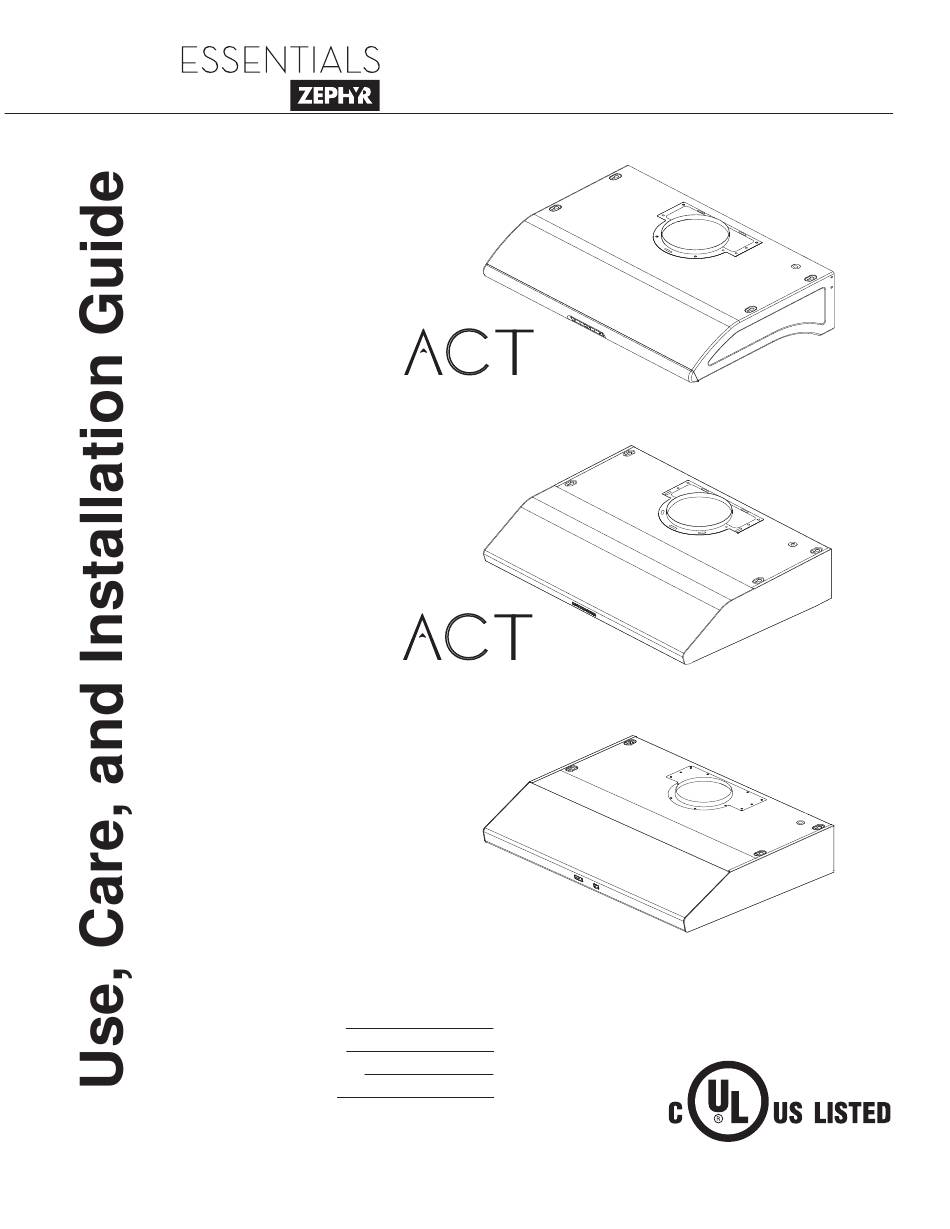

www.zephyronline.com
Typhoon
AK2100BS, B,W
AK2136BS, B,W
AK2142BS
AK2148BS
C
TM
Airflow Control Technology
Hurricane
AK2500BS, B, W
AK2536BS, B,W
C
TM
Airflow Control Technology
Cyclone
AK6500BS, B, BS, W
AK6536BS, B, BS, W
AK6542BS
Model number:
Serial Number:
Date of Purchase:
Sales Dealer:
DEC17.0301 © Zephyr Ventilation LLC.
Advertisement
Related Manuals for Zephyr Essentials Typhoon AK2100BW
Summary of Contents for Zephyr Essentials Typhoon AK2100BW
- Page 1 www.zephyronline.com Typhoon AK2100BS, B,W AK2136BS, B,W AK2142BS AK2148BS Airflow Control Technology Hurricane AK2500BS, B, W AK2536BS, B,W Airflow Control Technology Cyclone AK6500BS, B, BS, W AK6536BS, B, BS, W AK6542BS Model number: Serial Number: Date of Purchase: Sales Dealer: DEC17.0301 © Zephyr Ventilation LLC.
- Page 2 Equivalent number Equivalent number Duct pieces Duct pieces T otal length x used length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft.
-
Page 3: Damage - Shipment/Installation
www.zephyronline.com Minimum mounting height between range top to hood bottom should be no less than 24”. Maximum mounting height should be no higher than 32”. It is important to install the hood at the proper mounting height. Hoods mounted too low could hoods mounted too high will be hard to reach and If available, also refer range manufacturer’s height i n . - Page 4 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Some Ducting Options cabinet side wall cap w/gravity damper side wall cap w/gravity damper soffit or crawl space...
- Page 5 www.zephyronline.com (30”) 28 ”, (36”) 34” 1/16 (42”) 39 ”, (48“) 45 ” (30”) 11 ”, (36”) 12 ” 5/16 (42”) 12 ”, (48“) 12 ” ” 15/16 elec k / o (30”) 14”, (36”) 17” (42”) 19 ”, (48“) 22 ”...
- Page 6 (30”) 27 ” (36”) 34” (30”) 11 ” (36”) 14 ” ” 15/16 elec k / o (30”) 11 ” (30”) 29 ”, (36”) 35 ” (36”) 14 ” FRONT BACK ” ” ” SIDE...
- Page 7 www.zephyronline.com (30”) 27 ”, (36”) 33 ”, (42”) 39 ” 12” ” 15/16 elec k / o (30”) 14”, (36”) 17”, (42”) 20” ” 15/16 elec k / o 12” (30”) 29 ”, (36”) 35 ”, (42”) 41 ” FRONT BACK ”...
- Page 8 3-1/4"x10" Rectangular Vertical Ducting 1. Using a Philips-head screwdriver remove the screws and 2. Replace round vertical transition adapter with round vertical transition adapter from top of hood body. rectangular transition adapter. Do not secure to hood body yet. transition adapter. Secure rectangular adapter and rectangular collar to hood body using the previously removed screws from step 1.
- Page 9 www.zephyronline.com 3-1/4"x10" Rectangular Horizontal Ducting 2. Using a Philips-head screwdriver, remove the screws 1. Using a Philips-head screwdriver remove the screws and round vertical transition adapter from the top of the hood. 4. Replace round vertical transition adapter with 3. Typhoon ONLY. Remove the two plastic air diverter rectangular transition adapter.
- Page 10 ELECTRICAL WARNING knowledge and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances. Electrical Supply: This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse.
- Page 11 www.zephyronline.com Hood is designed for installation under a kitchen cabinet. See Fig. 1 for details. options. 2. Measure and cut out duct and electrical openings in cabinet or wall to match up with the hood. Ducting and electrical dimensions can be found on Pages 10-12. Note: Make sure duct opening is large enough to apply aluminum duct tape.
