Summary of Contents for Fulgor Milano F6DWT24FI2

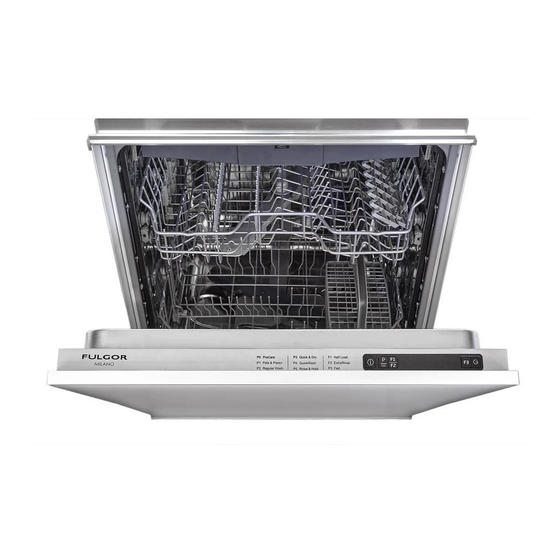

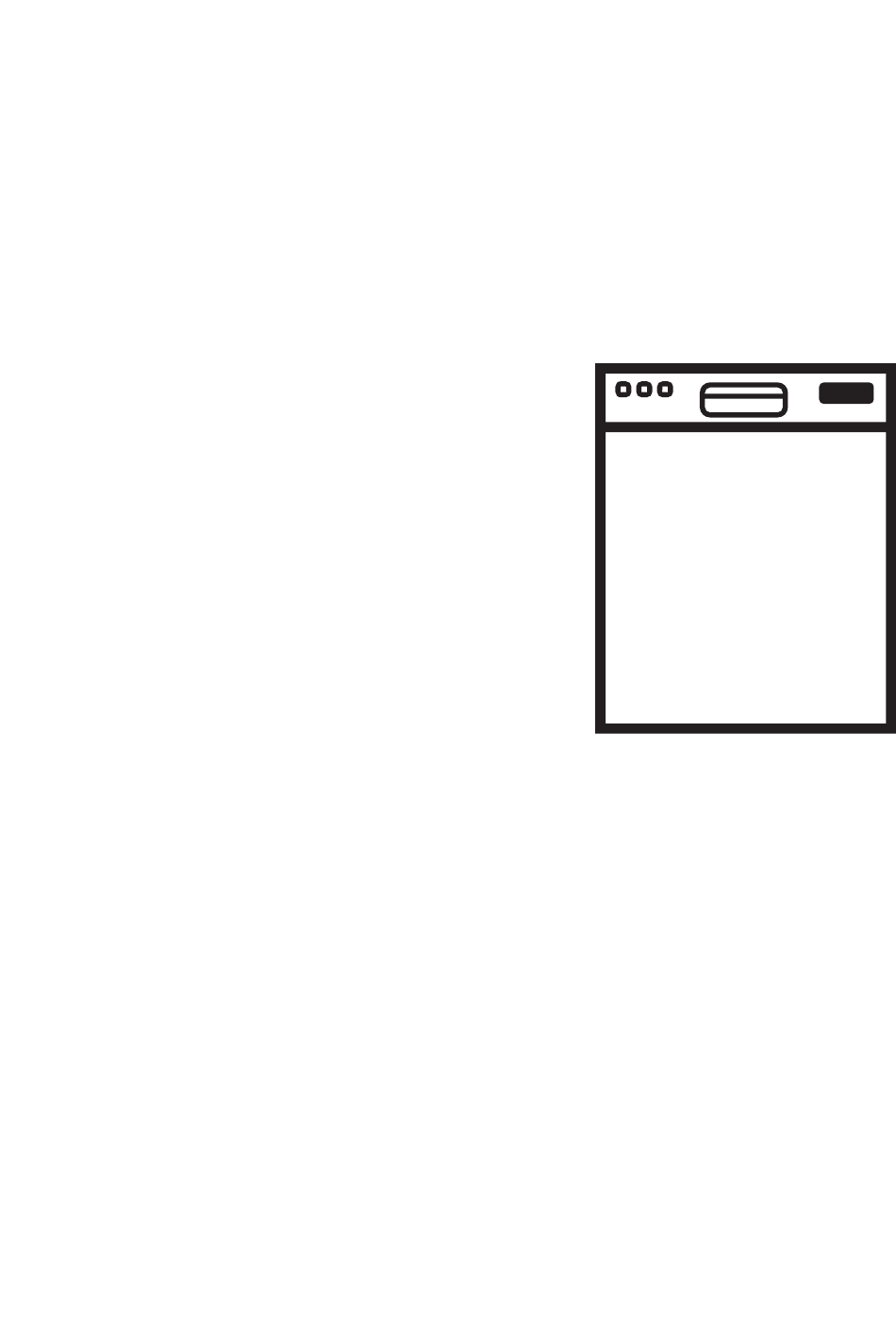

  • Page 1 Dishwasher Installation Manual F6DWT24SS2 F6DWT24FI2...
  • Page 2: Table Of Contents

    To prevent accidents, which could cause serious injury or death, as well as machine damage read these instructions before installation and / or use. INTRODUCTION 1. IMPORTANT SAFETY INSTRUCTIONS 1.1 INSPECT THE DISHWASHER 2. TOOLS WHICH MAY BE NEEDED 3. MATERIALS WHICH MAY BE NEEDED 4.
  • Page 3: Introduction

    INTRODUCTION WARNING Please read this installation manual When installing the dishwasher, follow and particularly the safety instructions basic precautions, including the completely and carefully. They will save you following: time and effort and help to ensure optimum • The dishwasher could only be converted dishwasher performance.
  • Page 4: Inspect The Dishwasher

    1.1 INSPECT THE DISHWASHER designed for an electrical supply of 120 V (volts), 60 Hz (hertz), AC, connected to a After unpacking the dishwasher and prior dishwasher-dedicated, properly grounded to installation, thoroughly inspect the electrical circuit with a fuse or breakers dishwasher for possible freight or cosmetic rated for 15 amperes.
  • Page 5: Tools Which May Be Needed

    2. TOOLS WHICH MAY BE NEEDED 3. MATERIALS WHICH MAY BE NEEDED (Additional materials may be required to comply with local codes) Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided dishwasher supply line. Elbow with 3/4” N.P.T. female thread for dishwasher side, and sized to fit your water supply line (copper tubing/compression fitting, or braided hose) on the other side.
  • Page 6: Materials Supplied

    4. MATERIALS SUPPLIED 4.1 PARTS SUPPLIED 4.4 DISHWASHER PARTS BAG 2 Parts for your dishwasher will come in several plastic bags. (MODEL DEPENDING) Check your parts bags shown In addition to the manual bag to make sure you have all the and the dishwasher parts bag parts as listed to the left.
  • Page 7: Dishwasher Specifications

    5. DISHWASHER SPECIFICATIONS TALL TUB MODELS STANDART TUB MODELS...
  • Page 8: Technical Features

    5.1 TECHNICAL FEATURES Permissible water pressure 4.35 - 145 psi (0.3 - 10 bars) Electrical connection 120 V (volts), 12 A (amps), 60Hz (hertz) Total power 1400 W (watts) Heater power 1100 W (watts) NOTICE : Because we continually strive to improve our products, we may change our specifications and design without prior notice.
  • Page 9: Enclosure Preparation

    6. ENCLOSURE PREPARATION 6.1 ELECTRICAL PREPARATION WARNING The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated for 15 amperes. 6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS WARNING Dishwasher must be secured to adjacent cabinetry using the mounting brackets provided.
  • Page 11 (+50mm) Place the two mounting brackets into the top corners of the dishwasher. Fix the mounting brackets (A) to the top corners of the dishwasher, with the screws supplied. Bend sides of mounting brackets (B) in order to fix from sides (if necessary). TALL TUB MODELS ONLY Tighten the plugs on both sides of your machine (v)
  • Page 12: Adjusting Height

    6.3 ADJUSTING HEIGHT If the height of the enclosure is 337/8” to 357/8” (861 mm - 911mm) adjust supports as shown in the figure. Supplied (4) Adjust the front foot level with the adjusting wrench to balance and raise the dishwasher to the enclosure height.
  • Page 13: Preparing The Water Connection (A)

    6.5 PREPARING THE WATER CONNECTION (A) Install an easily accessible shut-off valve (not supplied) in the water supply line. All solder connections must be made before the water line is connected to the dishwasher’s water inlet valve. Water can also be supplied to the dishwasher by using a flexible braided hose line.
  • Page 14 NOTICE : • Either one of the above methods must be used or the dishwasher will not operate properly. • A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher.
  • Page 15: Steam Protection Foil

    6.7 STEAM PROTECTION FOIL Steam will form inside the dishwasher during operation. At the end of the cycle, when the dishwasher door is opened, it is required to use a steam protection foil to prevent any steam from collecting on the underside of the counter top. 6.6.2 FITTING THE PROTECTION FOIL Before applying the steam protection foil to the underside of the countertop, clean the area with...
  • Page 16: Placement Of Dishwasher Into The Opening

    7. PLACEMENT OF DISHWASHER INTO THE OPENING Now place the dishwasher into the opening and get ready to connect all hoses and electrical connections. CAUTION Make sure all hoses are pulled through the side opening of the cabinet, no hoses are kinked and all slack is taken out as shown in the above figure.
  • Page 17 7.1.2 WATER SUPPLY CONNECTION • The access hole of the supply cord to the Water supply may be connected to the installation compartment must be smooth dishwasher in one of two ways: and rounded and it must be large enough •...
  • Page 18: Readjusting Foot Levels

    7.2 READJUSTING FOOT LEVELS Now that the dishwasher is in the cabinet you must readjust the feet to bring the dishwasher up to the required height and attach it underneath the countertop. 1. Readjust the front foot levels with adjusting wrench to balance the dishwasher and raise it up under the countertop, make sure the unit is level.
  • Page 19 TALL TUB MODELS ONLY Open the fixing part on the Toe Kick(p). (A) Place it on the slots, which are on the brackets fixed before, and adjust the height (max. 40 mm). (B) Close the fixing part on the Toe Kick. (C)
  • Page 20: Fixing The Cabinet To The Counter

    7.4 FIXING THE CABINET TO THE COUNTER STANDART TUB MODELS...
  • Page 21 TALL TUB MODELS...
  • Page 22: Preparing The Timber Door

    7.5 PREPARING THE TIMBER DOOR Mid. Point Mid. Point Weight (max) 9 Kg / 19 lbs Height (h) : Height of the wooden door 30” (760mm) Tall Tub Models Only Height (h) : Height of the wooden door 28” (720mm) Standart Tub Models Only Width (w) : 23 ¼”...
  • Page 23: Preparing The Product Door

    7.6 PREPARING THE PRODUCT DOOR...
  • Page 24: Installing The Timber Door

    7.9 INSTALLING THE TIMBER DOOR 7.10 FIXING THE TIMBER DOOR...
  • Page 25: Fixing The Timber Door

    7.11 FIXING THE TIMBER DOOR (yy) Ø 4 x 43mm 7.12 ADJUSTING THE KICK PLATE • Check whether the bottom of the door hits the toe kick of the kitchen cabinet (A). • If the door hits the toe kick cut the necessary section out of the toe kick (B).
  • Page 26: Connection

    7.13 CONNECTION ~ 1500 ~ 1800 ~ 2000...
  • Page 27: Installer Checklist

    8. INSTALLER CHECKLIST Notice : Your installer must have completed and • If your dishwasher is not operating checked the following: properly after following these steps: • The dishwasher is square and level. Contact your dealer to schedule an • The dishwasher is fastened securely to authorized service agent to inspect your the cabinetry.
