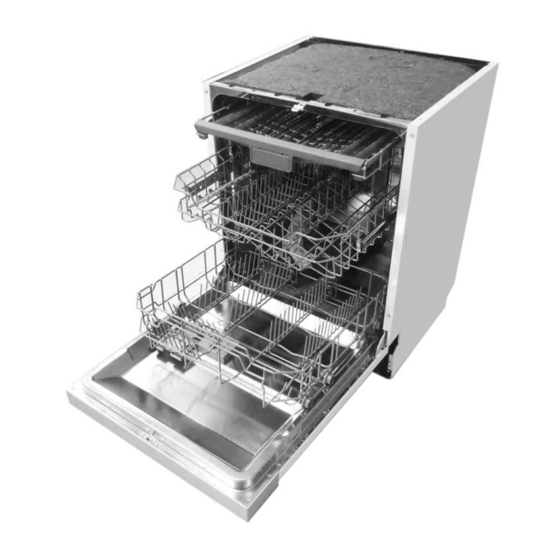

Fulgor Milano DWI8011 Instruction Manual

14 place settings, alt function
Hide thumbs

Advertisement

Quick Links

Download this manual
DWI8011
14 place settings
Alt function
www.fulgor.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the DWI8011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fulgor Milano DWI8011

Summary of Contents for Fulgor Milano DWI8011

  • Page 1 DWI8011 14 place settings Alt function www.fulgor.com.au...
  • Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door,press the On/Off button to switch on the appliance . With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).

  • Page 3: Table Of Contents

    Dear Customer, This appliance is in tended to be used in household and similar applications such as: -staff kitch en areas in shop s, offices and other working environme nts; Control Panel...........2 -farm hous es; Dishwash er Fe atures........2 -by clients in hotels, motels and othe r residential type environments;...
  • Page 4 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of an electric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
  • Page 5 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Dual zone 1.Display Win dow: Program ,fill rinse a id, 3.Delay Button : To Press the button to delay.You can wash remaining time, d elay time , fa ult codes and etc delay the start of washing from 1 to 24 hours 4.

  • Page 6: A F Ill The Rinse Aid Dispenser

    Before using your dishwas her for the first time: Fill th e rinse a id dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks.
  • Page 7 Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to repla ce the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4".
  • Page 8 Amount of Detergent to Use Detergent powder Detergent tablet If th e lid is close d: press rele ase button. The lid will spring ope n. Always add the dete rgent just before starting each wash cycle. Only use branded detergent aid for d ishwash er. Dishwasher detergent is corrosive! Take care to keep it ou t of reach of c hildren.
  • Page 9 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.

  • Page 10: Ba Skets

    The u pper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clea n ite ms are to be placed into the lo wer tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, se rving dishes and and shallow pans (as long as they are not too dirty).
  • Page 11 Cutlery basket has 5 positions: Mode 1 Position one: lift the left basket up, both left and right baskets are slanting. Mode 2 Position two: adjust the left basket to lower position, left basket is flat and right basket is slanting. Mode 3 Position three: lift the right basket up, both left and right baskets are flat.
  • Page 12 Means: need to fill rinse into the Rinse-Aid Dispenser. ℃ Pre-wash(50 ) For the heaviest soiled ℃ Wash (65 loads, such as pots, pans, Intensive 5/27.5g Rinse casserole dishes and dishes 16.5 (Or All Rinse that have been sitting with ℃...
  • Page 13 Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash wa ter. If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the Detergent "...
  • Page 14 The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.
  • Page 15 Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.

  • Page 16: Installation Preparation

    After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.

  • Page 17: Aesthetic Panel's Dimensions And Installation

    Please carefully read the installation instruction. Illustrations of cabinet dimen sions and installa tion position of the dishwasher Preparations should b e made befo re moving the dishwasher to the installation place. Choose a place near the sink to facilita te the installation of inlet and drain hoses (see figure 1).
  • Page 18 2 Install the hook on the aesthet ic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). Af ter positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) .

  • Page 19: Tension Adjustment Of The Door Spring

    ● Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5).

  • Page 20: Dishwasher Installation Steps

    Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs.
  • Page 21 Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When leveling the dishwasher, please pay attention not to let the dishwasher tip over.
  • Page 22 The a ppliance mus t be connected to th e water mains using n ew hose-sets. The o ld hose-sets sho uld not be re used. Wate r pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

  • Page 23: Start Of Dishwasher

    Start of Dishwasher Start of Dishwasher The following things should be checked before starting the dishwasher. The dishwasher is level and fixed properly The inlet valve is open The power plug is correctly plugged in The power is switched on The inlet and drain hoses are connected All packing materials and printings should be taken out from the dishwasher Attention:...
  • Page 24 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker tripped appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely.
  • Page 25 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 26 If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Height : 815mm Width : 598 mm Depth :...
