Soleus Air DSJ-50EIP-01A Operating Instructions Manual

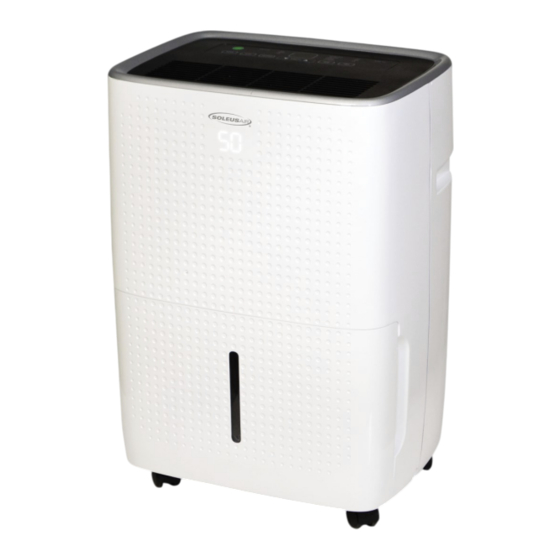

Portable dehumidifier with internal pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Portable Dehumidifier with Internal Pump
Portable Dehumidifier with Internal Pump
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
50 Pint
DSJ-50EIP-01A
600538
V01212022
Capacity Rated Using Department of Energy Test Procedure
Dehumidifier must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSJ-50EIP-01A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Soleus Air DSJ-50EIP-01A

Summary of Contents for Soleus Air DSJ-50EIP-01A

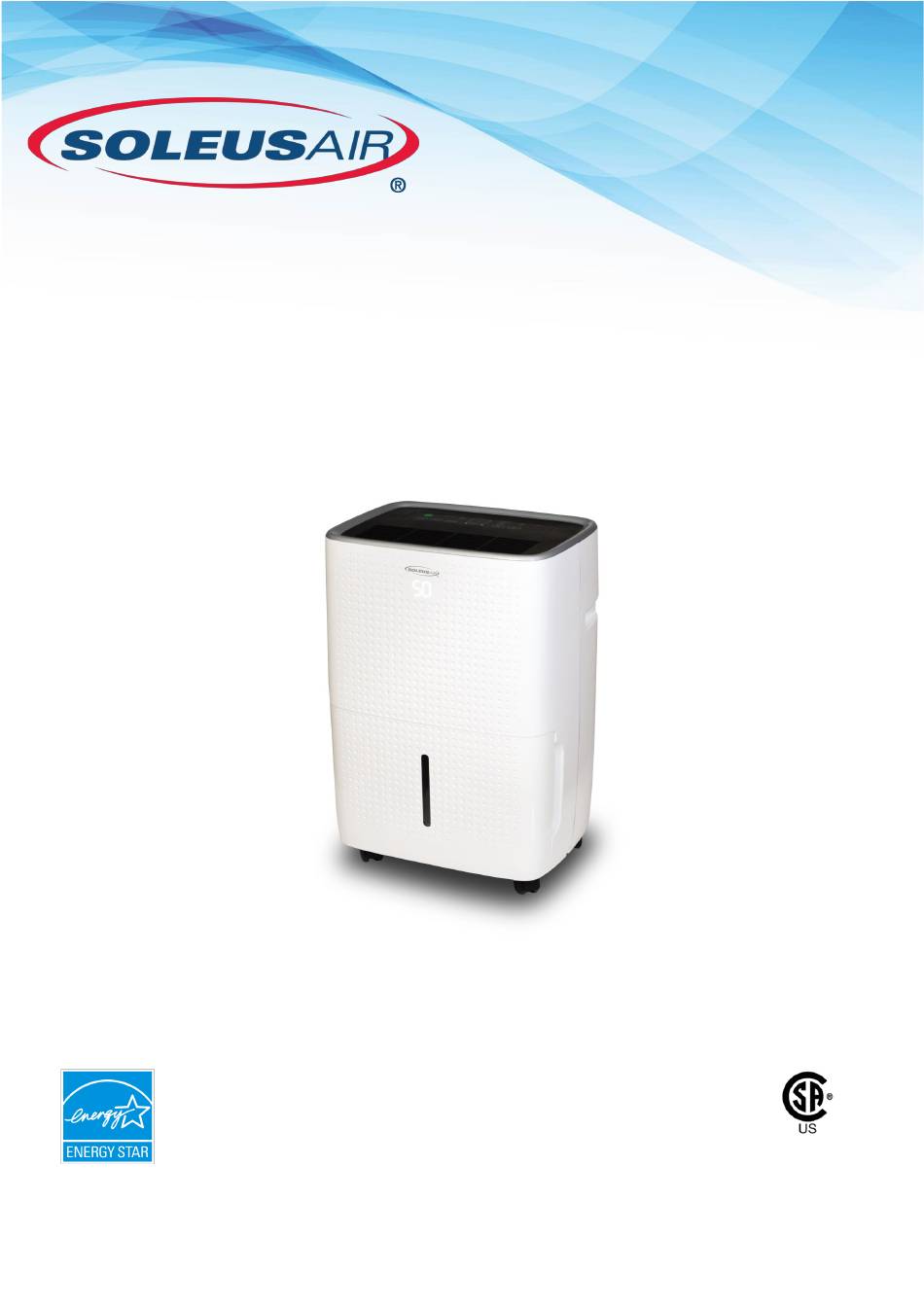

  • Page 1 Portable Dehumidifier with Internal Pump Portable Dehumidifier with Internal Pump OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS 50 Pint DSJ-50EIP-01A 600538 V01212022 Capacity Rated Using Department of Energy Test Procedure Dehumidifier must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended.

  • Page 2: Purchase Information

    PURCHASE INFORMATION Thank you for choosing a Soleus Air Portable Dehumidifier. This Owner’s Manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Dehumidifier.
  • Page 3 Pints of moisture removed per every the bucket when operating at full 24 hour period capacity during a 24 hour period DSJ-50EIP-01A 50 Pints 3 Times LESS MOISTURE BEING REMOVED OVER TIME IS A GOOD THING! Using a dehumidifier will cause your area to maintain a more comfortable humidity level. Over time, this humidity level will become more and more stable.

  • Page 4: Package Contents

    (1) Portable Dehumidifier (1) Operating Instructions (1) Pump Drain Hose Kit—Hose, Adapter, and Gasket (Adapter included on top of bucket lid) SPECIFICATIONS Model Number DSJ-50EIP-01A Dehumidifying Capacity (DOE Rating) 50 Pints per day Power Consumption (Watts) 525 Watts Air Flow Volume (High/Low/Quiet)

  • Page 5: Product Features

    PRODUCT FEATURES Removes up to 50 pints of moisture from the air every 24 hours. This is not the bucket size. Adjustable humidistat for precise humidity control. Mirage Display shows ambient humidity level from across the room. Operates at temperatures down to 41°F. Perfect for basement use in the winter.

  • Page 6: Control Panel

    CONTROL PANEL POWER Child-Lock BUTTON Bucket Full LED Indicator LED Indicator Clean Filter MyHome Mode Power On Fan Speed LED Indicator Timer LED Indicators LED Indicator LED Indicators LED Indicator PUMP FILTER Status MIRAGE PRESET PUMP TIMER BUTTON MODE DISPLAY SPEED BUTTON BUTTON...
  • Page 7 OPERATING INSTRUCTIONS Dehumidifier must be upright for 24 hours prior to operating. This ensures that the compressor will function as intended. CONTROL PANEL OPERATING INSTRUCTIONS 1) When first operating the dehumidifier, run it in Continuous mode for 24 hours. 2) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER button once more to turn the unit off.
  • Page 8 OPERATING INSTRUCTIONS 9) Bucket Full - When the water bucket is full of water, the unit will automatically shut off, make a beeping noise, and the Bucket Full Indicator will light up. The dehumidifier will not function until the water bucket is emptied and placed back inside the unit.
  • Page 9 OPERATING INSTRUCTIONS 10) Internal Pump Mode- The internal pump allows the unit to operate without having to empty the buck- et. To install the Pump Drain Hose Kit, remove the drain cap on the back of the unit. Insert the included gasket into the Drain Adapter, then force the Drain Hose onto the Drain Adapter and turn clockwise onto the garden hose nozzle on the back of the unit as pictured below.

  • Page 10: Continuous Drainage

    CONTINUOUS DRAINAGE Garden Hose Installation Setup Water can be automatically emptied by attaching a hose to the continuous drainage port on the back of the de- humidifier. This will allow the unit to run continuously (depending on the selected humidity level) without having to empty the water bucket.

  • Page 11: Choosing A Location

    CHOOSING A LOCATION A Dehumidifier operating in a basement will have little or no effect in drying out an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. Do not use outdoors.

  • Page 12: Maintenance

    MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an elec- trical outlet prior to performing any maintenance on the unit. Clean or Replace Filter - The Clean Filter indicator will illuminate every 250 hours of operation as a reminder to clean the filter.

  • Page 13: Troubleshooting

    TROUBLESHOOTING Problem Possible Causes Solutions Dehumidifier does not start The dehumidifier is unplugged. Make sure the dehumidifier’s plug is pushed completely into the outlet. The fuse is blown / circuit break- Check the house fuse / circuit breaker box and replace fuse or er is tripped.
  • Page 14 TROUBLESHOOTING Problem Possible Causes Solutions Water on the floor Hose connection may be loose. Check the hose connection. See the CONTINUOUS MODE- GARDEN HOSE INSTALLATION AND SET UP Section on Page 10. Hose is attached but not draining Disconnect the hose if using the bucket or place the hose near into a drain.
  • Page 15 SELF-DIAGNOSING CODES Self- Diagnosing Description Resolution Code Compressor Overheat Protec- Please call Customer Service at 833-669-9998 tion Condenser Overheat Protection Please call Customer Service at 833-669-9998 Humidity Sensor Malfunction Please call Customer Service at 833-669-9998 NOTE: The internal pump is designed to be used with the included plastic drain tube with drain adapter and will not operate with a garden hose or any other tubing.

  • Page 16: Limited Warranty

    LIMITED WARRANTY One Year Limited Warranty JHS INC. warrants the accompanying Dehumidifier to be free of defects in material and workmanship for the applica- tions specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
