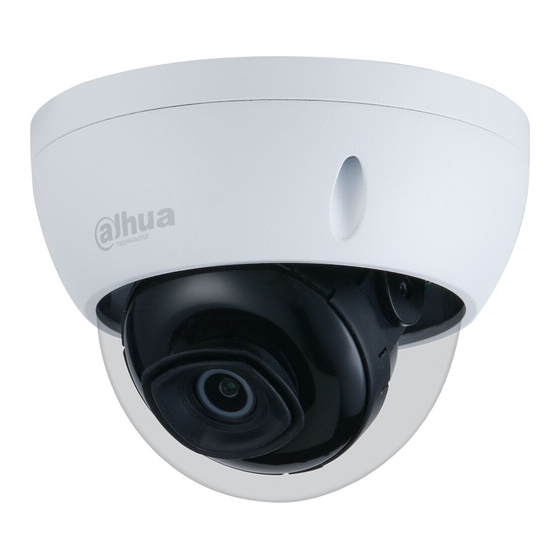

- Page 1 N82AL32 8MP Fixed Network Dome Camera Quick Installation Guide V1.0.1 Dahua Technology USA Inc.
-
Page 2: Foreword
Foreword General This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting for a Dahua Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. - Page 3 About the Guide This user guide has been compiled with great care and the information it contains has been thoroughly reviewed and verified. The text was complete and correct at the time of printing. This guide may be periodically ...
- Page 4 Legal Notices Copyright This user guide is ©2020, Dahua Technology USA Inc. This user guide is the intellectual property of Dahua Technology USA Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered...
-
Page 5: Important Safeguards And Warnings
Important Safeguards and Warnings This chapter describes the contents covering proper handling of the device, hazard prevention, and prevention of property damage. Read these contents carefully before using the device, comply with them when using, and keep it well for future reference. Installation and Maintenance Professionals Requirements All installation and maintenance professionals must have adequate qualifications or ... - Page 6 If the unit is damaged and requires service, unplug the unit from the main AC power supply and from the PoE supply and refer to qualified service personnel. Damage may include, but is not limited to: The power supply cord or plug is damaged. Liquid has spilled in or on the unit.
- Page 7 Operation and Maintenance Requirements Do not touch the heat dissipation component of the unit. This part of the unit is hot and may cause a burn. Do not open or dismantle the device; there are no components that a user can fix or ...
-
Page 8: Cybersecurity Recommendations
Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity Change Passwords and Use Strong Passwords The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible. - Page 9 Change ONVIF Password Older IP camera firmware does not automatically change the ONVIF password when the system credentials are changed. Update the camera’s firmware to the latest revision or manually change the ONVIF password. Forward Only Ports You Need ...
- Page 10 Connect IP Cameras to the PoE Ports on the Back of an NVR Cameras connected to the PoE ports on the back of an NVR are isolated from the outside world and cannot be accessed directly. Isolate NVR and IP Camera Network ...
-
Page 11: Table Of Contents
Table of Contents Foreword ............................... I Important Safeguards and Warnings....................IV Cybersecurity Recommendations ....................VII Table of Contents ..........................X 1 Overview ............................1 Parts List ..........................1 Dimensions..........................1 Cables and Connectors ......................2 2 Installing the Camera ........................3 Preparing for Installation ......................3 Unpacking .......................... -
Page 12: Overview
Overview The Dahua 5 MP Starlight camera offers Smart Motion Detection for improved alarm accuracy from intrusion and tripwire functions. The camera is ideal for a host of diverse applications — Starlight, True Wide Dynamic Range, and IR illumination allow the camera to operate in any lighting condition. -
Page 13: Cables And Connectors
Cables and Connectors Cable type might vary with device. Waterproof all cable joints with insulating and waterproof tape to avoid short circuit and water damage. Ref. Port Name Connector Description Connect to standard Ethernet cable. Note: Certain devices support Power over Ethernet. Network Port RJ-45 Check the specific device to determine if the device... -
Page 14: Installing The Camera
Installing the Camera This section details installing the camera to a wall or to a ceiling. Note that the wall or ceiling must be capable of supporting a minimum of three times the weight of the camera and a bracket (if used). Preparing for Installation Make sure the mounting surface is strong enough to hold at least three times the total ... -
Page 15: Installing An Sd Card
Installing an SD Card Disconnect power to the camera. -
Page 16: Using The Waterproof Ethernet Connector
Remove the three captive screws from the camera housing. Lift the SD Card cover Gently insert the SD card into the slot until it clicks in place and replace the cover. Press the Reset button for 10 seconds to reset the device. Using the Waterproof Ethernet Connector Attach the waterproof network connector if the camera is used outdoors. -
Page 17: Mounting The Camera
Place the wide side of the rubber ring onto the end of the network cable extending out from the camera. Pull the waterproof cable end without the Ethernet connector through the body of the Waterproof Connector. Thread the cable through the Fixing Rubber Ring and the Waterproof Locking Cover. -
Page 18: 2.5.1 Mounting To A Wall: Cables Through Surface
2.5.1 Mounting to a Wall: Cables through Surface 2.5.2 Mounting to a Wall: Cables through Camera Base Conduit... -
Page 19: Adjusting The Viewing Angle
Adjusting the Viewing Angle Loosen the three captive screws from the camera housing. Loosen the screw on the gimbal to position the direction and angle of the camera. Then tighten the screw. Replace the housing and tighten the three captive screws. -
Page 20: Network Configuration
Network Configuration Initialize the device configure the IP setting with the Dahua ConfigTool or via the device’s web interface. Device initialization is available on select models, and it is required at first use and after device is being reset. Device initialization is available only when the IP addresses of the device (192.168.1.108 ... -
Page 21: Modifying The Ip Address
Set and confirm the password of the devices, and then enter a valid email address. Click Next. Select the options according to your needs and then click OK. Click Finish. Modifying the IP Address Modify the IP address of one or multiple devices at one time. This section provides ... -
Page 22: Connecting To The Dmss App
Click OK. Connecting to the DMSS App Install the free mobile app on your smart phone: Apple App Store: DMSS Google Play Store: DMSS Tap the DMSS icon to open the app. Tap the Device icon at the bottom of the screen. Tap the “+”... - Page 23 Select Wired Camera. Scan the QR code on the the back or bottom of the device. If the QR code does not work, tap Manually enter SN. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.
- Page 25 Dahua Technology USA 23 Hubble Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Support: 877-606-1590 Sales: sales.usa@dahuatech.com Support: support.usa@dahuatech.com © 2020 Dahua Technology USA. All rights reserved. Design and specifications are subject to change without notice.
