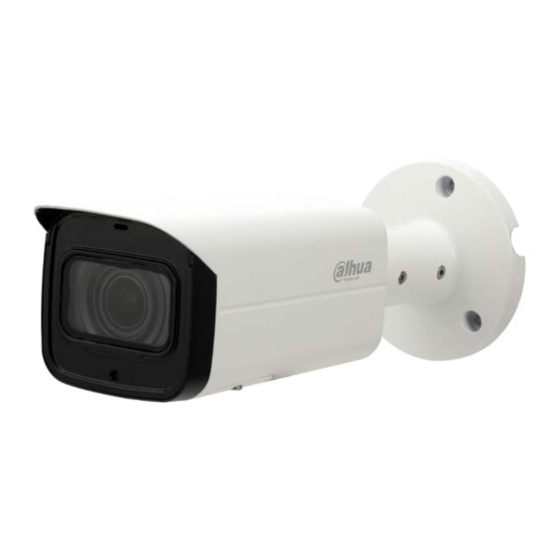

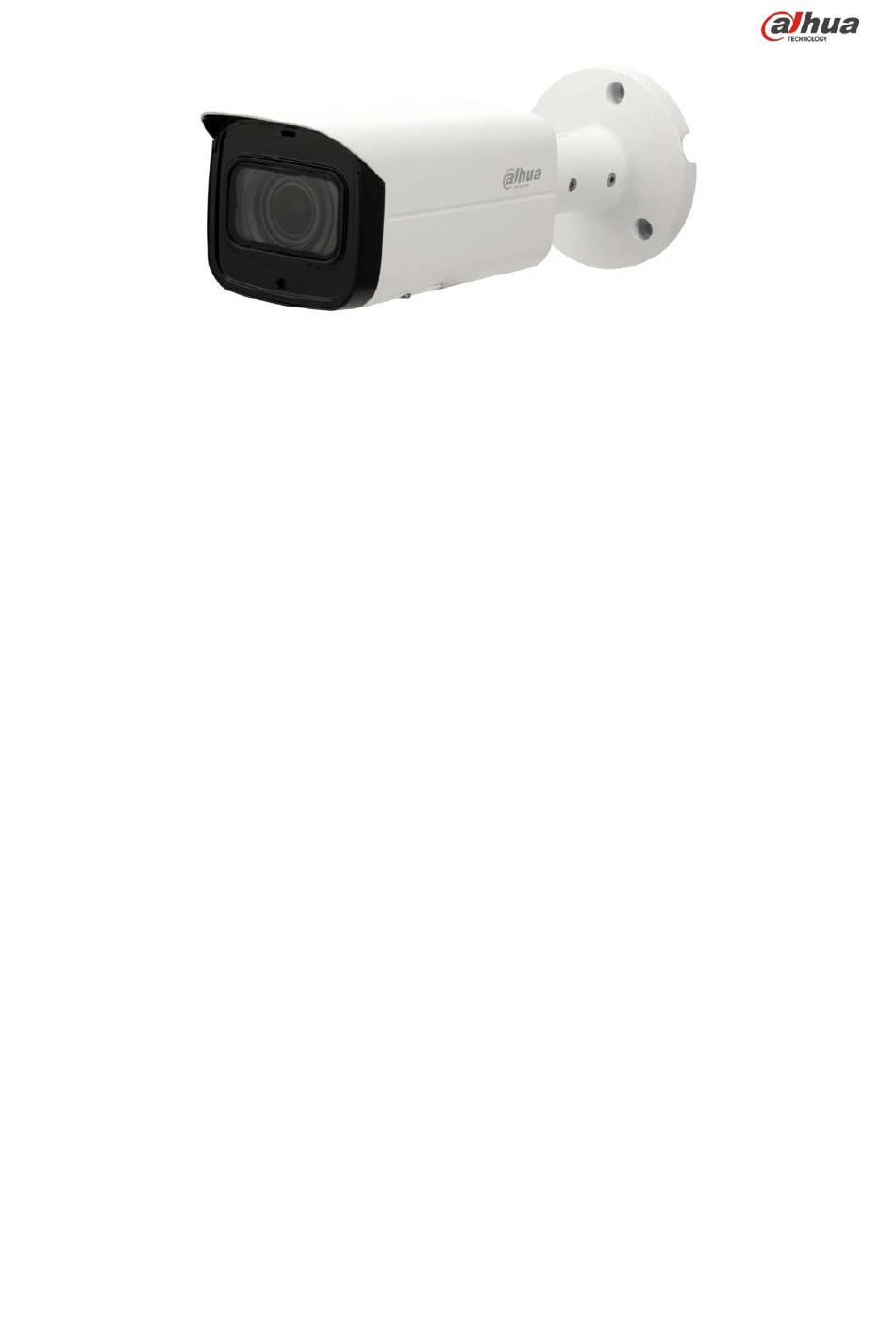

- Page 1 5 MP Vari-focal Bullet Network Camera N52BF5Z Quick Start Guide Version 1.0.1 Dahua Technology USA Inc.
-
Page 2: Table Of Contents
Table of Contents Welcome........................1 Important Safeguards and Warnings ..............1 Electrical safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............3 Warnings ......................3 FCC Information ....................4 FCC compliance： .................... 4 Legal Notices ....................4 Copyright ...................... -
Page 3: Welcome
1 Welcome This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of the Dahua Multi-Sensor Panoramic Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit. -
Page 4: Environmental Precautions
• If the unit is damaged and requires service, unplug the unit from the main AC power supply and from the PoE supply and refer to qualified service personnel. Damage may include, but is not limited to: • The power supply cord or plug is damaged. •... -
Page 5: Operation And Daily Maintenance
Operation and Daily Maintenance • Do not touch the heat dissipation component of the unit. This part of the unit is hot and may cause a burn. • Do not open or dismantle the device; there are no components that a user can fix or replace. Opening the unit may cause water leakage or expose components to direct light. -
Page 6: Fcc Information
1.3 Legal Notices Copyright This user guide is ©2017, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered... -
Page 7: Disclaimer
1.4 Disclaimer • This user guide has been compiled with great care and the information it contains has been thoroughly reviewed and verified. The text was complete and correct at the time of printing. This guide may be periodically updated to reflect changes to the product or to correct previous information and the content of this guide can change without notice. -
Page 8: Unpacking
2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts listed below are included. If an item is missing, contact customer support or your local representative. -
Page 9: Installation And Configuration
3 Installation and Configuration 3.1 Cable Connections Figure 3-1 Port Name Function Connector Notes Power port. Input 12 VDC power supply. Power Power Input Port Use in accordance with device label instructions. Not available on this model. Connect to standard Ethernet cable. Note: Certain devices support Power over Network Port RJ-45... -
Page 10: Framework And Dimensions
3.2 Framework and Dimensions The following figures show the dimensions of the device in mm [in.]. These images are intended as a reference only. Figure 3-2... -
Page 11: Device Installation
4 Device Installation This section details installing the camera to a wall or to a ceiling. Note that the wall or ceiling must be capable of supporting a minimum of three times the weight of the camera and a bracket (if used). Warning: DO NOT connect the camera to the power supply during installation. - Page 12 5. Attach the waterproof network connector if the camera is used outdoors. Figure 4-2 a) Place the wide side of the rubber ring onto the end of the network cable extending out from the camera. b) Pull the waterproof cable end without the Ethernet connector through the body of the Waterproof Connector.
-
Page 13: Network Configuration
5 Network Configuration Dahua IP cameras feature a built-in Web interface to control all aspects of camera operation. This section includes details about the supported network protocols, configuring IP addresses, and configuring alarms and local recording options. Refer to the camera’s Operations Manual for full details. -
Page 14: Modifying The Ip Address
5.2 Modifying the IP Address To properly configure the camera for your network, you need the following information: • Camera IP address – This address is an identifier for the camera on an IP network. For example, 140.11.2.115 is valid syntax for an IP address. •... -
Page 15: Accessing The Web Interface
6. Click the Net icon at the top of the ConfigTool. 7. Modify the IP Address and any other applicable network parameter. 8. Click Save to finish modification and store the modified network parameters. Figure 5-2 5.4 Accessing the Web Interface Each camera can be accessed directly from the Internet Explorer Web browser. - Page 16 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
