Summary of Contents for Bodyworx L7200

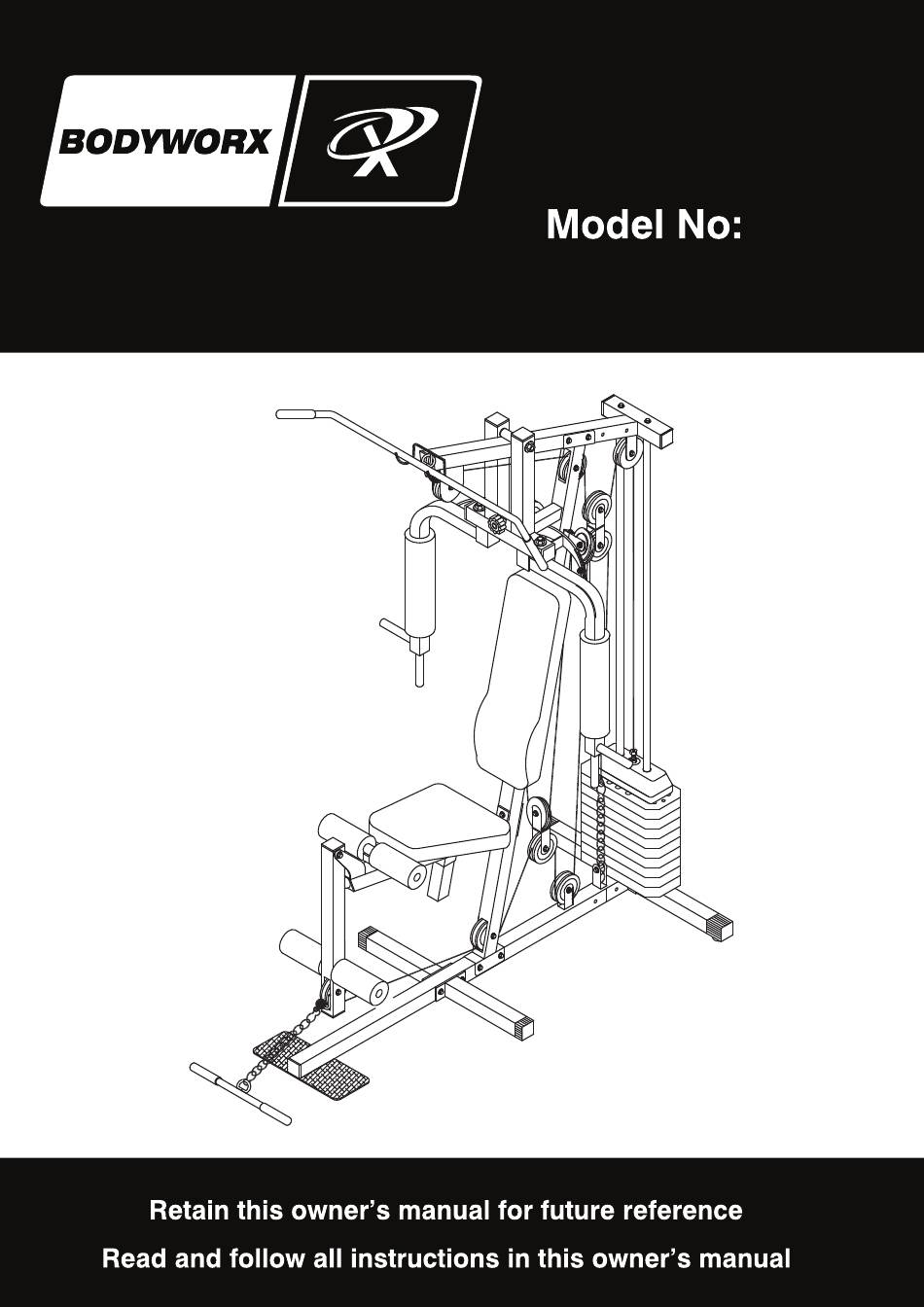

- Page 1 HOME GYM L7200...
- Page 3 PART LIST PART NO: DESCTIPTION Q’TY MAIN BASE GUIDE ROD LEFT BASE RIGHT BASE SELECTOR SHAFT TOP PLATE WEIGHT STACK RUBBER DOUNT VERTICAL BEAM SEAT ASSEMBLY UNIT TOP CROSS BEAM SEAT ASSEMBLY UNIT LEG EXTENSION/ARM CURL BAR PRESS BAR LEFT PEC DECK ARM RIGHT PEC DECK ARM PRESS PIN SEAT...
- Page 4 PART LIST PART NO: DESCTIPTION Q’TY PLASTIC BUSHING 1” ROUND END CAP 50MM SQUARE END CAP RUBBER END CAP HANDLE PIPE PIN FOR WEIGHT SATCK 38MM SQUARE END CAP PRESS BAR SHAFT QUICK PIN M10*45mm HEX BOLT M12*80mm HEX BOLT M10*75mm HEX BOLT M8*40mm...
- Page 5 STEP 01 1. PLACE RUBBER CAP (42) INTO BOTH ENDS OF LEFT BASE (03) 2. INSERT GUIDE RODS (02) TO LEFT BASE (03) 3. ATTACH MAIN BASE (01) TO LEFT BASE (03). FASTEN ALL BOLTS BY USING TOOL. 4. ATTACH VERTICLE BEAM (10) TO MAIN BASE (01).
- Page 6 STEP 02 1. ATTACH THE RUBBER DOUNT (09) INTO THE GUIDE ROD (02). 2. SLIDE THE WEIGHT PLATE (08) AND TOP PLATE (06) OVER GUIDE ROD (02). GROOVE FOR SELECTOR PIN ON WEIGHT PLATES SHOULD FACE DOWN 3.INSTALL 1”ROUND BUSHING (38) INTO THE SELECTOR SHAFT (05). WITH PIN (47) THEN ATTACH THE SELECTOR SHAFT (05) INTO THE TOP PLATE (06) 4.
- Page 7 STEP 03 1. PLACE 50MM SQUARE CAP (41) INTO BOTH ENDS OF TOP CROSS BEAM (12). 2. ATTACH TOP CROSS BEAM (12) ONTO THE VERTICLE BEAM (10) FROM TOP SIDE AND CONNECT THE GUIDE RODS (02) TO THE TOP CROSS BEAM (12) AS SHOWN.
- Page 8 STEP 04 1. PLACE 50MM SQUARE CAP (41) INTO BOTH ENDS OF LEG EXTENSION /ARM CURL BAR (14). 2. ATTACH SEAT SUPPORT (13) TO VERTICLE BEAM (10), WITH STEEL PLATE (72) M10*75MM BOLT (50), M10 NYLON NUT (63), AND M10 WASHERS (68).
- Page 9 STEP 05 1. PLACE 50MM SQUARE CAP (41) INTO BOTH ENDS OF PRESS BAR (15). 2. INSTALL OIL BUSHING (71) INTO THE PRESS BAR (15) AS SHOWN. STEP 06 1. ATTACH PRESS BAR (15) TO TOP CROSS BEAM (12) WITH PRESS BAR SHAFT (46) AND OIL BUSHING (71) WASHER (65) BOLT (61) AS SHOWN.
- Page 10 PLEASE ENSURE THE CABLE (26) CAN BE ROTATING FREELY AFTER INSTALLED. PLEASE FOLLOW THE ASSEMBLING INSTRUCTION WITH THE CABLE (26) , M10 HEX BOLT (62) , M10 NUT (51) , M10 WASHER (68) ANDM10 NYLON NUT (63) ARE PLACED IN CORRECT POSITION AS THE DRAWING SHOWN , FAILURE TO DO SO WILL RESULT IN THE CABLE AND CABLE EYELET COMING OFF.
- Page 11 -10-...
- Page 12 CABLE ASSEMBLY 1.START WITH THE TOP LONG CABLE 2350mm (24) START BY THREADING THE END OF THE CABLE WITHOUT THE BALL OVER. PULLEY NO.1, OVER PULLEY NO.2, DOWN AND AROUND PULLEY NO.3 IN FLOATING PULLEY LOCK, UP AND OVER PULLEY NO.4 AND DOWN AND ATTACH TO WEIGHT STACK WITH M12 BOLT &...
- Page 13 -12-...
- Page 14 BODYWORX BODYWORX Model No: L7200 To register your warranty, please go to www.gpisports.com.au...
