AIRFLOW
INSTRUMENTS
™
PROHOOD
™
CAPTURE HOOD
MODELS PH730/PH731
OWNER'S MANUAL
P/N 6005724, REVISION F
AUGUST 2017

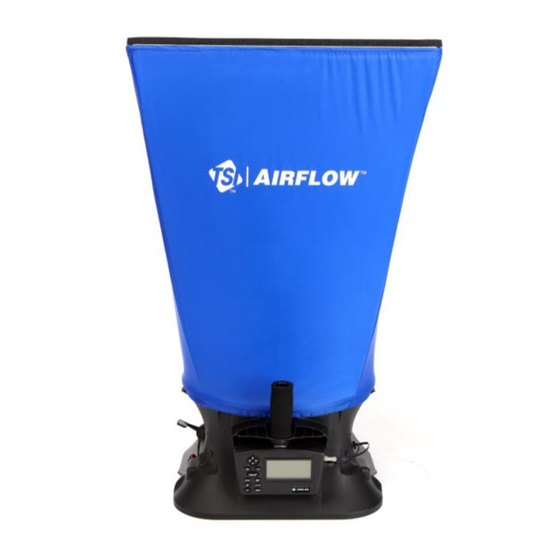

Model PH731 ProHood™
Model PH730 Micromanometer
Capture Hood
(shown with standard and optional accessories)
