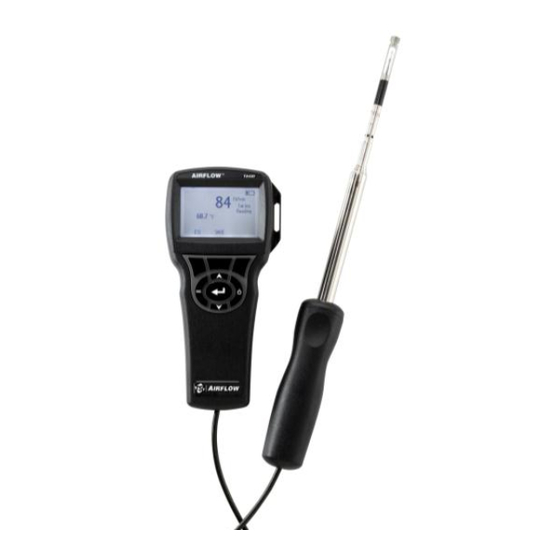

- Page 1 AIR VELOCITY METER ALNOR MODEL ® AVM430/AVM430A AIRFLOW™ INSTRUMENTS MODEL TA430/TA430A OPERATION AND SERVICE MANUAL P/N 1980583, REV F SEPTEMBER 2014 0.561.8187 information@itm. www. .com...
- Page 2 REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES.
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP ..............3 Supplying Power to the Alnor AVM430/Airflow Instruments TA430 ................. 3 Installing the Batteries ............... 3 Using the Optional AC Adapter ..........3 Using the Telescoping Probe ............3 Extending the Probe .............. -
Page 4: Chapter 2 Setting-Up
Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. The Alnor AVM430/ Airflow Instruments TA430 is designed to operate with either alkaline or NiMH rechargeable batteries, although it will not recharge NiMH batteries. -
Page 5: Connecting To A Computer
Software. C a u t i o n ® This symbol is used to indicate that the data port of the Alnor AVM430/Airflow™ Instruments TA430 is not intended for connection to a public telecommunications network. Connect the USB data port only to another USB port. -
Page 6: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Alnor AVM430/Airflow Instruments TA430 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. Arrow () Keys Press to scroll through choices while setting a parameter. -
Page 7: Menus
Menus DISPLAY SETUP Display setup menu is where you will setup the desired parameters to be displayed on the running screen. With a parameter highlighted you can then use the ON soft key to have it show up on the running screen or select the OFF soft key to turn off the parameter. -
Page 8: Data Logging
LogDat2 ™ Downloading Software The Alnor AVM430 /Airflow Instruments TA430 comes with special software called LogDat2 Downloading Software, which is designed to provide you with maximum flexibility and power. To install this software on your computer, follow the instructions on the label of the LogDat2 CD-ROM. -
Page 9: Chapter 4 Maintenance
If the instrument case or storage case needs cleaning, wipe it off with a soft cloth and isopropyl alcohol or a mild detergent. Never immerse the Alnor AVM430/Airflow Instruments TA430. If the enclosure of the Alnor AVM430/Airflow Instruments TA430 or the AC adapter becomes broken, it must be replaced immediately to prevent access to hazardous voltage. -
Page 10: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Alnor AVM430/Airflow Instruments TA430. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. -
Page 11: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Velocity: Range: 0 to 6000 ft/min (0 to 30 m/s) 1&2 Accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater Resolution: 1 ft/min (0.01 m/s) Duct Size: Range: 1 to 250 inches in increments of 0.1 in. - Page 12 Meter Probe Dimensions: Probe length: 40 in. (101.6 cm) Probe diameter of tip: 0.28 in. (7.0 mm) Probe diameter of base: 0.51 in. (13.0 mm) Articulating Probe Dimensions: Articulating section length: 6.0 in. (15.24 cm) Diameter of articulating knuckle: 0.38 in. (9.5 mm) Meter Weight: Weight with batteries: 0.6 lbs (0.27 kg)
