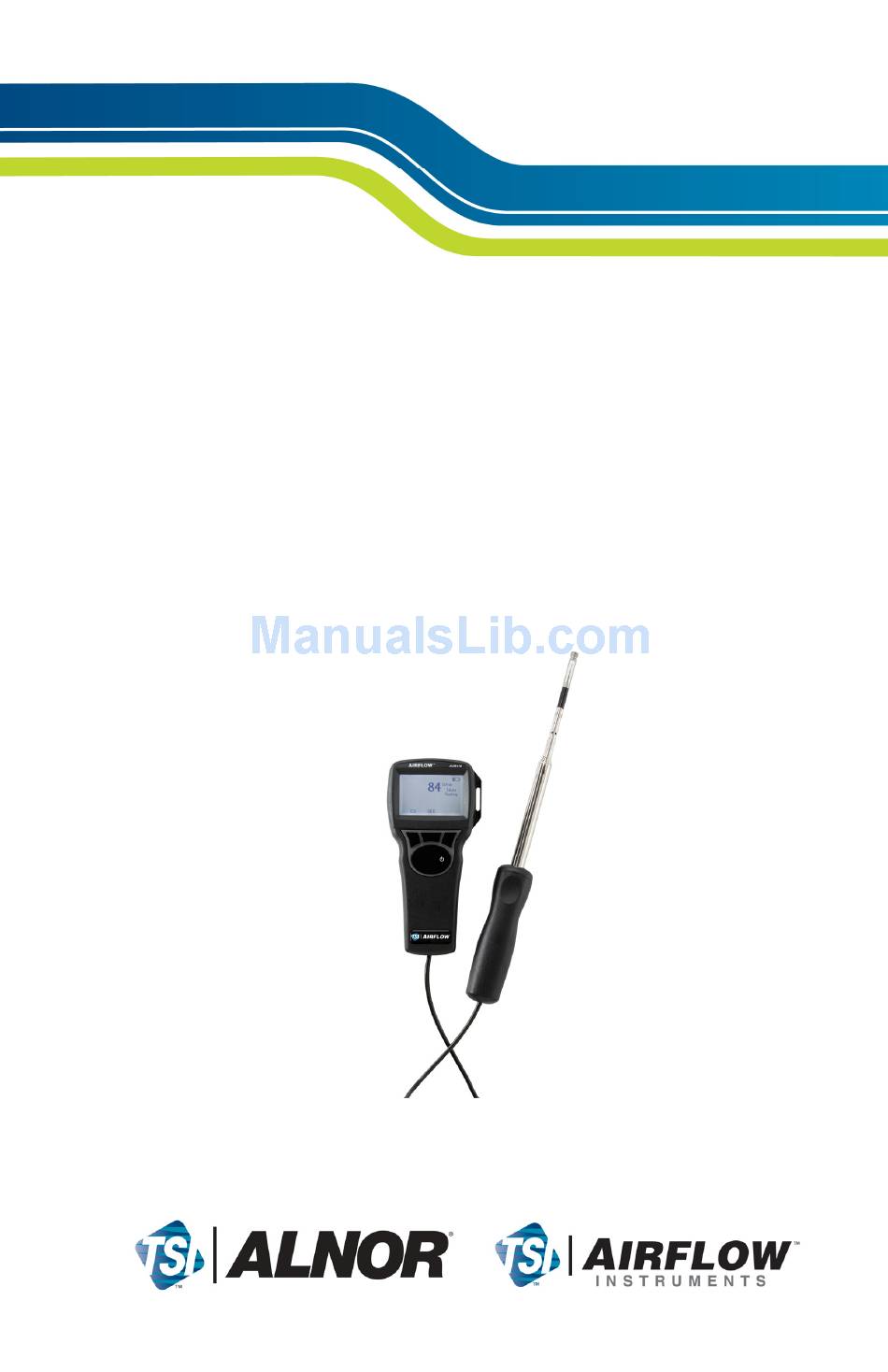

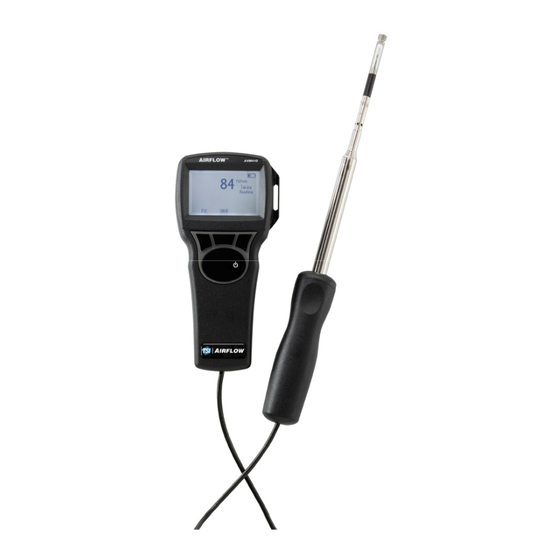

- Page 1 Ventilation Testing Air Velocity Meter Alnor Model AVM410 ® Model TA410 IRFLOW Operation and Service Manual...
- Page 2 Copyright© TSI Incorporated / March 2007 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective July 2000) Seller warrants the goods sold hereunder, under normal use and service as described in the operator's manual, shall be free from defects in workmanship and material for twenty-four (24) months, or the length of time specified in the operator's manual, from the date of shipment to the customer.
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Alnor AVM410/A TA410 ....3 IRFLOW Installing the Batteries ...............3 Using The Telescoping Probe ............3 Extending The Probe..............3 Retracting The Probe ..............3 CHAPTER 3 OPERATION .............. -
Page 5: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument... -
Page 7: Chapter 2 Setting-Up
Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. The Alnor AVM410/A IRFLOW TA410 is designed to operate with either alkaline or NiMH rechargeable batteries, although it will not recharge NiMH batteries. Battery life will be shorter if NiMH batteries are used. -
Page 9: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Alnor AVM410/A TA410 IRFLOW on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision, and Last Date Calibrated. Pressing this key changes the display to read air ft/min / m/s Key velocity. -
Page 11: Chapter 4 Maintenance
Fax: +44 (0) 149 4 459700 Cases If the instrument case or storage case needs cleaning, wipe it off with a soft cloth and isopropyl alcohol or a mild detergent. Never immerse the Alnor AVM410/A TA410. If the enclosure of the Alnor AVM410/... -
Page 13: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Alnor AVM410/A IRFLOW TA410. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. -
Page 15: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Velocity: Range: 0 to 9999 ft/min (0 to 50 m/s) 1&2 Accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater Resolution: 1 ft/min (0.01 m/s) Temperature: Range: 14 to 140°F (-10 to 60°C) Accuracy ±0.5°F (±0.3°C) - Page 16 Cressex Business Park Toll Free (800) 874-2811 High Wycombe Telephone (651) 490-2811 Buckinghamshire Fax: (651) 490-3824 HP12 3QP England Tel: +44 (0) 149 4 459200 E-mail: customerservice@alnor.com Fax: +44 (0) 149 4 459700 Web: www.alnor.com E-mail: info@airflowinstruments.co.uk Web: www.airflowinstruments.co.uk France...
