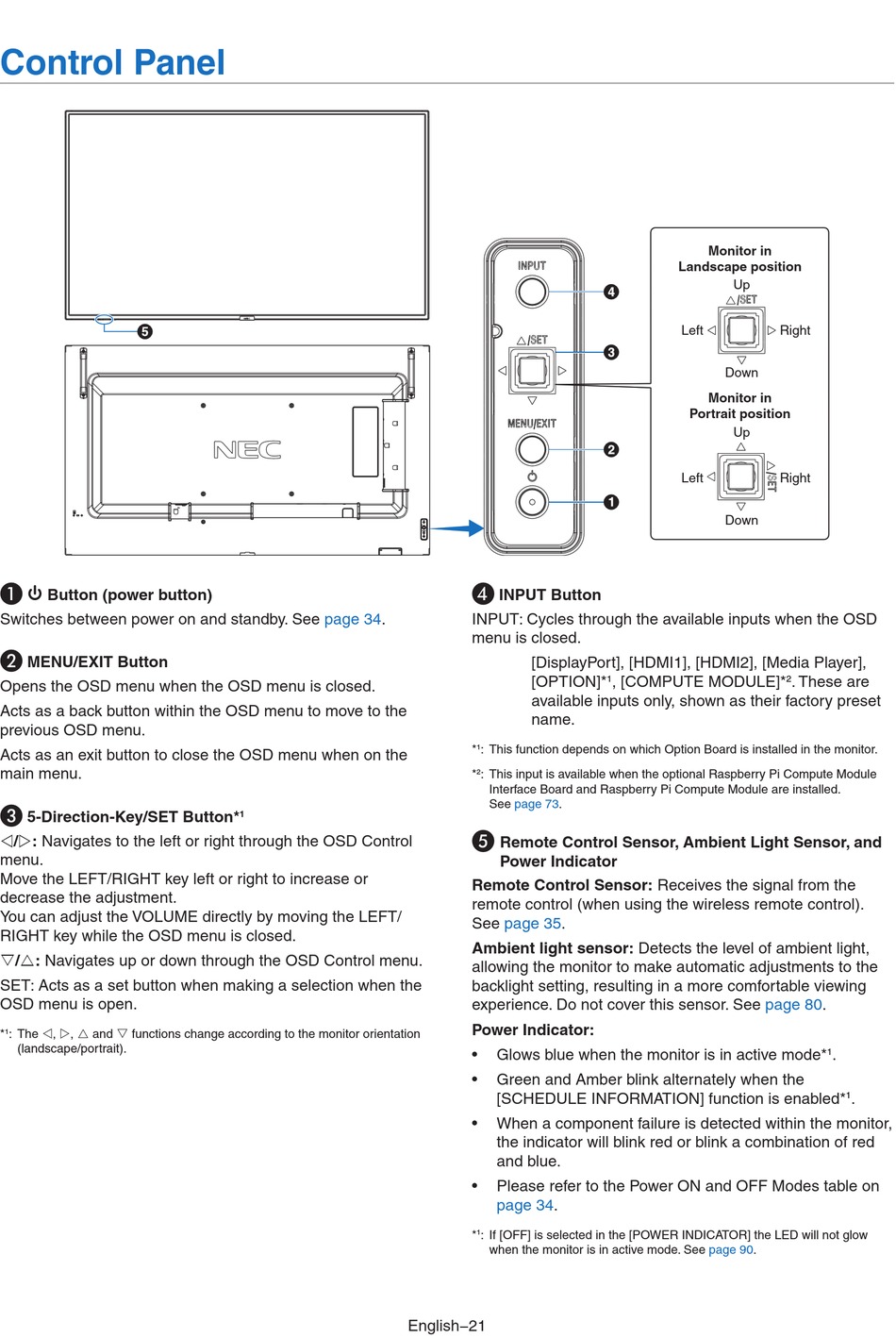

Control Panel
A
⏻ Button (power button)
Switches between power on and standby. See
B
MENU/EXIT Button
Opens the OSD menu when the OSD menu is closed.
Acts as a back button within the OSD menu to move to the
previous OSD menu.
Acts as an exit button to close the OSD menu when on the
main menu.
C
5-Direction-Key/SET Button*
v/wN: Navigates to the left or right through the OSD Control
menu.
Move the LEFT/RIGHT key left or right to increase or
decrease the adjustment.
You can adjust the VOLUME directly by moving the LEFT/
RIGHT key while the OSD menu is closed.
s/rN: Navigates up or down through the OSD Control menu.
SET: Acts as a set button when making a selection when the
OSD menu is open.
: The v, w, r and s functions change according to the monitor orientation
*
1
(landscape/portrait).
page
34.
1
English−21
D
INPUT Button
INPUT: Cycles through the available inputs when the OSD
menu is closed.
[DisplayPort], [HDMI1], [HDMI2], [Media Player],
1
[OPTION]*
, [COMPUTE MODULE]*
available inputs only, shown as their factory preset
name.
1
*
: This function depends on which Option Board is installed in the monitor.
*
2
: This input is available when the optional Raspberry Pi Compute Module
Interface Board and Raspberry Pi Compute Module are installed.
See
page
73.
E
Remote Control Sensor, Ambient Light Sensor, and
Power Indicator
Remote Control SensorN: Receives the signal from the
remote control (when using the wireless remote control).
See
page
35.
Ambient light sensorN: Detects the level of ambient light,
allowing the monitor to make automatic adjustments to the
backlight setting, resulting in a more comfortable viewing
experience. Do not cover this sensor. See
Power IndicatorN:
•
Glows blue when the monitor is in active mode*
•
Green and Amber blink alternately when the
[SCHEDULE INFORMATION] function is enabled*
•
When a component failure is detected within the monitor,
the indicator will blink red or blink a combination of red
and blue.
•
Please refer to the Power ON and OFF Modes table on
page
34.
1
*
: If [OFF] is selected in the [POWER INDICATOR] the LED will not glow
when the monitor is in active mode. See
Monitor in
Landscape position
Up
Left
Right
Down
Monitor in
Portrait position
Up
Left
Right
Down
2
. These are
page
80.
1
.
1
page
90.
.
