Installation Manual
ACCESS
ACCESS
SYSTEMS
SYSTEMS
PROFESSIONAL RESIDENTIAL
PROFESSIONAL RESIDENTIAL
3000XLS
3200XLS
3000XLS
3200XLS
NCB
DUAL Gate Operator System
In a DUAL gate system the LPA 3000XLS is the MASTER gate
operator and the LPA 3200XLS is the SECOND gate operator.
PROFESSIONAL INSTALLATION RECOMMENDED!
WARNING!
This equipment is similar to other gate or door equipment and meets or exceeds
Underwriters Laboratory Standard 325 (UL 325). However, gate equipment has
hazards associated with its use and therefore by installing this product the installer
and user accept full responsibility for following and noting the installation and
safety instructions. Failure to follow installation and safety instructions can result
in hazards developing due to improper assembly. You agree to properly install this
product and that if you fail to do so GTO Access Systems, ("GTO") shall in no event
be liable for direct, indirect, incidental, special or consequential damages or loss of
profits whether based in contract tort or any other legal theory during the course
of the warranty or at any time thereafter. The installer and/or user agree to assume
responsibility for all liability and use of this product releasing GTO Access Systems,
from any and all liability. If you are not in agreement with this disclaimer or do not
feel capable of properly following all installation and safety instructions you may
return this product for full replacement value.
READ ALL INSTRUCTIONS CAREFULLY AND COMPLETELY before attempting to
install and use this automatic gate operator. This gate operator produces a high level
of force. Stay clear of the unit while it is operating and exercise caution at all times.
All automatic gate operators are intended for use on vehicular gates only.
This product meets and exceeds the requirements of UL 325, the standard which
regulates gate operator safety, by Underwriters Laboratories Inc.
For more information on the GTO ACCESS SYSTEMS full line of automatic gate
operators and access controls visit our website at www.linearproaccess.com.
©2015 GTO Access Systems, LLC
Printed in China for GTO Access Systems, LLC.
R4818 06-03-16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GTO Linear PRO ACCESS PRO-SW3000-XLS
Summary of Contents for GTO Linear PRO ACCESS PRO-SW3000-XLS
- Page 1 You agree to properly install this product and that if you fail to do so GTO Access Systems, (“GTO”) shall in no event be liable for direct, indirect, incidental, special or consequential damages or loss of profits whether based in contract tort or any other legal theory during the course of the warranty or at any time thereafter.
- Page 2 Class Rating The LPA 3000XLS/3200XLS Gate Operators is intended for use with vehicular swing gates in single family residential applications. The operator is system certified to be in compliance with UL 325, current edition, as of publication date. Vehicular Gate Operator Class Categories: Residential Vehicular Gate Operator—Class I: A vehicular gate operator (or system) intended for use in a home of one-to-four single family dwelling, or a garage or parking area associated therewith.
-
Page 3: Table Of Contents
Table of Contents Class Rating ........................inside cover Please Read This First ..........................ii Important Safety Instructions......................iii Technical Specifications ........................1 Before You Begin ..........................2 Determine Charging Option for Battery: Transformer OR Solar ......... 2 Solar Panel and Gate Activity Chart ..................2 Check Direction of Gate Swing .................... -
Page 4: Please Read This First
You must read the installation manual for detailed instructions on gate operators safety and proper use of the gate operators. 24/7 Troubleshooting Wizard: http://support.gtoinc.com GTO Accessories are noted with this symbol in this Installation Manual. Information about accessories can be found on page 32 and at www.linearproaccess.com. -
Page 5: Important Safety Instructions
Because GTO automatic gate operators are only part of the total gate operating system, it is the responsibility of the installer/consumer to ensure that the total system is safe for its intended use. - Page 6 IMPORTANT SAFETY INSTRUCTIONS For The Consumer WARNING: To reduce the risk of injury or death: 1. READ AND FOLLOW ALL INSTRUCTIONS. Failure to meet the requirements set forth in the instruction manual could cause severe injury or death, for which the manufacturer cannot be held responsible. 2.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS II. During Installation 1. Install the gate operator on the inside of the property and fence line. DO NOT install an operator on the outside of the gate where the public has access to it. 2. Be careful with moving parts and avoid close proximity to areas where fingers or hands could be pinched. 3.
- Page 8 Install Warning Signs Warning signs alert people of automatic gate operation and are required when installing the GTO Gate Operator. The Warning Signs included must be installed on both sides of each gate. Furthermore, a walk-through gate must be installed for pedestrian traffic.
- Page 9 A wireless contact sensor shall function under the intended end-use conditions. You may want to consider adding photo beams to your installation. GTO Photo Beams [R4222] provide a “non contact” means of entrapment protection.
- Page 10 Disconnect operator ONLY when the control box power switch is OFF and the gate is NOT moving. MMDDYY GTO Access Systems, LLC - Tallahassee, Florida USA Product identification and manual operation instruction Warning signs (4 enclosed) to be installed on each side of the gate (3–5 feet above the bottom of the gate).
-
Page 11: Technical Specifications
GTO/ACCESS SYSTEMS 3000XLS/3200XLS AUTOMATIC GATE OPERATOR DRIVE • Low friction screw drive (linear actuator) rated for -5 ºF to +160 ºF (-21 ºC to +71 ºC). Use of GTO battery heater FM316 (Not solar compatible) is recommended in extreme cold temperatures. -
Page 12: Before You Begin
[FM123]. Refer to the Solar Panel and Gate Activity chart below. • All low voltage wire used with the GTO Gate Operator must be 16 gauge dual conductor, stranded, direct burial wire [RB509]. Do not run more than 1000 ft. of wire. -
Page 13: Check Direction Of Gate Swing
2. Check Direction of Gate Swing The 3000XLS/3200XLS is designed for Pull-To-Open installations. Push-To-Open installations require a Push-To- Open Bracket [R4388]. Please refer to specific Push-To- Open Installation Information on page 26. Your Property Your Property Pull-To-Open Push-To-Open 3. Prepare the Gates (arm retracts to open) (arm extends to open) •... -

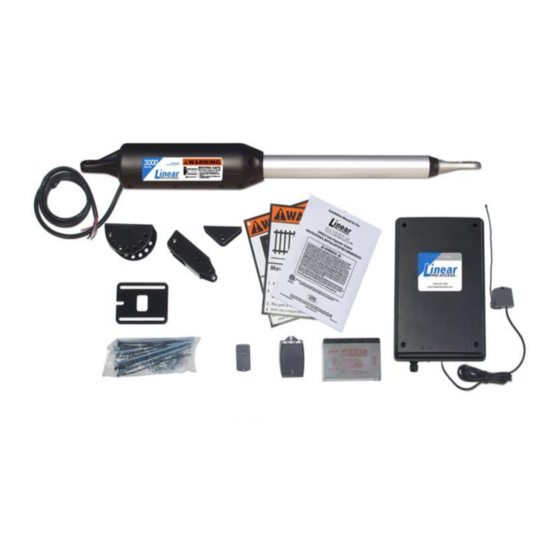

Page 14: 3000Xls Parts List
5. 3000XLS Parts List CONTROL BOX AND ELECTRICAL COMPONENTS Receiver (1) GTO Transmitter(1) RB741 Warning Signs (2) Transformer (1) Battery (1) Control Box (1) RB570 RB500 Master Gate Operator (1) LPA 3000XLS Arm Customer Support Card 6’ Power Cable BRACKET BOX - HB301... -
Page 15: 3200Xls Parts List
6. 3200XLS Parts List Second Gate Operator (1) LPA 3200XLS Arm 40’ Power Cable Warning Signs (2) BRACKET BOX - HB301 Closed Position Gate Bracket (1) Stop Plates (1) Post Bracket (1) Post Pivot Bracket (1) HARDWARE BAG - H301P 3/8"... -
Page 16: Tools Needed
7. Tools Needed Drill Bit Center • Power Drill • Pliers Drill Punch • Level • Tape Measure Pliers • Wire Strippers • Center Punch • Open End Wrenches: ” and ” Hack Saw Hammer • Drill Bits: ” and ”... -
Page 17: Installation Overview
9. Installation Overview Pull-To-Open Gates (Gate Opens into the Property) The diagram shown below is an example of a Pull-To-Open installation on a chain link fence and dual gate. Mounting the operators on masonry columns requires special procedures; see Column Installation Information on page 28. -
Page 18: Install The Post Bracket Assembly
Step 1 Close the gate and place your level against the horizontal cross member. Position the level so that the top should be in the center of the cross member and overlaps the post. Scribe a line across the cross member and post. You will use this line to help determine position of post and gate brackets. - Page 19 Step 5 Position the operator rear mount between post pivot bracket. 3/8” x 2-1/2” Clevis Pin Place a ” bushing above the rear mount and a ” bushing under the rear mount. Align the hole in rear mount, bushings and post pivot bracket and secure with the 2 ”...
-
Page 20: Check Clearance
Step 8 Remove the clevis pin from the front mount and while supporting the gate operator, swing the gate and gate operator to the closed position. With the gate and gate operator in the closed Gate in the Clamp 2" minimum CLOSED POSITION position check the clearance and be sure Pinch Area... -
Page 21: Install The Second Gate Operator
The 3000XLS/3200XLS Gate Operators firmly hold the gates in the closed position using positive stops. The positive stops help stabilize the gate leaves in the closed position. To further enhance stability and security, we strongly recommended using an optional GTO Automatic Gate Lock. IMPORTANT: The gate and gate... - Page 22 NOTE: The optional ground stop post is used to provide a secure point for the SECOND gate to close against. If you will be using the GTO Automatic Gate Lock accessory with your gate operator system, the low profile ground stop is REQUIRED, as example shown in illustration C.
-
Page 23: Mount Battery Box And Control Box
Mount the Battery Box and Control Box Step 1 Remove the Control box from the Battery Box by removing four screws as shown in Illustration A. Step 2 Mount the Battery Box using the screws (provided) or another secure mounting method as shown in Illustration B. - Page 24 (see illustration). The receiver cable: • Cable length is 10 ft. (receivers with longer cables are available as special order items; call the GTO Sales Department). • NEVER splice receiver cable! • Run the receiver cable through PVC conduit to protect it from damage.
-
Page 25: Connect Operator Power Cables
Connect Operator Power Cables Step 1 Review the Installation Overview illustration below before proceeding. Cut a slot into the driveway to accommodate 3/4” PVC conduit (not provided). The buried conduit will protect the SECOND operator power cable from automobile tires, lawn mower blades, weed eaters, and grazing animals. - Page 26 Connecting MASTER Operator Step 3 Insert the stripped power cable wires into the appropriate terminals on the MASTER OPERATOR terminal block. The green wire should be inserted into the GRN terminal, the white wire into WHT, the blue wire into BLUE, brown wire into BRN, orange wire into ORG, red wire into RED, and the black wire into the BLK terminal.
-
Page 27: Connect The Power Input
(available at local electrical supply stores) must be used. • The only wire acceptable for use with GTO products is 16 gauge stranded, low voltage, direct burial wire [RB509]. This particular gauge enables the transformer to provide an adequate charge through the control board to the battery at distances up to 1000 ft. - Page 28 Step 5 Strip ” off the ends of the low voltage wire and twist tightly. Attach these ends BLACK BLACK to the 18 VAC or SOLAR terminals located Low Voltage Wire on the POWER INPUTS terminal block. Be from AC Transformer certain not to let the exposed wires touch or Solar Panel each other!
-
Page 29: Control Board Settings
Control Board Settings Set Closed Position Limit (for Pull-To-Open Applications) Step 1 Power switch is on, gates are in the OPEN position, operator arms fully Gates in Control OPEN retracted. Postion Master Second Gate Gate Operator Operator Step 2 Press the transmitter to activate operator arms. - Page 30 Step 4 Press the transmitter to open the gates. Gates will OPEN fully. Gates in Control OPEN The gate in step 3A or 3B is now Postion programmed. Master Second Gate Gate Operator Operator Step 5 Press the transmitter to activate operator arms.
-
Page 31: Adjust The Stall Force Setting
Adjust the Stall Force Setting The Stall Force potentiometer on the control board controls the obstruction sensitivity (or the amount of force the operator will apply to an obstruction for AUTO CLOSE TIME AUTO CLOSE TIME STALL FORCE STALL FORCE STALL FORCE two (2) seconds before it automatically stops and reverses direction). -
Page 32: Program Your Personal Transmitter Setting
Program Your Personal Transmitter Setting All GTO transmitters are set to a standard code at the factory and are ready to operate your GTO gate operator. For your safety and security, we strongly recommend that you replace the factory setting with your own personal setting. Follow the... -
Page 33: Control Board Settings
Dip Switch Settings DIP Switches DIP Switch Settings (MODES) DIP Switch #1: Soft Start/Stop ON– Soft start enabled (factory preset). OFF– Soft start disabled. The Soft Start/Stop feature slowly starts the gate as it begins to open and slows the gate as it comes to the closed position. -
Page 34: Connecting Accessories
Connecting Accessories Input Connections • All control inputs are dry-contact, normally open, inputs. DO NOT apply external voltage sources to these inputs. • All inputs are connected with respect to COMMON terminal. • The status LED will blink once when its corresponding input is activated. 1 COM: Circuit common (reference for all logic input) •... -
Page 35: Wiring Accessories
LOCK CONTROL INPUTS INPUT 2ND OPERATOR CONTROL INPUTS MASTER OPERATOR 2ND OPERATOR MASTER OPERATOR RECEIVER GTO 18 VOLT TRANSF. OR GTO RCVR. SOLAR PANEL According to Application Automatic Gate Lock (FM144 & FM142) Edge Sensor Push Button Control (RB101) Photo Beams (R4222) -
Page 36: Push-To-Open Installation Information
Push-To-Open Installation Information Swinging gates shall not open into public access areas! A “Push-to-Open” gate opens out from the property (operator arm extends to open the gate). A Push-To- Open installation requires the purchase of a Push-To-Open Bracket [R4388]. In a Push-To-Open installation the operator is installed while the gate is in the CLOSED POSITION. Install the Operator Follow directions for installing the 3000XLS Gate In Closed Position... -
Page 37: Setting The Open Position Limit (Push-To-Open Installations)
Set Control Board for Push-To-Open Set Control Board for Push-To-Open Make sure the control box power switch is OFF. Use a small screwdriver to Make sure the control box power switch is OFF. Use a small screwdriver to ON DIP 1 2 3 4 1 2 3 4 move the Number 3 DIP switch from the factory setting (OFF / Pull-To-Open) -
Page 38: Column Installation
Step 5 Master Second Press the transmitter to activate Gate Gate Operator Operator operator arms. The gates will Gates begin to OPEN. Opening Control Step 6 The gate that was programmed in step 4 will stop on its own. Press the transmitter 2nd Gate B1 again to stop the other gate when it Opening... -
Page 39: Troubleshooting Guide
Troubleshooting Guide If your gate operator does not function properly after it is installed, use this guide before calling the GTO Service Department. Generation 3 Audible Feedback SYMPTOM DIAGNOSIS CHECK: 1 short beep upon Circuit Board • Normal Operation power up Powered Up &... -
Page 40: Voltage Readings
Generation 3 Visual Feedback SYMPTOM DIAGNOSIS CHECK: Status (clear)1 blink Cycle Terminal • Disconnect the push button, keypad, intercom keypad, or Shorted any other accessory wired to this terminal. • Try the remote. If the remote works, then the problem is the accessory. -
Page 41: Repair Service
Write the RGA number issued to you on the outside of the package in LARGE BOLD PRINT. Ship the package(s) freight prepaid to: GTO, 3121 Hartsfield Road, Tallahassee, Florida, USA 32303. NOTE: Products returned to GTO without a Return Goods Authorization (RGA) number in LARGE BOLD PRINT on the outside of the package WILL NOT be accepted. -
Page 42: Accessories
Solar Panel Kits [FM122/FM123] If your gate operator is more than 1000 ft. away from an AC power outlet, you can choose to maintain the battery charge with the GTO Solar Panel Kit. • 10 Watt Solar Panel Charging Kit [FM123] •... - Page 43 Automatic Gate Lock [FM144/FM142] The #1 Accessory For Swing Gate Operators! Designed for added security in conjunction with GTO Automatic Gate Operators. The gate lock unlocks and locks automatically when the gate opens and closes. The perfect solution for high wind conditions.
- Page 44 ADDITIONAL ACCESSORIES Photo Beams [R4222] Primary “through beam” photo beam device. Provides “non-contact” entrapment protection. Pin Lock [FM345] Use as a substitute for the clevis pin at the front mount of the PRO-SW3000XLS to prevent theft of the operator. • Pin Lock 10-pack: ten Pin Locks keyed alike [FM345KA]. Push Button Control [RB101] Wire this unlit push button directly to your gate operator for simple open/close/stop operation from up to 1000 ft.
