Summary of Contents for Ubiquiti airMAX Omni

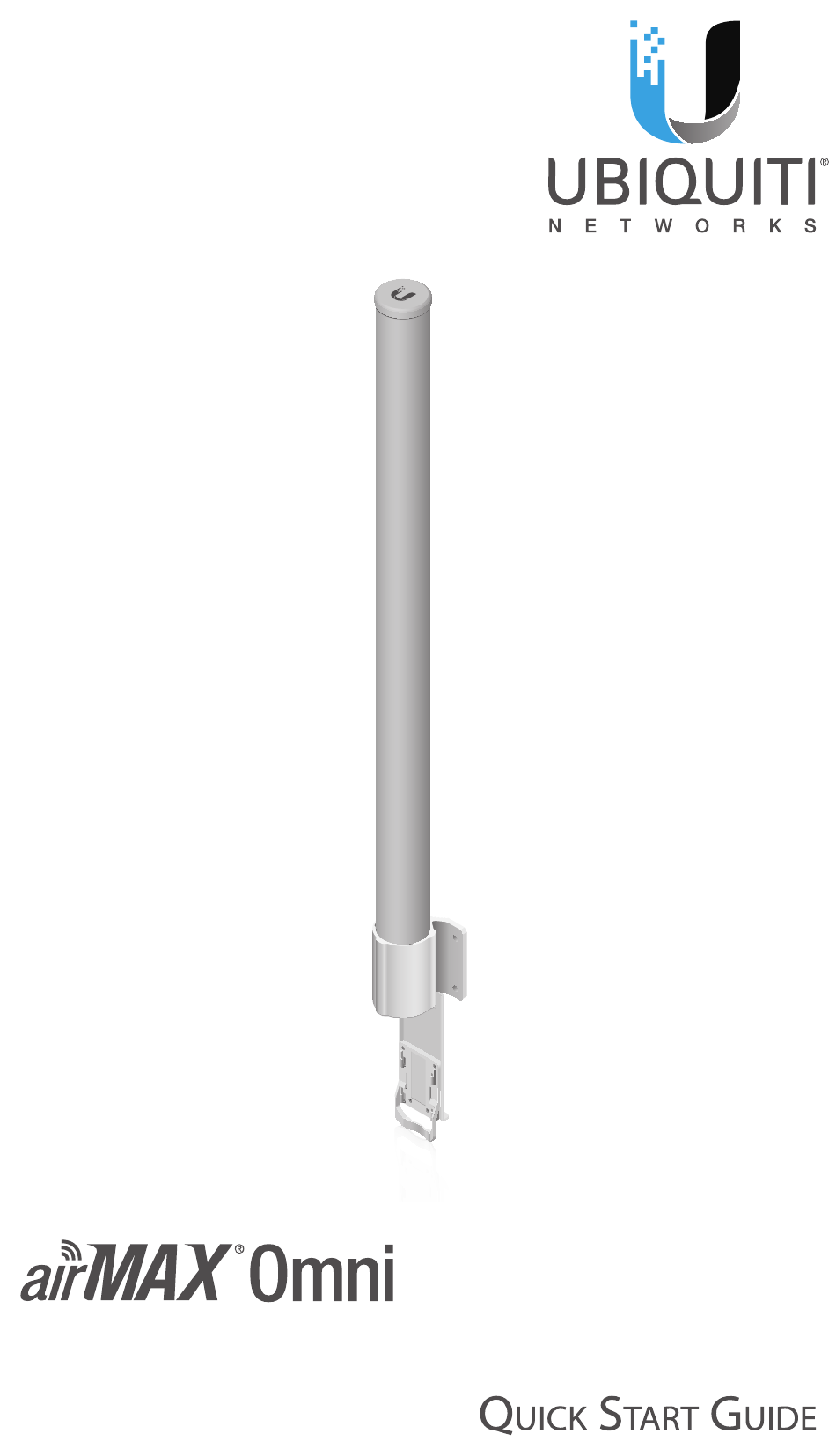

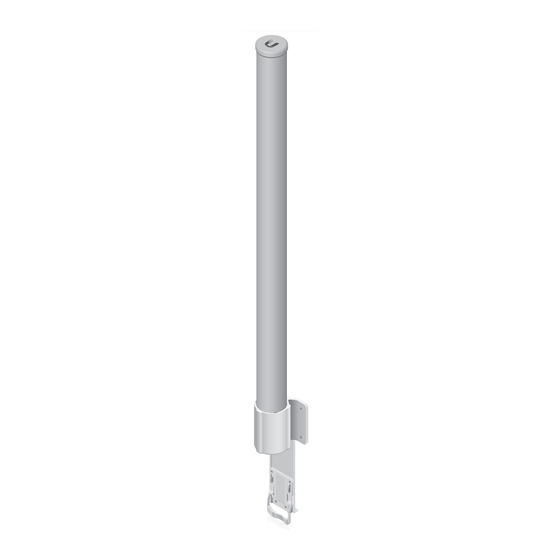

- Page 1 2.4 GHz 2x2 MIMO Dual Polarity Omni Antenna Model: AMO-2G13...
-
Page 2: Package Contents
2.4 GHz 2x2 MIMO Dual Polarity Omni Antenna. This Quick Start Guide is designed to guide you through the installation of the antenna. This Quick Start Guide also includes the warranty terms and is for use with the airMAX Omni Antenna, model AMO-2G13. Package Contents... -
Page 3: Installation Requirements
AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Installation 1. Attach the RF Cables to the connectors labeled Chain 0 and... - Page 4 2. Align the mounting tabs on the back of the Rocket with the Rocket mount, and slide the Rocket down to lock it into place. 3. Attach the other ends of the RF Cables to the RF connectors on the antenna. *640-00046-03* 640-00046-03...
- Page 5 4. Insert the four Carriage Bolts into the main mounting bracket of the antenna.
- Page 6 5. Attach the antenna to the top of the pole. (If the antenna is attached to a lower point on the pole, part of the signal will be blocked by the pole.) Note: The mounting assembly can accommodate a Ø 38 - 76 mm (1.5 - 3.0") pole. a.
-
Page 7: Specifications
Specifications AMO-2G13 Dimensions 1390 x 122 x 105 mm (54.72 x 4.8 x 4.13") Weight with Mount 2.4 kg (5.29 lb) Frequency 2.35 - 2.55 GHz Gain 13 dBi Elevation Beamwidth 7° Electrical Downtilt 2° Max. VSWR 1.7:1 Wind Survivability 200 km/h (125 mph) Wind Loading 111.2 N @ 200 km/h... -
Page 8: Safety Notices
Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 9: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 10 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 11: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... - Page 12 Compliance RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 13 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 14: Declaration Of Conformity
Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir því að AMO-2G13 er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2011/65/EU. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance... -
Page 15: Online Resources
Malti [Maltese] B’dan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta’ tagħmir tar-radju AMO-2G13 huwa konformi mad-Direttiva 2011/65/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn www.ubnt.com/compliance Norsk [Norwegian] UBIQUITI NETWORKS erklærer herved at utstyret AMO-2G13 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2011/65/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på... - Page 16 ©2012-2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, Rocket, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. JLPH110317...
