Commercial Refrigerator
And Freezer User's Manual

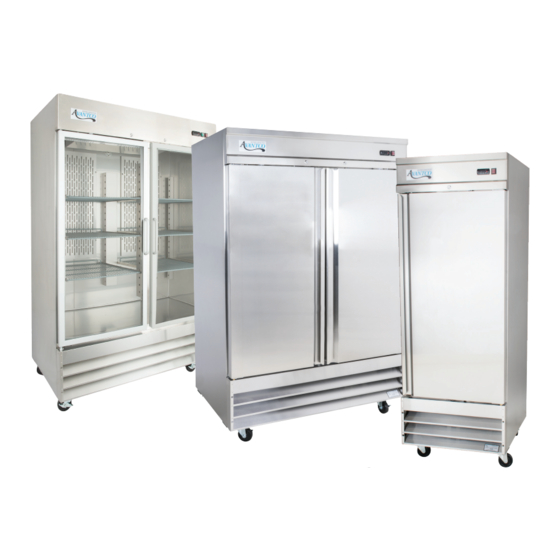

Reach-in Refrigerator And Freezer
Refrigerator model: 178SS1RHC, 178SS2RHC, 178SS3RHC
Freezer model: 178SS1FHC, 178SS2FHC, 178SS3FHC
Glass Door Refrigerator model: 178SS1RGHC, 178SS2RGHC
Half Door Refrigerator model: 178SS1R2HC, 178SS2R4HC
Half Door Freezer model: 178SS1F2HC, 178SS2F4HC
Please read the manual thoroughly prior to equipment set-up,
operation and maintenance
User Manual
.
- 1 -
2/2019
Advertisement
Table of Contents
Related Manuals for Avantco SS-3R-HC
Summary of Contents for Avantco SS-3R-HC
- Page 1 User Manual Commercial Refrigerator And Freezer User’s Manual 2/2019 Reach-in Refrigerator And Freezer Refrigerator model: 178SS1RHC, 178SS2RHC, 178SS3RHC Freezer model: 178SS1FHC, 178SS2FHC, 178SS3FHC Glass Door Refrigerator model: 178SS1RGHC, 178SS2RGHC Half Door Refrigerator model: 178SS1R2HC, 178SS2R4HC Half Door Freezer model: 178SS1F2HC, 178SS2F4HC Please read the manual thoroughly prior to equipment set-up, operation and maintenance - 1 -...
- Page 2 User Manual Warning DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING. PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA REFRIGERANTE.
-
Page 3: Installation
• Please read through this manual in its entirety. Field Convertible Doors The Avantco 178SS1RHC and 178SS1FHC both ship with a right-hinged door design. If you would like to convert the reach-in to a left hinged door design (solid door models), you must purchase the... - Page 4 User Manual 5. The door should come off at this point. - Note: Do not lose the small round brass spacer on the bottom hinge! 6. Remove the bottom bracket. It is held on with 3 bolts. 7. Replace the bottom hinge with the new left hand bottom bracket. It is held on with 3 bolts. 8.
-
Page 5: Adjusting The Temperature
User Manual Electrical • Please ensure that the required voltage is being supplied at all times. • The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current protection. Please refer to the electrical requirements on the unit’s nameplate. •... -
Page 6: Defrost System
User Manual Freezer Control Refrigerator Control mute Running a Manual Defrost Cycle This unit is pre-programmed to run automatic defrost cycles at preset intervals. However, if you would like to run a manual defrost cycle at any time, please follow the steps below: Freezers: Press the defrost button (“def”... - Page 7 User Manual • We recommend cleaning the condenser coil at least once per month. • Clean the condenser with a commercial condenser coil cleaner, available from any kitchen equipment retailer. Cleaning the Fan Blades and Motor • If necessary, clean the fan blades and motor with a soft cloth. •...
-
Page 8: Troubleshooting
User Manual Trouble Shooting Compressor is Not Running Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. Power cord unplugged. Plug in power cord Thermostat set too high. Set thermostat to lower temperature. Cabinet in defrost cycle. Wait for defrost cycle to finish.
