Reach-In
Refrigerators & Freezers
Refrigerator Models:

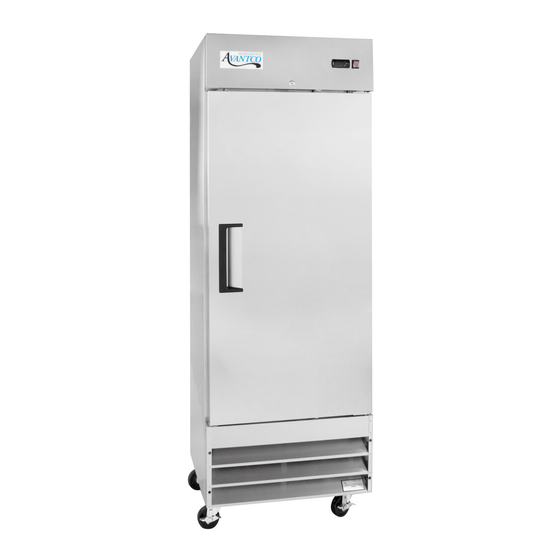

#178A12RHC
24" Single Solid Door
#178A19RHC
29" Single Solid Door - Narrow Depth
#178A23RHC
29" Single Solid Door
#178A23RGHC
29" Single Glass Door
Freezer Models:
#178A12FHC
25" Single Solid Door
#178A19FHC
29" Single Solid Door - Narrow Depth
#178A23FHC
29" Single Solid Door
Note:
You should read this manual in its entirety prior to equipment setup, operation, and maintenance.
www.AvantcoRefrigeration.com
User Manual
#178A35RHC
39½" Double Solid Door
#178A49RHC
54" Double Solid Door
#178A49RGHC
54" Double Glass Door
#178A35FHC
39½" Double Solid Door
#178A49FHC
54" Double Solid Door
04/2023
Advertisement
Table of Contents
Related Manuals for Avantco 178A12RHC
Summary of Contents for Avantco 178A12RHC
- Page 1 User Manual 04/2023 Reach-In Refrigerators & Freezers Refrigerator Models: #178A12RHC 24" Single Solid Door #178A35RHC 39½" Double Solid Door #178A19RHC 29" Single Solid Door - Narrow Depth #178A49RHC 54" Double Solid Door #178A23RHC 29" Single Solid Door #178A49RGHC 54" Double Glass Door #178A23RGHC 29"...
- Page 2 User Manual Reach-In Refrigerators & Freezers Warnings DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING. PELIGRO – RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO.
-
Page 3: Before Installation
• Please read through the manual in its entirety. Field Convertible Doors The Avantco A-19R, A-19F, A-23R, and A-23F ship with a right-hinged door design. If you would like to convert the reach-in to a left-hinged door design, you much purchase the bottom hinge separately (Avantco #178AKITFR) and... -
Page 4: Cabinet Location Guidelines
User Manual Reach-In Refrigerators & Freezers Installation 10. Place the top bracket on the top of the door, securing with 3 bolts. 11. Replace the small screws on the top and bottom of the bracket and door spring. Make sure the door is on properly before you do this. -
Page 5: Temperature Controls
User Manual Reach-In Refrigerators & Freezers Temperature Controls Adjusting the Temperature • Your new refrigerator or freezer is already factory-set to run at optimum temperatures for food safety and should require no adjustments. • Refrigerators are set to cycle between a minimum temperature of 33°F and a maximum temperature of 40°F. •... -
Page 6: Loading Product
User Manual Reach-In Refrigerators & Freezers Operation Running a Manual Defrost Cycle • Units are pre-programmed to run automatic defrost cycles at preset intervals. However, if you would like to run a manual defrost cycle at any time, follow the steps below. Only models with digital controls can run a manual defrost cycle. -
Page 7: Cleaning The Condenser Coil
User Manual Reach-In Refrigerators & Freezers Cleaning DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT. It is strongly recommended that any servicing of the unit be performed by an authorized service technician. Fan Blades & Motor • If necessary, clean the fan blades and motor with a soft cloth. •... -
Page 8: Troubleshooting
User Manual Reach-In Refrigerators & Freezers Troubleshooting Problem Possible Cause Possible Solution Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. Power cord unplugged. Plug in power cord. Compressor not running. Thermostat set too high. Set thermostat to lower temperature. Cabinet in defrost cycle.
