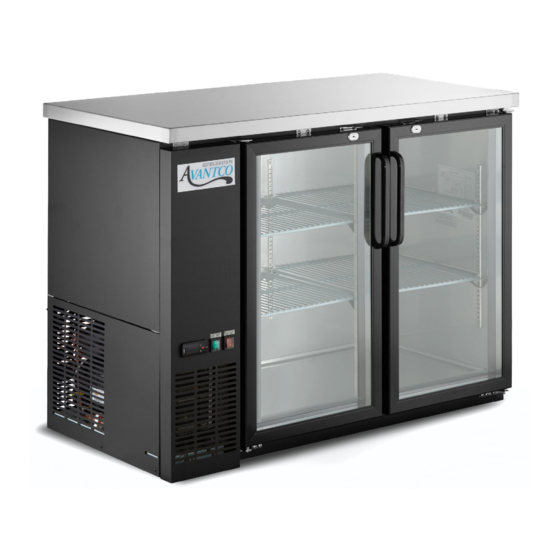

Back Bar Refrigerator
Base Models:
#178UBB36HC
#178UBB60HC
#178UBB48HC
#178UBB72HC
Note:
Please read the manual thoroughly prior to equipment set-up, operation, and maintenance.
www.AvantcoRefrigeration.com
User Manual
#178UBB1HC
#178UBB3HC
#178UBB2HC
#178UBB4HC
02/2023
178UBB48GHC
#178UBB378
( Variations listed on page 3 )
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avantco 178UBB36HC
Summary of Contents for Avantco 178UBB36HC
- Page 1 User Manual 02/2023 178UBB48GHC Back Bar Refrigerator Base Models: #178UBB36HC #178UBB60HC #178UBB1HC #178UBB3HC #178UBB378 #178UBB48HC #178UBB72HC #178UBB2HC #178UBB4HC ( Variations listed on page 3 ) Note: Please read the manual thoroughly prior to equipment set-up, operation, and maintenance. www.AvantcoRefrigeration.com...
-
Page 2: Table Of Contents
User Manual Back Bar Refrigerators Table of Contents Model Types ........................... 3 Safety ..............................4 Installation ............................5 Cabinet Location Guidelines ...................... 5 Electrical ............................6 Adjusting Temperature ........................ 6 Safety / Warning ..........................7 Operation / Maintenance ......................8 Troubleshooting .......................... -
Page 3: Model Types
User Manual Back Bar Refrigerators Base Model SS Top Galvanized 178UBB36GHCS, 178UBB36HCS, 178UBB36HC 178UBB36GH, 178UBB36GHC 178UBB48GHC, 178UBB48GHCS, 178UBB48GT, 178UBB48GTS, 178UBB48HC 178UBB48HCS, 178UBB48SHC, 178UBB48GTG, 178UBB48GTGS, 178UBB48SHCS 178UBB48SGT, 178UBB48SGTS 178UBB60GHC, 178UBB60GHCS, 178UBB60GT, 178UBB60GTS, 178UBB60HC 178UBB60HCS, 178UBB60SHC, 178UBB60GTG, 178UBB60GTGS, 178UBB60SHCS 178UBB60SGT, 178UBB60SGTS 178UBB72GHC, 178UBB72GHCS,... -
Page 4: Safety
User Manual Back Bar Refrigerators Safety Warning DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING. PELIGRO – RRIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. -
Page 5: Installation
User Manual Back Bar Refrigerators Installation This unit is intended for use in a temperature-controlled environment less than 75 degrees Fahrenheit and 60% relative humidity. Malfunction due to improper conditions is not covered under warranty. IMPORTANT – Please Read Before Installation: •... -
Page 6: Electrical
User Manual Back Bar Refrigerators Electrical • Please ensure that the required voltage is being supplied at all times. • The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current projection. NEVER USE AN ADAPTER PLUG! Please refer to the electrical requirements on the unit’s nameplate. -
Page 7: Safety / Warning
User Manual Back Bar Refrigerators Running a Manual Defrost Cycle This unit is pre-programmed to run automatic defrost cycles at preset intervals. However, if you would like to run a manual defrost cycle at any time, please follow the steps below: 1. -
Page 8: Operation / Maintenance
User Manual Back Bar Refrigerators Operation / Maintenance WARNING DISCONNECT THE POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT. NOTE: We strongly recommend that any servicing be performed by an authorized service technician. Loading Product • Do not block the air duct/fan at the top of the unit. Maintain a minimum of 4” of clearance between prod- ucts and the fan at all times. - Page 9 User Manual Back Bar Refrigerators Condenser Coil Cleaning Instructions: A dusty condenser may lead to high energy consumption, less cooling effectiveness, and compressor damage. The condenser coil is located at the bottom behind the panel. 1. Disconnect the electrical power from the unit. 2.
-
Page 10: Troubleshooting
User Manual Back Bar Refrigerators Troubleshooting Problem Possible Solution Fuse blown or circuit breaker tripped Replace fuse or reset circuit breaker Power cord unplugged Plug in power cord Compressor is Not Running Thermostat set too high Set thermostat to lower temperature Cabinet in defrost cycle Wait for defrost cycle to finish Thermostat is set too high... - Page 11 User Manual Back Bar Refrigerators Troubleshooting Problem Possible Solution Poor switch connection Turn off light switch and turn it back on Interior Light Bulb is not connected Make sure the bulb is correctly inserted in the socket is Not Working Bulb has burned out Replace the bulb Gasket is not sealing properly...
