Commercial Refrigerator
And Freezer User's Manual
Reach-in Refrigerator And Freezer
Refrigerator model: 178SS1RHC, 178SS2RHC, 178SS3RHC
Freezer model: 178SS1FHC, 178SS2FHC, 178SS3FHC
Glass Door Refrigerator model: 178SS1RGHC, 178SS2RGHC
Half Door Refrigerator model: 178SS1R2HC, 178SS2R4HC
Half Door Freezer model: 178SS1F2HC, 178SS2F4HC
Please read the manual thoroughly prior to equipment set-up,
operation and maintenance
User Manual
.
- 1 -
09/2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

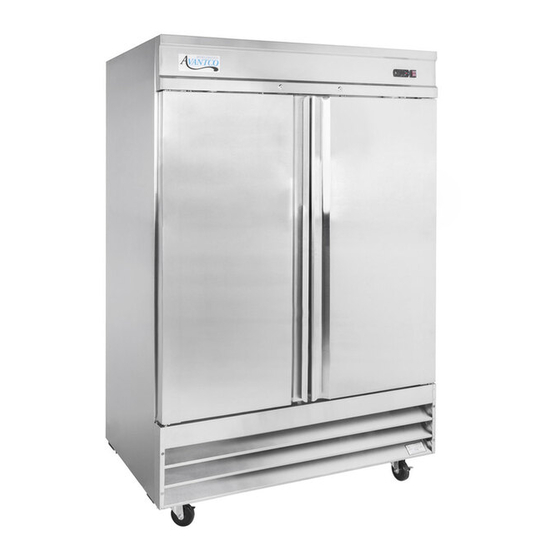

Related Manuals for Avantco SS-2R-HC
Summary of Contents for Avantco SS-2R-HC
- Page 1 User Manual Commercial Refrigerator And Freezer User’s Manual 09/2017 Reach-in Refrigerator And Freezer Refrigerator model: 178SS1RHC, 178SS2RHC, 178SS3RHC Freezer model: 178SS1FHC, 178SS2FHC, 178SS3FHC Glass Door Refrigerator model: 178SS1RGHC, 178SS2RGHC Half Door Refrigerator model: 178SS1R2HC, 178SS2R4HC Half Door Freezer model: 178SS1F2HC, 178SS2F4HC Please read the manual thoroughly prior to equipment set-up, operation and maintenance - 1 -...
- Page 2 User Manual Warning DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING. DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE FRIGORIGENE.
-
Page 3: Installation
• Please read through this manual in its entirety. Field Convertible Doors The Avantco 178SS1RHC and 178SS1FHC both ship with a right-hinged door design. If you would like to convert the reach-in to a left hinged door design (solid door models), you must purchase the... - Page 4 User Manual 7. Replace the bottom hinge with the new left hand bottom bracket. It is held on with 3 bolts. 8. At this point, you will need to adjust the top and bottom spring tensioners so the door will close properly.
-
Page 5: Adjusting The Temperature
User Manual Electrical • Please ensure that the required voltage is being supplied at all times. • The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current protection. Please refer to the electrical requirements on the unit’s nameplate. •... -
Page 6: Defrost System
User Manual Freezer Control Refrigerator Control mute Running a Manual Defrost Cycle This unit is pre-programmed to run automatic defrost cycles at preset intervals. However, if you would like to run a manual defrost cycle at any time, please follow the steps below: Freezers: Press the defrost button (“def”... - Page 7 User Manual • We recommend cleaning the condenser coil at least once per month. • Clean the condenser with a commercial condenser coil cleaner, available from any kitchen equipment retailer. Cleaning the Fan Blades and Motor • If necessary, clean the fan blades and motor with a soft cloth. •...
-
Page 8: Troubleshooting
User Manual Trouble Shooting Compressor is Not Running Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. Power cord unplugged. Plug in power cord Thermostat set too high. Set thermostat to lower temperature. Cabinet in defrost cycle. Wait for defrost cycle to finish. -
Page 9: Warranty Information
5 Year Compressor Warranty In addition to the 1 year parts and labor warranty above, Avantco Refrigeration warrants the compressor on select units to be free of defects in material and workmanship for a period of 5 years from the date of delivery.
