Warning!
It will cause malfunction if the monitor is operating with unspecified power supply unit
or incorrect power voltage. Do not exposure this unit in the rain or moisture environment to reduce the
risk of fire or electric shock.
Content:
I.
Introduction .............................................................................................................................1
Features....................................................................................................................................1
Unpack the monitor .................................................................................................................2
Ⅱ.
Installation...............................................................................................................................3
I/O placement...........................................................................................................................3
To PC .......................................................................................................................................3
Touch driver.............................................................................................................................4
MSR (optional) ........................................................................................................................6
Control Buttons........................................................................................................................8
Structure of OSD settings .........................................................................................................9
Ⅲ.
For your safety ........................................................................................................................10
Ⅳ.
Support timing ........................................................................................................................10
Ⅴ.
Mechanical dimension ............................................................................................................10
Ⅵ.
FCC Warning Statement........................................................................................................11
Ⅶ.
Product General Specification...............................................................................................12
s
e
r
M
a
n
u
a
l
s
e
r
M
a
n
u
a
l
M
o
d
M
o
d
/
I
n
s
t
a
l
l
a
t
i
/
I
n
s
t
a
l
l
a
t
i
e
l
N
o
.
M
4
6
e
l
N
o
.
M
4
6
o
n
G
u
i
d
e
o
n
G
u
i
d
e
7
7
Advertisement
Table of Contents
Related Manuals for Elo TouchSystems M467
Summary of Contents for Elo TouchSystems M467
-
Page 1: Table Of Contents
Warning! It will cause malfunction if the monitor is operating with unspecified power supply unit or incorrect power voltage. Do not exposure this unit in the rain or moisture environment to reduce the risk of fire or electric shock. Content: Introduction ..........................1 Features............................1 Unpack the monitor .........................2... -
Page 2: Introduction

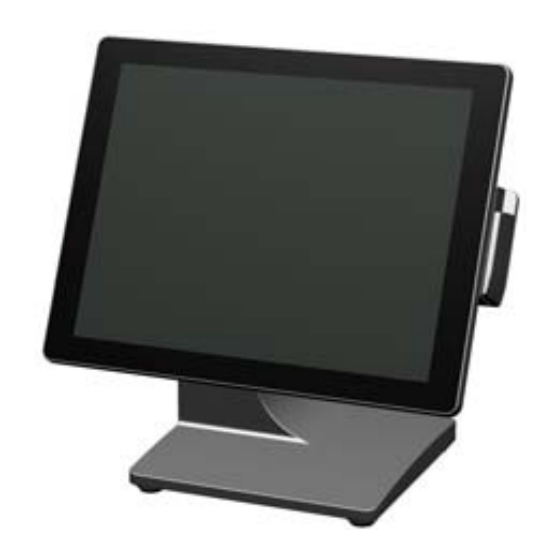

I. Introduction M467 is color TFT LCD monitor, integrate with ELO or TWN resistive touch, suitable for many types of application. Optional MSR and 2 display, please contact our regional distributor for further information. Features Optimal display resolution 1024 * 768... -
Page 3: Unpack The Monitor
Unpacking the monitor Put the monitor on a clean surface, make sure the box in upright position. Remove packing materials from inside of box. Check accessory Please make sure all the accessory are included: Standard Items a. LCD Monitor b. VGA cable c. -
Page 4: Ⅱ. Installation
Ⅱ. Installation I/O placement: 1 DC JACK 2 DVI 3 VGA 4 USB B Type 5 Dual USB A Type 6 RS232 7 RJ45(RS232) To PC: 1. Connect VGA cable from monitor to PC 2. Connect USB touch cable to PC 3. -
Page 5: Touch Driver
Touch Driver installation： TWN Touch： 1. Double click “setup.exe” from driver menu 2. Click “next” from welcome window 4. Click “next” from ready to install the 3. Click “next” from choose destination location window program 5. Click “next” from setup type 6. - Page 6 ELO Touch： WinZip Click “Unzip” from 1.Install ELO Touchscreen Driver Self-Extractor-ELO_v463.exe 4.Select Install Serial or USB Touchscreen Select Language Click “next” from Driver 5.Click-on “Yes” after Installation 6. Click-on “Finish” Calibration procedures: Double click “Elo Touchscreen” icon to run calibration function Follow 3 points linearity calibration procedures and save the data Follow free draw calibration Exit calibration menu...
-
Page 7: Msr (Optional)
MSR installation (optional)： Components of MSR Kit: Screws 1. Slide the MSR into the right position of the System. 2. Fasten the screws (x2). Version. 1.0... -
Page 8: Control Buttons
Control Buttons a.) Pressing to execute AUTO-Adjusting function. This function will set the monitor display area to the optimal position. Auto Adjusting b.) Sometimes this function can't achieve the optimal effects. Please follow the manual adjusting procedure. When the light bar move other item, the key are used to select it, and read to adjust. Menu Press the MENU key to activate the On Screen Display (OSD). -
Page 9: Structure Of Osd Settings
Structure of OSD settings: Third First Level Second Level Operating Procedure Level Press “UP” or “DOWN” to adjust H-phase & Auto Adjust H-position & V-position clock automatically. Press “UP” key to increase brightness, “DOWN” key to Brightness decrease brightness. Luminance Contrast Press “UP”... -
Page 10: For Your Safety
III. For your safety 1. When move the monitor, always switch off power and disconnect all cables to avoid any danger. 2. Please use the power and signal cables correctly when install or bend it. 3. In case of notice any abnormal smell or noise, please stop operation and call the nearest dealer or service center. -
Page 11: Fcc Warning Statement
VI. FCC Warning Statement WARNING Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 12: Product General Specification
Product General Specification Model M467 series Color Black Display size 15" Active Area 304*228 mm Optimal Resolution 1024*768 Color Arrangement RGB-stripe LCD PANEL 250 cd/m² (typ) Brightness With Touch 160 cd/m² Contrast Ratio 600 : 1 Response Time 8 ms (typ)
