RK1200T/1250B
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2019 Acnodes Corp.

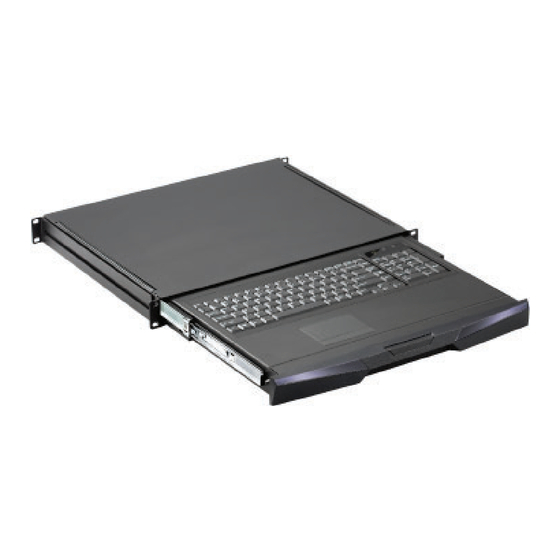

1U Rackmount Keyboard Drawer
Keyboard with Touchpad /Trackball
15.7" Short-Depth Rack Chassis
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Related Manuals for Acnodes RK1200T
Summary of Contents for Acnodes RK1200T
- Page 1 15.7" Short-Depth Rack Chassis User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, December 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.
- Page 4 Contents < Part. 1 > RK1200T | RK1250B Package Content P.1 - 2 Structure Diagram & Dimension Installation Connection < Part. 2 > Specifications P.5 - 7 Keyboard / Mouse Specifi cations...
- Page 5 < Part 1 > RK1200T | RK1250B < 1.1 > Package Content RK1200T | RK1250B unit X 1 - Pair of L-bracket with fastener screws X 1 < 1.2 > Structure Diagram Adjustable rear mounting L-bracket 104-key keyboard Mouse interchangeable module kit...
- Page 6 Weight 441.6 x 400 x 44 mm 582 x 500 x 100 mm 8.6 kg 10.1 kg RK1200T / 1250B 17.4 x 15.7 x 1.73 inch 22.9 x 19.7 x 3.9 inch 18.9 lb 22.2 lb * All dimensions stated are subject to change if options are selected / integrated to base model part codes...
- Page 7 < 1.3 > Installation- How to install L-bracket Step ■ Install left & right rear L-brackets with two fasteners shown above. ■ Leave the fasteners slightly loose. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear L-bracket to a suitable length and tighten the fasteners.
- Page 8 < 1.4 > Connection to USB Server Keyboard Drawer attached 2-in-1 K/B cable USB server < 1.4 > Connection to external KVM Keyboard Drawer attached 2-in-1 K/B cable USB console KVM Caution : The keyboard drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable.
- Page 9 < Part 2 > Specifications < 2.1 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts...
- Page 10 < 2.1 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 11 < 2.1 > SUN Keyboard / Mouse Options GS keyboard integrated with touchpad GS keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose GS keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
