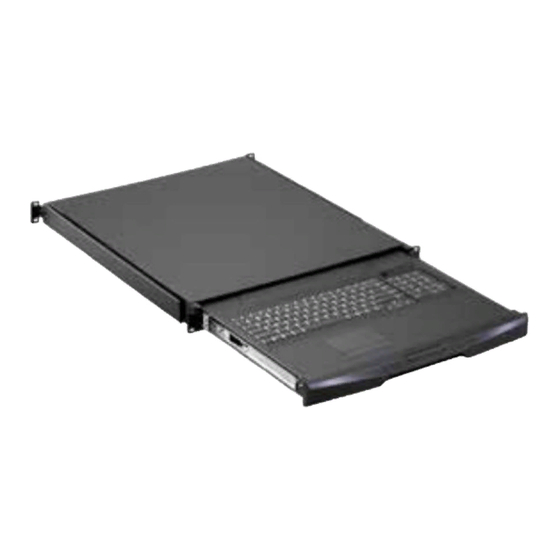

1u keyboard drawer with kvm integration 104-key keyboard with touchpad molded front panel and two point lock
Hide thumbs Also See for RK120:

Advertisement

Quick Links

Download this manual
RK120
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2022 Acnodes Corp.
1U Keyboard Drawer with KVM Integration
104-Key Keyboard with Touchpad
Molded Front Panel and Two Point Lock
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

loading
Need help?

Need help?

Do you have a question about the RK120 and is the answer not in the manual?

Questions and answers

Related Manuals for Acnodes RK120

Summary of Contents for Acnodes RK120

  • Page 1 Molded Front Panel and Two Point Lock User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > RK120 Package Content Structure Diagram & Dimension P.1-2 Installation < Part. 2 > Specifications Keyboard / Mouse Specifications P.4-6 Environmental Conditions < Part. 3 > KVM Integration...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Rk120 Package Content

    < Part 1 > RK120 < 1.1 > Package Content RK120 unit X 1 - M6 screw, cage nut & cup washer X 8 < 1.2 > Structure Diagram Installation Slides Membrane switch (KVM) 104-key keyboard Mouse interchangeable module kit...
  • Page 6 Weight 442 x 600 x 44 mm 580 x 845 x 115 mm 10.9 kg 13.2 kg RK120 17.4 x 23.6 x 1.73 inch 22.8 x 33.3 x 4.5 inch 24 lb 29 lb * All dimensions stated are subject to change if options are selected...

  • Page 7: Installation

    < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting bracket into the keyboard drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...

  • Page 8: Part. 2 > Specifications

    < Part 2 > Specifications < 2.1 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts...
  • Page 9 < 2.1 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
  • Page 10 < 2.1 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...

  • Page 11: < 2.2 > Environmental Conditions

    < 2.2 > Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random vibration...

  • Page 12: Part 3 > Kvm Integration

    < Part 3 > KVM Integration RK120C - Rackmount Keyboard Drawer Integrated With Cat6 KVM Switch Local Remote 8-port 16-port 32-port Cat6 Matrix MKCP1613 MKCP3213 MKCP1624 MKCP3224 MKCS1602 MKCS3202 MKCS1603 MKCS3203 MKCS1604 MKCS3204 RK120CM - Rackmount Keyboard Drawer Integrated With Matrix Cat6 KVM Switch Local Remote 8-port...
