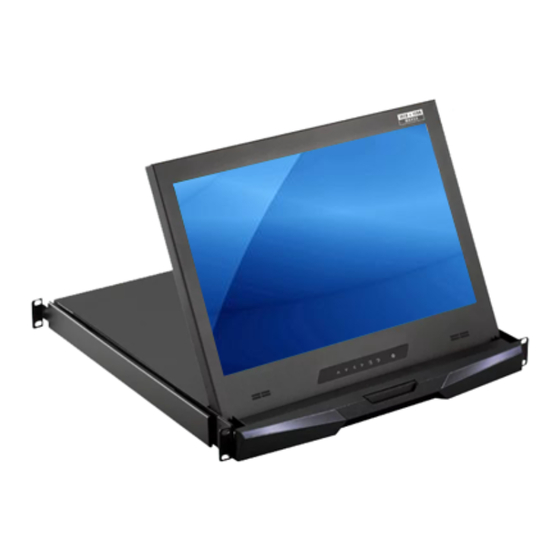

Acnodes RP2117 User Manual

1u rackmount monitor drawer
Hide thumbs

Advertisement

Quick Links

Download this manual
RP2117
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2021 Acnodes Corp.
1U Rackmount Monitor Drawer
16.2" 1920 x 1200 WUXGA LCD Monitor
VGA + DVI-D Video Input
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

loading
Need help?

Need help?

Do you have a question about the RP2117 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acnodes RP2117

Summary of Contents for Acnodes RP2117

  • Page 1 VGA + DVI-D Video Input User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > RP2117 Package Content Structure Diagram & Dimension P.1-2 Installation < Part. 2 > Specifications / OSD Product Specifications P.4-5 On-screen Display Operation ( OSD ) P.6-7 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.8-9...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Rp2117 Package Content

    < Part 1 > RP2117 < 1.1 > Package Content RP2117 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
  • Page 6 Weight 441.6 x 480 x 44 mm 588 x 758 x 120 mm 11 kg 15 kg RP2117 17.4 x 18.1 x 1.73 inch 23.1 x 29.8 x 4.7 inch 24.2 lb 33 lb The weight is only for the pure models. It varies with accessories & options such as SDI,...

  • Page 7: Installation

    < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...

  • Page 8: Part. 2 > Specifications / Osd

    < Part 2 > Specifications / OSD < 2.1 > Product Specifications Panel Size ( diagonal ) 16.2-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M, 8-bit...
  • Page 9 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random vibration Physical Product ( W x D x H ) 441.6 x 480 x 44 mm Specification...

  • Page 10: On-Screen Display Operation ( Osd )

    < 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
  • Page 11 < 2.2 > On-screen Display Operation ( OSD ) Auto adjust : Automatically adjust sizes, centers and fine tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H. Position : Align the screen image left or right V.

  • Page 12: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 13 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...

  • Page 14: Part. 3 > Options

    < Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module support 1080p @60Hz...
  • Page 15 < 3.2 > Options : Touchscreen & Driver 17" USB Touchscreen Specification Model e-Resistive Technology 5-Wire Resistive Touch Point Single Method Stylus or Finger Activation Force ≤ 50g / Stylus=R0.8 Durability 10 million touches Response Time 15 ms Optical Transmittance 80% ±...

  • Page 16: Hdmi

    < 3.3 > Options : - HDMI ( HDMI 1.4, CEA-861-E ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue.
  • Page 17 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
