Acnodes RK120D User Manual

Acnodes RK120D User Manual

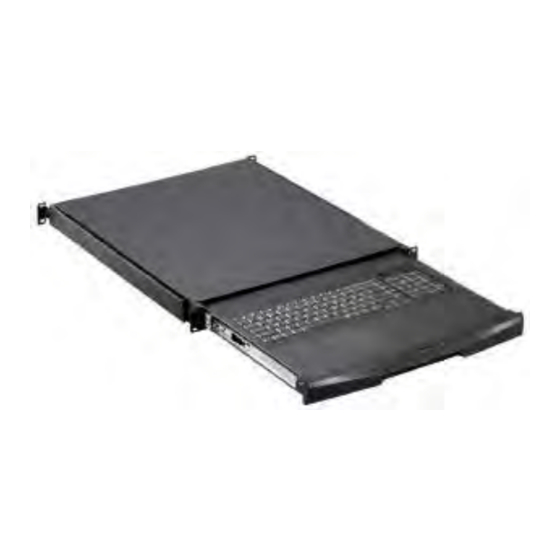

1u rackmount keyboard drawer, 104-key industrial keyboard, 8 port kvm switch

Advertisement

Quick Links

All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RK120D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Acnodes RK120D

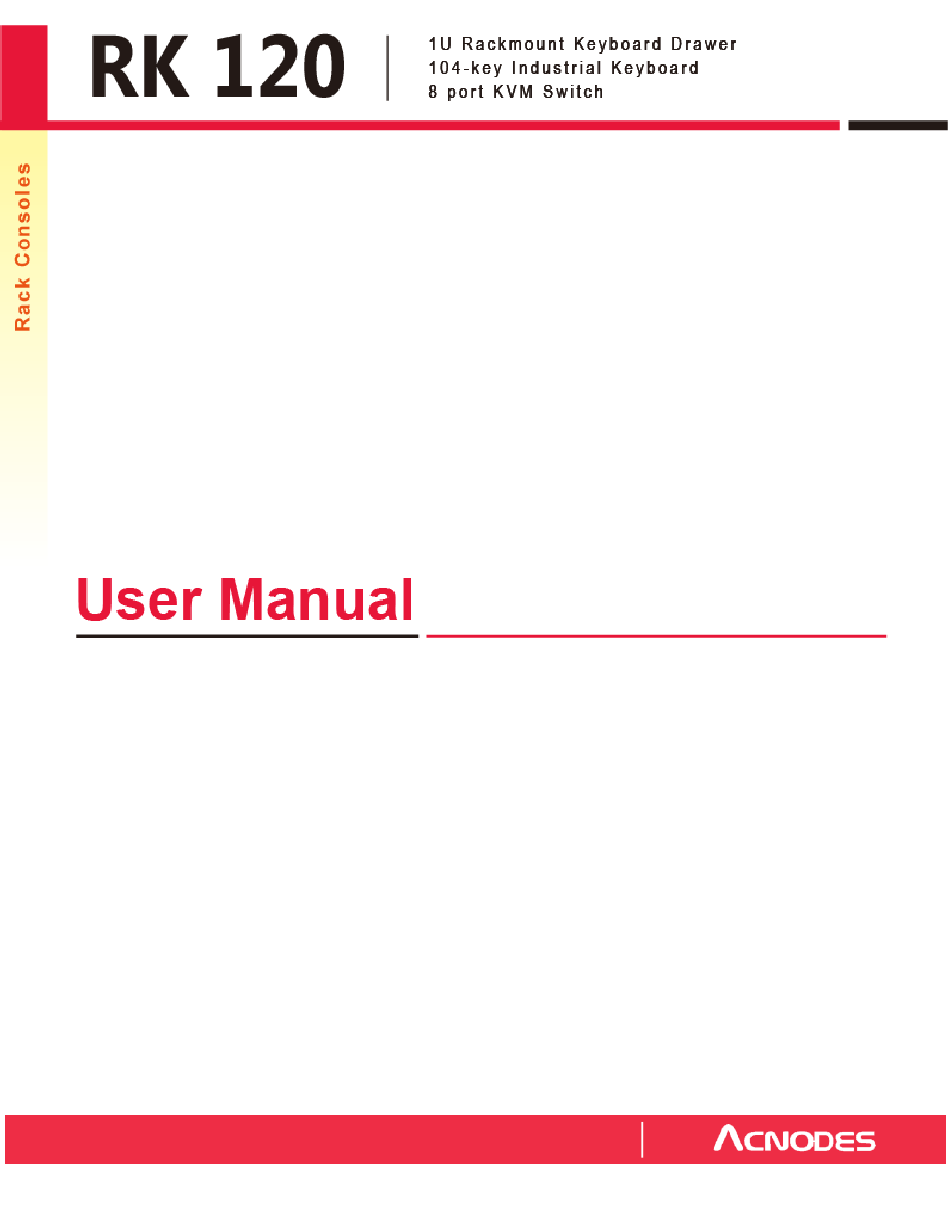

  • Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
  • Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
  • Page 3 < Part. 3 > KVM Integration http://www.acnodes.com/files/downloads/SKVM-UM.pdf Local Remote 8- port 16-port Combo DB-15 KVM KP802 KP1602 KV802 KV1602 KVS801 KVS1601 htt p:// www. acnodes.com/files/downloads/MKVM-UM.pdf Local Remote 8- port 16-port Matrix DB-15 KVM MKP813 MKP1613 MKP824 MKP1624 MKS802 MKS1602 MKS803 MKS1603...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > < 1.1 > Package Content RK1 20 unit X 1 - EKC-3 6ft Combo k eyboard mouse cable X 1 - M6 screw, c age nut & cup washer X 8 < 1.2 > Structure Diagram Installation Slide 104-key keyboard Mouse interchangeable module kit...
  • Page 6 < 1.2 > Dimension Front View UNIT : mm Sid e View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 550 x 44 mm 580 x 749 x 100 mm 11 k g 14 kg...
  • Page 7 < 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting bracket into the keyboard drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦...
  • Page 8 < Part 2 > < 2.1 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Software support Linux / Mac...
  • Page 9 < 2.1 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
  • Page 10 < 2.1 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca p s Scro ll Comp o s e Ca p s Scro l l Comp o s e S keyboard integrated with touchpad / trackball ■...
