RPH1173
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2021 Acnodes Corp.

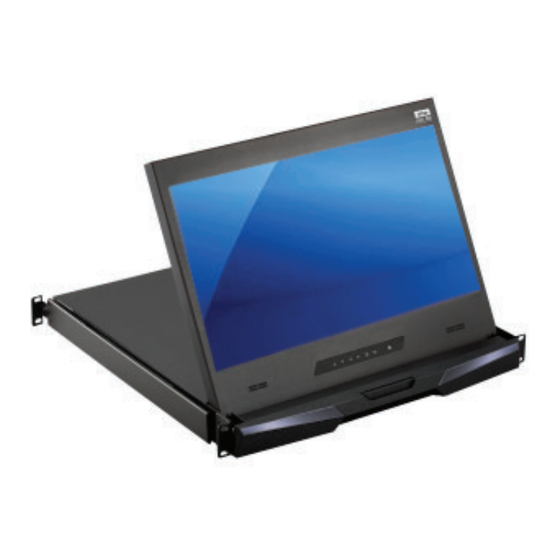

1U Sunlight Readable Rackmount Drawer
17.3" 1920 x 1080 FHD Industrial LCD Monitor
1000-Nits High Brightness Display
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Related Manuals for Acnodes RPH1173
Summary of Contents for Acnodes RPH1173
- Page 1 1000-Nits High Brightness Display User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents < Part. 1 > RPH1173 Package Content Structure Diagram & Dimension P.1-2 Installation < Part. 2 > Specifications / OSD Product Specifications P.4-5 On-screen Display Operation ( OSD ) P.6-7 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input HDMI &...
- Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > < 1.1 > Package Content RPH1173 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 6 Weight 441.6 x 480 x 44 mm 588 x 758 x 120 mm 11 kg 15 kg RPH1173 17.4 x 18.1 x 1.73" 23.1 x 29.8 x 4.7” 24.2 lb 33 lb The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 7 < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...
- Page 8 < Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) 1000 Contrast Ratio ( typ. ) 600:1 Color 16.7 M, 8-bit...
- Page 9 Physical Product ( W x D x H ) 441.6 x 480 x 44 mm Specifi cation 17.4 x 18.9 x 1.73 inch Packing ( W x D x H ) 588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch Net Weight 11 kg / 24.2 lb Gross Weight...
- Page 10 < 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Acnodes' SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 13 < 3.2 > Options : - HDMI ( HDMI 1.3, HDCP 1.1 ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen.
- Page 14 < 3.3 > Options : Touchscreen & Driver 17" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Method Stylus or Finger Activation Force ≤ 50g / Stylus=R0.8 Durability 10 million touches Response Time 15 ms Optical Transmittance 80% ±...
- Page 15 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 35 mA - Full load 4880 mA 2442 mA 749 mA...
