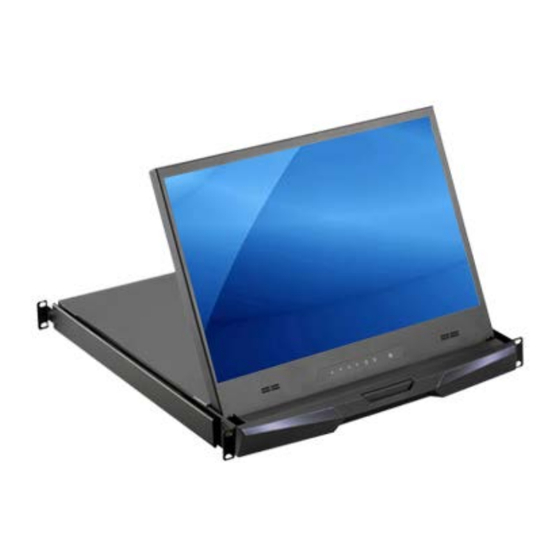

Acnodes RPW1190 User Manual

1u rackmount monitor drawer 19" 1440 x 900 widescreen lcd monitor vga + dvi-d video input
Hide thumbs

Advertisement

Quick Links

Download this manual
RPW1190
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2021 Acnodes Corp.
1U Rackmount Monitor Drawer
19" 1440 x 900 Widescreen LCD Monitor
VGA + DVI-D Video Input
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

loading
Need help?

Need help?

Do you have a question about the RPW1190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acnodes RPW1190

Summary of Contents for Acnodes RPW1190

  • Page 1 VGA + DVI-D Video Input User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > RPW1190 Package Content Structure Diagram & Dimension P.1-2 Installation < Part. 2 > Specifications / OSD Product Specifi cations P.4-5 On-screen Display Operation ( OSD ) P.6-7 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input HDMI, S-Video + BNC &...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: < 1.1 > Package Content

    < Part 1 > < 1.1 > Package Content RPW1190 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
  • Page 6 Weight 441.6 x 460 x 44 mm 588 x 758 x 120 mm 13 kg 17 kg RPW1190 17.4 x 18.1 x 1.73 inch 23.1 x 29.8 x 4.7 inch 28.6 lb 37.4 lb The weight is only for the pure models. It varies with accessories & options such as SDI,...

  • Page 7: Installation

    < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting bracket into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...

  • Page 8: Product Specifi Cations

    < Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M...
  • Page 9 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 441.6 x 460 x 44 mm Specifi...

  • Page 10: On-Screen Display Operation ( Osd )

    < 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
  • Page 11 < 2.2 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
  • Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. LCD displays, Designed with input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.

  • Page 13: Part. 3 > Options

    < 3.2 > Options : - HDMI ( HDMI 1.2 / HDCP 1.1 - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) Either HDMI or DVI-D can be selected.
  • Page 14 < 3.3 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
