RP3117
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2021 Acnodes Corp.

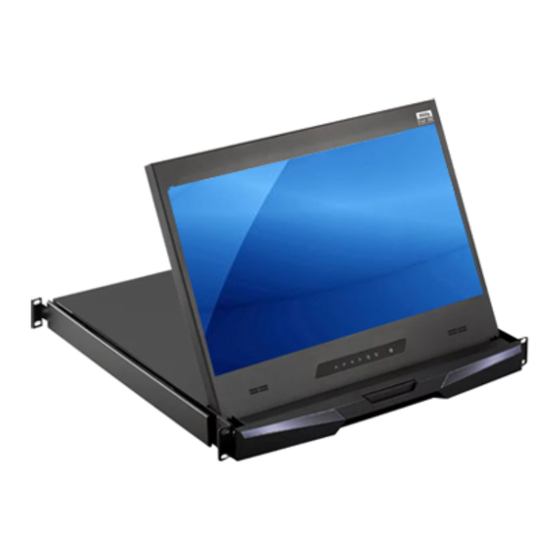

1U Rackmount Monitor Drawer
17.3" 1920 x 1080 Full HD LCD Monitor
VGA + DVI-D Video Input
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes RP3117
Summary of Contents for Acnodes RP3117
- Page 1 VGA + DVI-D Video Input User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RP3117 Package Content Structure Diagram & Dimension P.1-2 Installation < Part. 2 > Specifications / OSD Product Specification P.4-5 On-screen Display Operation ( OSD ) P.6-8 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.10... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Rp3117 Package Content
< Part 1 > RP3117 < 1.1 > Package Content RP3117 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 < 1.2 > Structure Diagram... - Page 6 Weight 441.6 x 480 x 44 mm 588 x 758 x 120 mm 11 kg 15 kg RP3117 17.4 x 18.1 x 1.73 inch 23.1 x 29.8 x 4.7 inch 24.2 lb 33 lb The weight is only for the pure models. It varies with accessories & options such as SDI,...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... -
Page 8: Part. 2 > Specifications / Osd
< Part 2 > Specifications / OSD < 2.1 > Product Specifications Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M, 8-bit... - Page 9 Physical Product ( W x D x H ) 441.6 x 480 x 44 mm Specification 17.4 x 18.9 x 1.73 inch Packing ( W x D x H ) 588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch Net Weight 11 kg / 24.2 lb Gross Weight...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Posit H-Position...
- Page 12 < 2.2 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting MISC Signal source : Select the signal source - DP / HDMI1 / HDMI2 Mute : Turn off the surrounding sound Audio in : Auto / Line in / DP Volume...
-
Page 13: < Part 3 > Options
< Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with displays, input module support 1080p @60Hz... - Page 14 < 3.2 > Options : DP Option - Display Port ( DP 1.0, HDCP 1.3 ) AC Input 100~240V HDMI Option - HDMI HDMI ( HDMI 1.4, HDCP 1.4 ) AC Input 100~240V BNC Option - Composite ( BNC ) AC Input 100~240V AV4.4 Option...
- Page 15 < 3.3 > Options : Touchscreen & Driver 17" USB Touchscreen Specification Model e-Resistive Technology 5-Wire Resistive Touch Point Single Method Stylus or Finger Activation Force ≤ 50g / Stylus=R0.8 Durability 10 million touches Response Time 15 ms Optical Transmittance 80% ±...
- Page 16 < 3.3 > Options : Touchscreen & Driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4.
- Page 17 < 3.3 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
