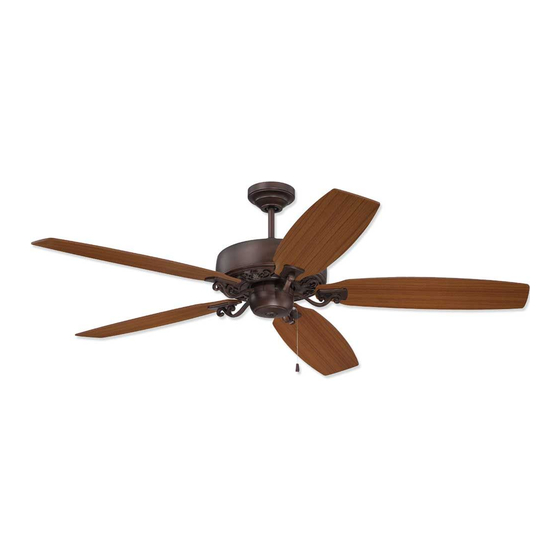

Patterson
Installation Guide
For Model:
PAT64
E192641
net weight of fan: 27.93 lb (12.67 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 5
Warranty. pg. 8
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Patterson and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Craftmade Patterson

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Patterson Installation Guide For Model: PAT64 Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly.
  • Page 2: Safety Tips

    SAFETY TIPS WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
  • Page 4: Installation Preparation

    blade edge 3. Installation Preparation. 7 feet inches To prevent personal injury and damage, ensure (2.13 m) (76 cm) that the hanging location allows the blades a clearance of 7 feet (2.13m) from the floor and 30 in (76cm) from any wall or obstruction. 12 ft.
  • Page 5: Fan Assembly. Pgs

    5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging hanging ball ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Loosen yoke set screws and nuts at top of motor housing.
  • Page 6: Wiring

    5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and safety cable loop able to support the fan, you are now ready to hang your wood fan. Grab the fan firmly with two hands. Slide downrod ceiling through opening in hanging bracket and let hanging joist...
  • Page 7: Canopy Assembly

    7. Canopy Assembly. hanging bracket Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging screw bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.
  • Page 8: Switch Housing Assembly

    motor 9. Switch Housing Assembly. housing Remove 3 screws from outer edge of switch housing plate (save screws for later use). male plug Remove 1 screw from fitter plate on underside fitter plate of motor and partially loosen the other 2 screws.
  • Page 9: Troubleshooting

    Problem: Fan fails to operate. Service at 1-800-486-4892 to arrange for return of fan. Solutions: Return fan, shipping prepaid, to Craftmade. We will repair 1. Check wall switch to fan. or ship you a replacement fan, and we will pay the return shipping cost.
  • Page 10 LEER ESTAS INSTRUCCIONES Y GUARDARLAS PARA UTILIZACION FUTURA Patterson Guía de instalación Para modelo: PAT64 Indice de materias: Sugerencias de seguridad. Pág. 1 Desempaquetado del ventilador. Pág. 2 Inventario de piezas. Pág. 2 Preparación para la instalación. Pág. 3 Instalación del soporte de montaje. Pág. 3 Ensamblaje del ventilador.
  • Page 11 SUGERENCIAS DE SEGURIDAD. ADVERTENCIA: para evitar la posibilidad de una descarga eléctrica, desconectar la corriente en la caja de fusibles principal o el interruptor protector antes de iniciar la instalación del ventilador o antes de repararlo o instalar accesorios. LEER TODAS LAS INSTRUCCIONES E INFORMACION DE SEGURIDAD CUIDADOSAMENTE ANTES DE INSTALAR SU VENTILADOR Y GUARDAR ESTAS INSTRUCCIONES.
  • Page 12 1. Desempaquetado del ventilador. Abrir el empaque cuidadosamente. Sacar los artículos del embalaje. Sacar el motor y ponerlo en una alfombra o en el embalaje para evitar rayar el acabado. Guardar la caja de cartón o el empaquetamiento original en caso de que tenga que mandar el ventilador para alguna reparación.
  • Page 13 3. Preparación para la instalación. borde del aspa 76cm Para prevenir daño corporal y otros daños, estar seguro de que el lugar en donde va a colgar el ventilador le 2,13m pulg.) permite un espacio libre de 2,13m (7 pies) entre las (7 pies) puntas de las aspas y el piso y 76cm (30 pulg.) entre las aspas y cualquier pared u otra obstrucción.
  • Page 14 5. Ensamblaje del ventilador. perno de tope tornillo de fijación Quitar la bola que sirve para colgar del tubo provisto aflojando el tornillo de fijación de la bola que sirve para bola que colgar. Bajar la bola que sirve para colgar y sacar el perno sirve para de tope y luego quitar la bola que sirve para colgar colgar...
  • Page 15 5. Ensamblaje del ventilador. (cont.) bucle del cable Ya que esté sujetado el soporte de montaje a la caja de salida y de seguridad viga de capaz de apoyar el ventilador, usted está listo para colgar el madera ventilador. Agarrar el ventilador firmemente con las dos manos. Deslizar el tubo por la abertura del soporte de montaje y dejar que se detenga la bola en el soporte de montaje.
  • Page 16 7. Colocación de la cubierta decorativa. Localizar los 2 tornillos en la parte inferior del soporte soporte de de montaje y quitar el tornillo que está localizado más montaje cerca del extremo abierto del soporte de montaje. Aflojar parcialmente el otro tornillo. Elevar la cubierta tornillo decorativa hasta el soporte de montaje.
  • Page 17 9. Instalación de la caja de encendido. bastidor del motor Quitar los 3 tornillos de la placa de la caja de encendido (guardar los tornillos para uso más adelante). enchufe Quitar 1 tornillo de la placa de conexión en la parte placa de macho conexión...
  • Page 18 Craftmade. Nosotros repararemos el motor al comprador o le enviaremos uno de reemplazo y Craftmade pagará los gastos de envío de regreso. Problema: El ventilador se tambalea. GARANTIA LIMITADA DE 6 AÑOS hasta DE POR VIDA: Soluciones: CRAFTMADE reparará...
