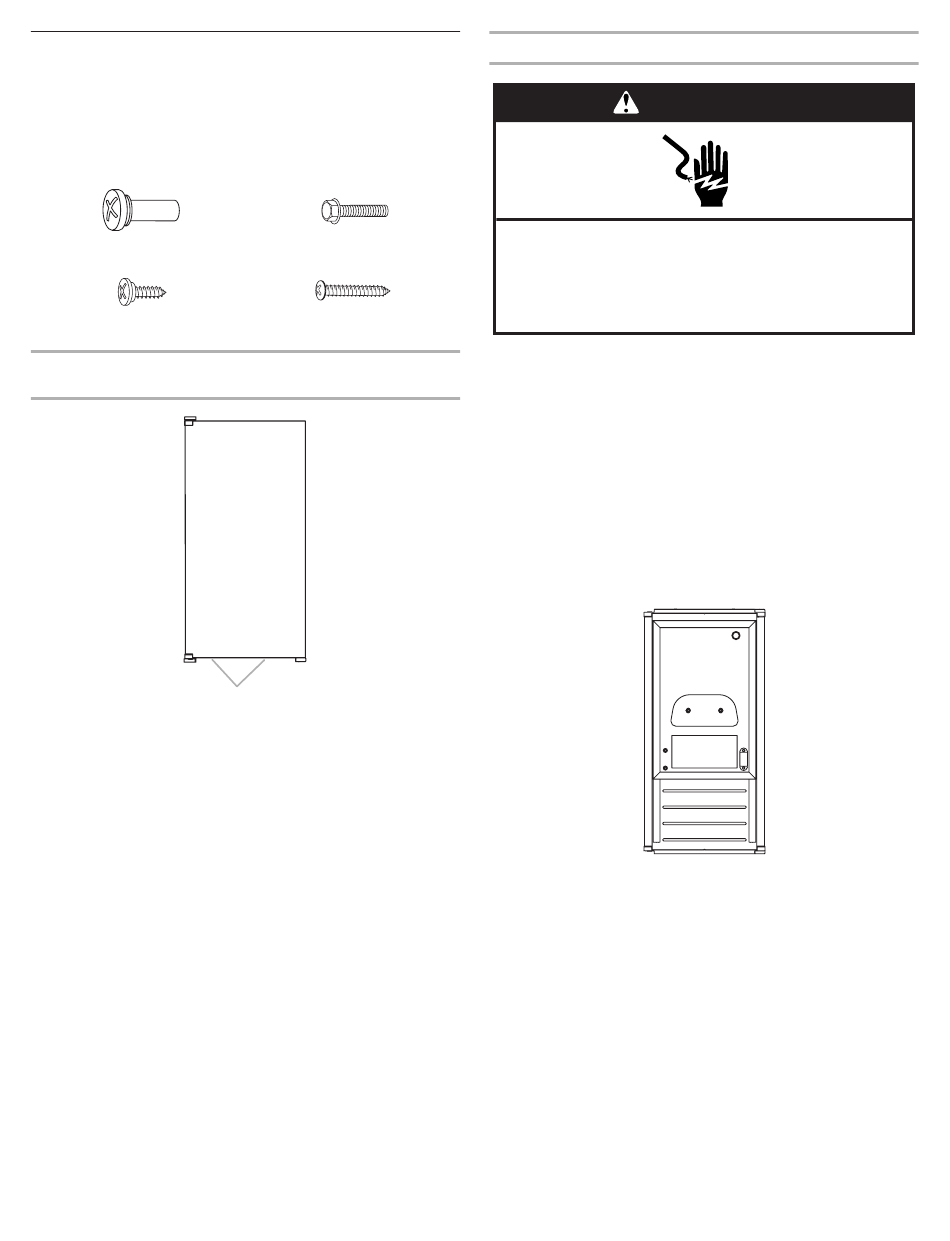

Door Reversal—Side Swing Only
Tools Needed
Gather the required tools and parts before starting installation.
5/16" wrench
■
1/4" wrench
■
Hinge pin
Handle screw
Remove Stainless Steel Door Wrap Panel
(on some models)
A. Hex-head screws
1. Remove the two hex-head screws located under the stainless
steel door wrap panel flange on the bottom of the door.
2. Pull up and outward on the door wrap panel from the bottom.
3. Rotate the door wrap panel until it separates from the door
and pull up.
NOTE: Be sure the edge guards do not separate from the
door wrap panel.
Flat putty knife
■
Phillips screwdriver
■
5/16" hex-head hinge screw
End cap screw
A
Door Stop and End-Cap Reversal
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Unplug the ice maker or disconnect power.
2. Remove the handle screws and handle (on some models).
3. Remove the hinge pin from the top hinge.
4. Remove the door from the hinges and replace the top hinge
pin.
5. Remove the screw and door stop at corner A. Remove the
screw and end cap at corner C. Place the door stop at corner
C, and tighten screw. Place the end cap at corner A, and
tighten screw.
6. Remove the screw and door stop at corner D. Remove the
screw and end cap at corner B. Place the door stop at corner
B, and tighten screw. Place the end cap at corner D, and
tighten screw.
A
D
A. Top corner open (no end cap)
B. Beginning top corner end cap
7. Depending on your model, the brand badge for the front door
of your ice maker may be in the package with the Use and
Care Guide. Fasten the brand badge to the door.
8. Set the door aside.
B
C
C. Beginning bottom corner end cap
D. Bottom corner open (no end cap)
9
