Voxx Electronics Elite Series Owner's Manual

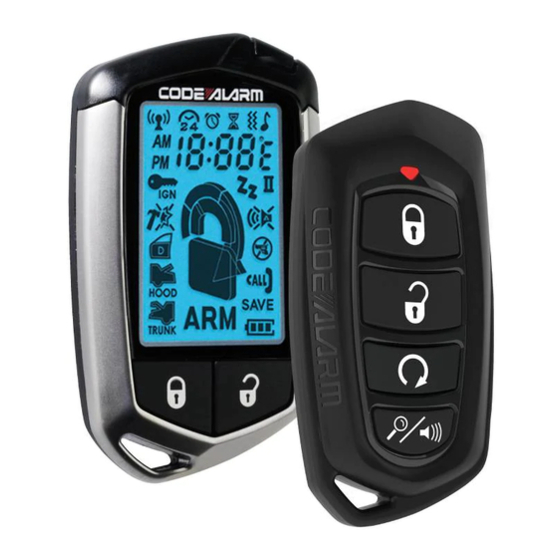

Deluxe vehicle security and remote start system with 2-way confirming lcd remote control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Elite
SERIES
Owner's Guide
For Model:
ca6555E
Deluxe Vehicle Security and
Remote Start System with 2-Way Confirming
LCD Remote Control
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
2020 Voxx Electronics Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite Series and is the answer not in the manual?

Questions and answers

Related Manuals for Voxx Electronics Elite Series

Summary of Contents for Voxx Electronics Elite Series

  • Page 1 IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information. 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Table of Contents Using Your Remote Control ..............3 Arming the Security System .............. 3 Passive Arming Bypass ..............3 Bypassing the Shock Sensor ............3 Hidden Alarm Function ..............3 Disarming the Security System ............3 Two Stage Door Unlock (optional) ............. 4 Activating Trunk Release (optional) ...........

  • Page 3: Using Your Remote Control

    If your system is set up for 2 step unlock, a third press of unlock will activate the audible response. *Throughout this manual, ‘press’ refers to pressing for less than 1 second; ‘press and hold’ refers to pressing for more than 2 seconds. 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 4: Two Stage Door Unlock (Optional)

    Two Stage Door Unlock (Optional) If this feature is enabled on your system, pressing the button one time will unlock only the driver’s door. Press again within three seconds to unlock the remaining doors. Activating the Trunk Release Feature (Optional) If this feature is enabled on your system, pressing and holding the button for 3 seconds will open the vehicle’s trunk or hatch.

  • Page 5: Using The Progressive Car Finder Feature

    System ARM/DISARM chirps can be toggled ON or OFF without entering the programming feature banks. Turn the ignition ON then OFF. Press and release the valet/programming button 3 times. The system will respond with 1 chirp for ON or 2 chirps for OFF. 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 6: User Selectable Led

    User Selectable LED This feature will control whether the LED is ON or OFF when the system is Armed/ Locked and can be toggled ON or OFF without entering the programming feature banks. Turn the ignition ON, OFF, ON, OFF. Press and release the valet/programming button 3 times.

  • Page 7: Using Your Remote Vehicle Starter

    The system will exit remote start ready mode if any of the following occur: Open any door Open the hood or trunk (if connected) Press the brake Release the parking brake Turn the ignition ON 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 8: Remote Starting Your Vehicle

    Remote Starting Your Vehicle To activate the remote start function, press and release the button 2 times within 2 seconds. The system will sound, the parking lights will flash 1 time and the system will check the vehicle to ensure it is safe to start. If all safety parameters are correct, the vehicle will start.

  • Page 9: Using The "Quick-Stop" Feature

    The unit enters Quick Stop Mode and will remain running until remote start time-out and then shut down. (Remote Start Ready Mode is NOT active) Note: Do not leave children or animals unattended in the vehicle when using the quick-stop feature. 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 10: Preheating Or Precooling The Vehicle's Interior

    Preheating or Precooling the Vehicle’s interior Before exiting the vehicle, set the temperature controls to the desired setting and operation. After the system starts the vehicle, the heater or air conditioner will activate and heat or cool the vehicle’s interior to your setting. User Programmable Run Time / Run Time Extension The system has the ability to allow the user to extend the time the vehicle will be running under control of the remote start.

  • Page 11: Operating The 2 / 3 Hour Start Up Timer Mode

    2 times. Release the valet button. To exit the 2 / 3 hour start up timer mode: Turn the vehicle’s Ignition ON. Activate the remote vehicle start feature using the remote control. 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 12: Operating The Daily Start Timer

    Operating the Daily Start Timer The system has the ability to start your vehicle based on a 24-hour countdown timer. This feature requires a two-part activation sequence. From the remote, while in range of the vehicle, pressing both the & buttons together will activate the 24 hour countdown timer (the vehicle will start 24 hours from this time).

  • Page 13: Status Led, Light Flashes And Siren/Horn Indications

    Manual Transmission Mode not ready 7 Flashes Tach not learned / Crank Average not learned To manually enter diagnostics and view the last shutdown, turn the ignition ON and press and release the button. 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 14: Additional 2-Way Lcd Remote Control Functions

    Additional 2-Way LCD Remote Control Functions Additional Features of the Optional 2 Way LCD Remote Control Check Vehicle Status Press and release 2 times then press within 3 seconds, the transmitter will display the current status of the vehicle. Display Illumination Press and hold the button for 1 second.
  • Page 15 OFF Countdown Timer Hour Press to increase or to decrease Countdown Timer Minute Press to increase or to decrease Countdown Timer ON / OFF Press to turn ON or to turn OFF 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 16: Lcd Remote Control Icon's

    LCD Remote Control ICON’s UNLOCK LOCK VALET MODE SYSTEM ARMED IGNITION ON/TRIGGER TRANSMITTING TRUNK TRIGGER DOOR TRIGGER HOOD TRIGGER SHOCK / TILT TRIGGER SYSTEM TRIGGER TIME COUNT DOWN BATTERY INDICATOR BATTERY SAVE MODE MELODY MODE VIBRATE/SILENT MODE TIME DISPLAY 2 CAR MODE ALARM CLOCK ENGINE RUNNING TIMER / TEMP.

  • Page 17: Remote Control Buttons & Functions

    Transmitter LED flashes 1 time AUX 2 Push and Hold (3 Sec) AUX 3 Push and Hold (3 Sec) AUX 4 Push and Hold (3 Sec) AUX 5 Push and Hold (3 Sec) 2020 Voxx Electronics Corporation. All rights reserved.
  • Page 18 LCD 5-Button Car Find / Lock Unlock Start Function Operation Method Transmitter Panic Lock Press and Release Unlock Press and Release 2 Step Unlock Press and Release 2 times Trunk Push and Hold (3 Sec) Car Finder Press and Release Panic Push and Hold (3 Sec) Press and Release (1 or 2 times...

  • Page 19: Replacing Remote Control Batteries

    Remove the old AAA battery, observing the +/- symbols on the battery, and replace with a new AAA battery. Gently slide the battery cover on to the back of the remote control. Test operation of the remote control. 2020 Voxx Electronics Corporation. All rights reserved.

  • Page 20: Programming Replacement Remote Controls

    Programming Replacment Remote Controls Remote Transmitter Programming Turn the ignition ON. Press and hold the valet/override button located on the antenna. Within 10 seconds the system will chirp (3) three times. Press 1 button of each transmitter you wish to program. The system will respond with 1 chirp for each accepted transmitter.

  • Page 21: Warranty Information

    LIMITED LIFETIME WARRANTY Applies to Code Alarm Series Control Modules, Sirens, Sensors, and Relays. Voxx Electronics Corporation (the Company) warrants to the original purchaser of this product that should this product or any part thereof, (other than transmitters) under nor-...
  • Page 22 ca6555E Owners revB...
  • Page 23 2020 Voxx Electronics Corporation. All rights reserved.
  • Page 24 Voxx Electronics Corporation. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
