All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Related Manuals for Acnodes KD82212
Summary of Contents for Acnodes KD82212

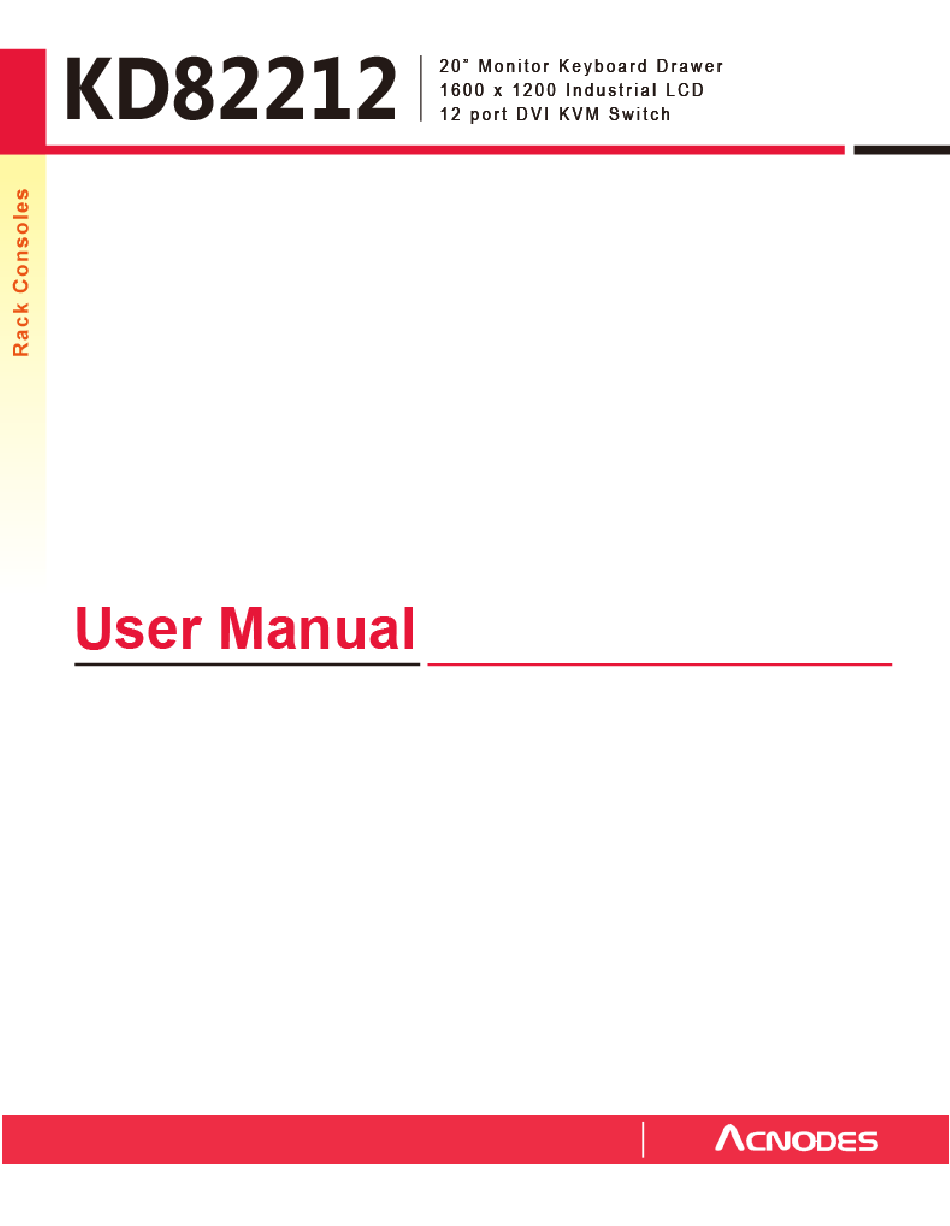

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > KD82212 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 < Part. 2 > Specifications / OSD Product Specifications P.5 - 6 Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.8 - 9... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content KD822 12 unit X 1 - 6f t Combo KVM cable X 1 - Power cord X 1 - M6 s crew, ca ge nu t & cup w asher X 8 <... - Page 6 (W x D x H) (W x D x H) Weight Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 14.5 k g 22 kg KD82212 17.3 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 32 lb 48 lb...
-
Page 7: Installation
< 1.3 > Installation - How to install 1U 20" LCD Tray Step ¦ Attach the left and right mounting bracket to Rear s ide r ack 19" mounting rails. Right bracket ¦ Adjust the mounting bracket to fit your rack. ¦... - Page 8 < 1.3 > Installation- How to use the drawer Press the handle button and slide out the drawer. Flip up the LCD to a suitable angle. Operate the LCD console drawer.
-
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M Viewing Angle ( L/R/U/D ) - Page 10 Environmental Operating Temperature 0 to 50°C degree Conditions Hum idity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Hum idity 5~90%, non-condensing Shock 10G acceleration (11m s duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 439.5 x 650 x 44 mm Specification 17.3 x 25.6 x 1.73 inc h...
-
Page 11: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 12: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r... - Page 13 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
-
Page 14: Options
< Part 3> <3.1 > Options : - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Page 15 < 3.2 > Options : DC Power Model Input rating Inp ut voltage: 1 2-Volt 24-Volt 48-Volt Inp ut range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Inp ut current - No load 50 mA 50 mA 5 0 mA - Full load 4950 mA 2450 mA...
-
Page 16: Kvm Integration
<Part 4> KVM Integration < 4.1 > KVM port connection USB Servers DVI-D KVM port Audi o Power USB Servers D VI KVM C ab le 6 feet DVI KVM c able 15 feet DVI KVM cable ( Server end : DVI-D + USB + Audio ) ( KVM port : DVI-D + USB3.0 ) IP console, remote c onsole, daisy- chain and OSD m enu are NOT available for this model. -
Page 17: Specifications
< 4.2 > Specifications KVD1201 KVM Port ¯ Number of ports: Connector: DVI-D connector USB 3.0 connector ( combined for keyboard, mouse & audio ) Connectivity: Com bo 4-in-1, KV M cable, 6 or 15 feet Audio Out 1 x 3.5mm stereo audio ¯... -
Page 18: Kvm Button
4.3 KVM Button Power ON ¦ Turn off all servers and KVM s witches ¦ Make sure all cables / c onnectors are properly connec ted ¦ Recommend Power ON sequence is m onitor, K VM switch finally computer Front Panel - Port LED Indications DVI-D K VM 12 ports PC port LEDs Channel... -
Page 19: Kvm Hotkey
4.4 KVM Hotkey Hotkey Function Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to nex t port Scroll Lock + Scroll Lock + Port no. Switch to specific port Scroll Lock + Scroll Lock + Auto scan for powered on PC Scroll Lock + Scroll Lock + Enable / Disable beeper sound... -
Page 20: Dc Power 12V, 24V, 48V Input
4.5 DC Power 12V, 24V, 48V Input Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
