All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes KP802
Summary of Contents for Acnodes KP802

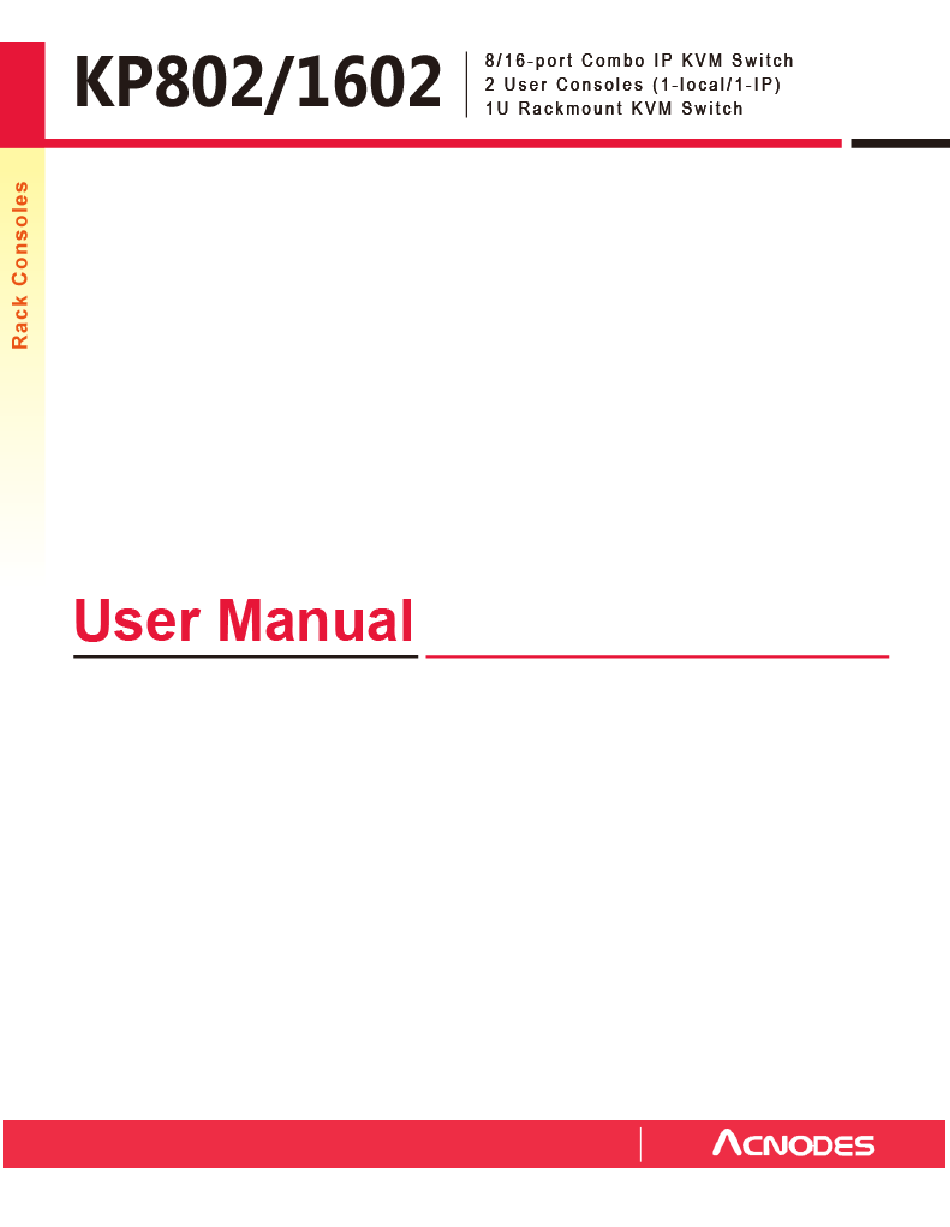

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Le ga l Informa tion First En glish p rinting , Oct ober 2 002 In form ation in this docum ent has be en ca re fully che cked for accuracy; ho wever, no g uara ntee is g iven to th e correctne ss o f th e con ten ts.
-
Page 3: Table Of Contents
Contents < Part 1 > Combo 2-console KVM KP802 KP1602 Package contents KVM port connection IP & Local console connection IP console setting KVM Cascade Specifications < Part 2 > Usage KVM Button Password KVM OSD KVM Hotkey & Remote Console Hotkey DC power 12V, 24V, 48V Input P.10... - Page 4 Before Installation ¦ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ¦ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1 > Combo 2-Console Kvm

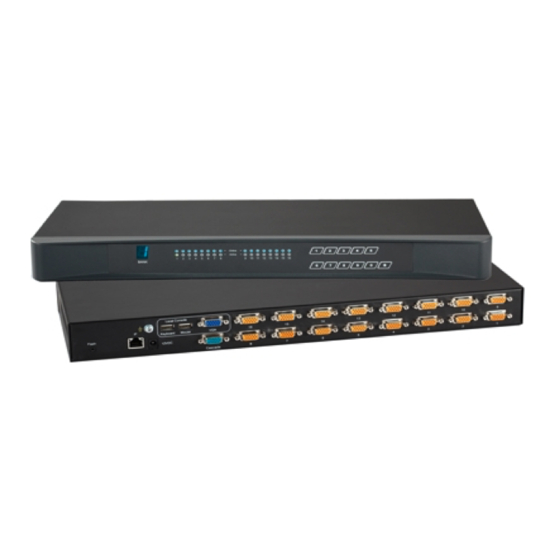

< 1.1 > Package Contents Combo IP KVM KP802 / KP1602 KVM u nit • KP802 or KP1602 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1... -
Page 6: Kvm Port Connection
< 1.2 > KVM port connection Combo IP KVM ¦ 6 / 10 / 15 ft Combo KVM cable USB Servers ¦ Support PS/2 or USB server Combo KVM port Combo KVM cable support PS/2 or USB server PS/2 Servers <... -
Page 7: Ip Console Setting
< 1.4 > IP console setting After the cable connection, please take the following steps to configure the IP KVM : 1. Download IPKVMsetup.exe 2. Double click IPKVMsetup.exe to configure the IP KVM by device setup as below. 3. Click Refresh Device to search the connected IP KVM 4. -
Page 8: Kvm Cascade
< 1.5 > KVM Cascade ¦ Cascade up to 8 levels, 128 servers ¦ Cascading multiple KVM with cascade cable. Cascaded KVMs from level 2 to 8 must be the models of KVS801 / KVS1601. When multiple combo KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 9: Specifications
< 1.6 > Specifications KP802 KP1602 KVM Port ¯ Number of ports: 8 or 16 Connector: combo connector Connectivity: Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet Local Console ¯ Graphic connector: 1 x DB-15 VGA Resolution:... -
Page 10: Part 2. Usage
Part 2. Usage 2.1 KVM Button Power ON ¦ Turn off all servers and KVM switches ¦ Make sure all cables / connectors are properly connected ¦ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications 8 ports Bank no. -
Page 11: Password
2.2 Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ¦ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 12: Kvm Osd
2.3 KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port PgUp/PgDn... -
Page 13: Kvm Hotkey & Remote Console Hotkey
2.4 KVM Hotkey & Remote Console Hotkey Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp / PgDn... -
Page 14: Dc Power 12V, 24V, 48V Input
2.5 DC Power 12V, 24V, 48V Input Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
