All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Related Manuals for Acnodes КСР802
Summary of Contents for Acnodes КСР802

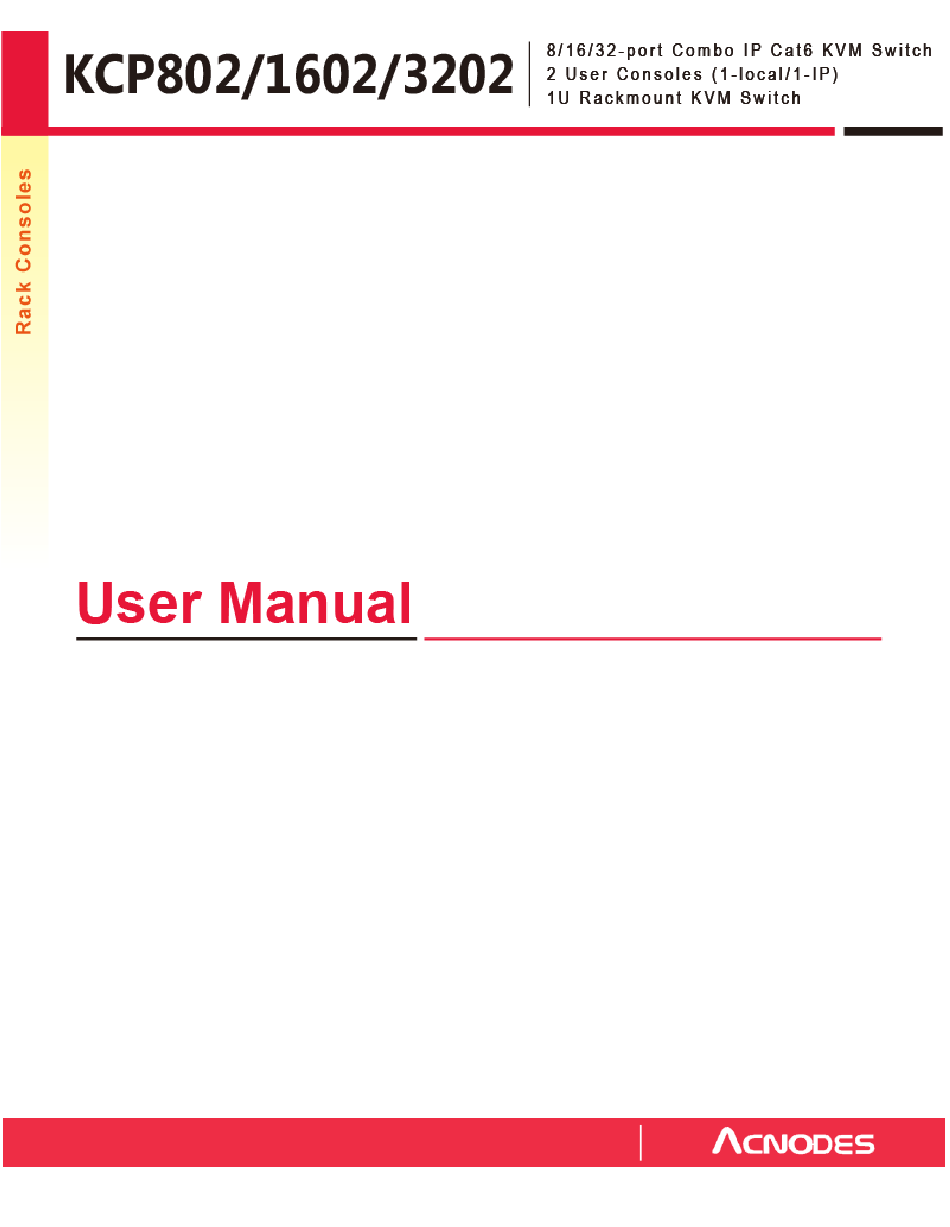

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part 1 > Combo Cat6 2-console KVM KCP802 KCP1602 KCP3202 Package contents KVM port & Cat6 dongle connection IP & Local console connection IP console setting KVM Cascade IP Multi-port connection to remote PDU P.6 - 7 Specifications <... - Page 4 Before Installation ¦ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ¦ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-

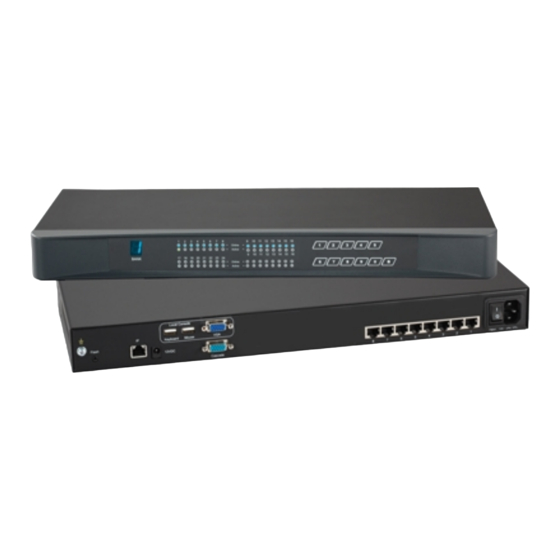

Page 5: Kcp802 Kcp1602 Kcp3202
Part 1. Combo Cat6 < 1.1 > Package Content Combo Cat6 IP KVM KCP802 / KCP1602 / KCP3202 • Combo IP KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord x 1 KVM unit IP console x 1 Local Local console x 1... -
Page 6: Kvm Port & Cat6 Dongle Connection
< 1.2 > KVM port & Cat6 dongle connection Combo Cat6 IP KVM USB Servers DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port PS/2 Servers USB Servers PS/2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable VG A VG A max. -
Page 7: Ip & Local Console Connection
< 1.3 > IP & Local console connection Combo Cat6 IP KVM Local console Network device hub or router CAT 5 / 6 cable max. 100m... -
Page 8: Ip Console Setting
< 1.4 > IP console setting After the cable connection, please take the following steps to configure the IP KVM : 1. Download IPKVMsetup.exe 2. Double click IPKVMsetup.exe to configure the IP KVM by device setup as below. 3. Click Refresh Device to search the connected IP KVM 4. -
Page 9: Kvm Cascade
< 1.5 > KVM Cascade Combo Cat6 IP KVM ¦ Cascade up to 8 levels, 256 servers ¦ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of KC801 / KC1601 / KC3201. When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 10: Ip Multi-Port Connection To Remote Pdu
< 1.6 > IP Multi-port connection to remote PDU Combo Cat6 IP KVM IP KVM provides RJ-45 Multi port for the user to remotely control and manage servers & PDU together. Combo IP KVM Other band IP KVM can NOT connect InfraPower PDU Each RJ-45 Multi port connect max. - Page 11 < 1.6 > IP Multi-port connection to remote PDU Combo Cat6 IP KVM To access the PDU GUI, please enter the IP KVM main page and select Remote Power > Start Service > Apply L INK O UT PDU cascade port CURRE NT Current display OF F...
-
Page 12: Specifications
< 1.7 > Specifications Combo Cat6 IP KVM KCP802 KCP1602 KCP3202 ¯ KVM Port Number of ports: 8, 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable ¯... -
Page 13: Part 2. Usage
Part 2. Usage Combo Cat6 KVM Usage 2.1 KVM Button Power ON ¦ Turn off all servers and KVM switches ¦ Make sure all cables / connectors are properly connected ¦ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications 8 ports Bank no. -
Page 14: Password
Combo Cat6 KVM Usage Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ¦ Enable password Press the KVM hotkey Scroll Lock + S croll Lock + U Logout the KVM by pressing the hotkey Scroll Lock + Scroll Lock + P In SUPERVISOR level, enter “00000000”... -
Page 15: Kvm Osd
2.3 KVM OSD Combo Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port... -
Page 16: Kvm Hotkey & Remote Console Hotkey
2.4 KVM Hotkey & Remote Console Hotkey Combo Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock +... -
Page 17: Dc Power 12V, 24V, 48V Input
2.5 DC Power 12V, 24V, 48V Input Combo Cat6 KVM Usage Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA...
