KPH802/1602
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
© Copyright 2021 Acnodes Corp.

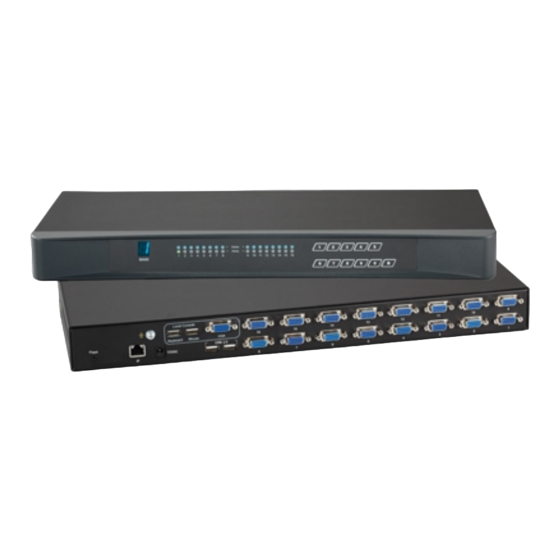

8 or 16 Port USB Hub KVM Switch
2 User Console (1-Local / 1-IP)
1U Rackmount KVM Switch
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes KPH1602
Summary of Contents for Acnodes KPH1602
- Page 1 1U Rackmount KVM Switch User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > USB Hub DB-15 2-console KVM KPH802 KPH1602 Package Contents KVM Port Connection IP & Local Console Connection IP Console Setting Important Preconfiguration for IP console P.5-6 Built-in USB Hub Usage & Connection Specifications < Part. 2 >... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1 > Usb Hub
USB Hub DB-15 < 1.1 > Package Contents KPH802 / KPH1602 KVM unit KPH802 or KPH1602 KVM unit x 1 • • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1... -
Page 6: Kvm Port Connection
< 1.2 > KVM Port Connection CB-6 / CB-10 / CD-15U USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port CB-6 / CB-10 / CD-15U USB KVM cable support USB server USB Servers... -
Page 7: Ip & Local Console Connection
< 1.3 > IP & Local Console Connection Network device hub or router CAT 5 / 6 cable IP Console Frequency Resolution Support ( Hz ) 1600 x 1200 1280 x 1024 1024 x 768 60 / 70 / 75... -
Page 8: Ip Console Setting
9. Change the desired IP address / Subnet mask / Gateway, then click Setup Device to confi rm the setting to IP KVM 10. The default address is as below:-- ■ The single IP KVM model, such as KPH1602 - http://192.168.1.22 11. Open Internet Explorer ( I.E. ), version 6.0 or above 12. Enter the IP KVM address into the address bar - For Single IP - http://192.168.1.22... -
Page 9: Important Preconfiguration For Ip Console
< 1.5 > Important Preconfiguration for IP console You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz. - Page 10 < 1.5 > Important Preconfi guration for IP console ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
-
Page 11: Built-In Usb Hub Usage & Connection
< 1.6 > Built-in USB Hub Usage & Connection 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera... -
Page 12: Specifications
< 1.7 > Specifi cations KPH802 KPH1602 KVM Port ▀ Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console ▀ Graphic connector :... -
Page 13: Part 2 > Usage
< Part 2 > Usage < 2.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Bank no. -
Page 14: Password
< 2.2 > Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 15: Kvm Osd
< 2.3 > KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port... -
Page 16: Kvm Hotkey & Remote Console Hotkey
< 2.4 > KVM Hotkey & Remote Console Hotkey Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock +... -
Page 17: Part 3 > Options
< Part 3 > Options < 3.1 > DC Power Option Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...
