All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Related Manuals for Acnodes KVS1601

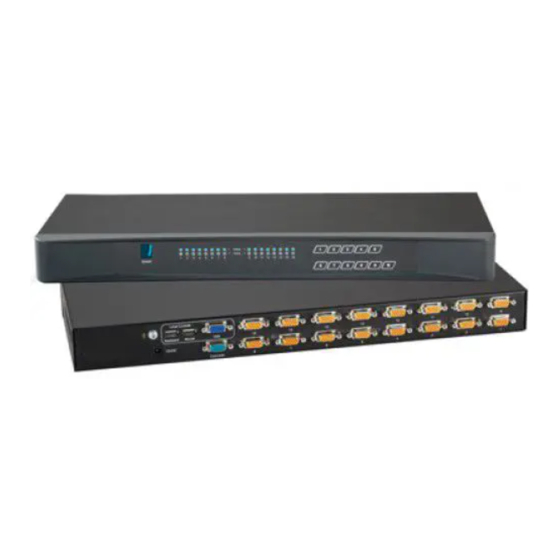

Summary of Contents for Acnodes KVS1601

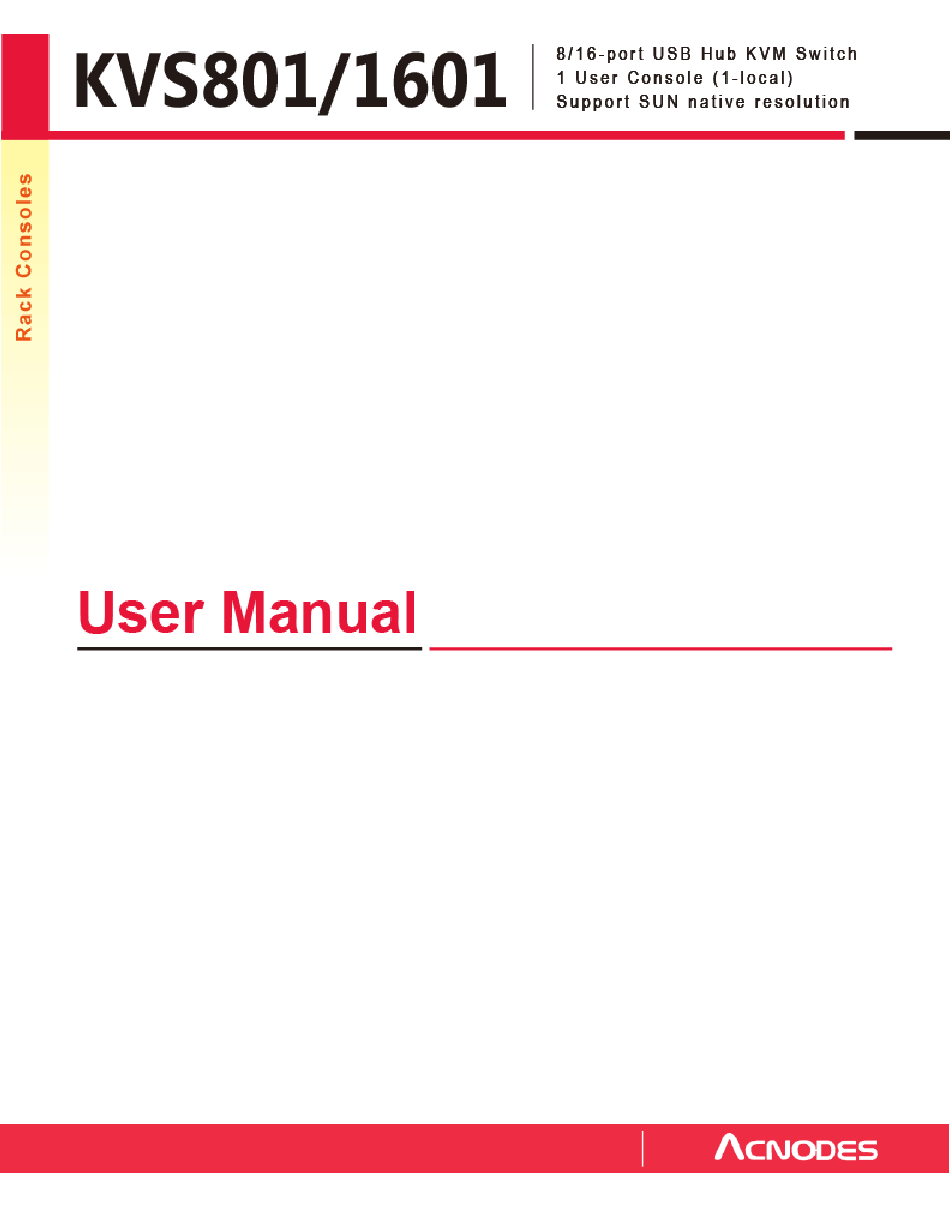

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part 1 > Combo KVM KVS801 KVS1601 Package contents KVM port connection KVM Cascade Specifications < Part 2 > Usage KVM Button Password KVM OSD KVM Hotkey & Remote Console Hotkey DC power 12V, 24V, 48V Input... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1. Combo Kvm
Part 1. Combo KVM < 1.1 > Package Contents KVS801 / KVS1601 KVM unit • KVS801 or KVS1601 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord ( for KVM ) x 1... -
Page 6: Kvm Port Connection
< 1.2 > KVM port connection CE-6 / CE-10 / CE-15 USB Servers ¦ 6 / 10 / 15 ft Combo KVM cable ¦ Support PS/2 or USB server Combo KVM port Combo KVM cable support PS/2 or USB server PS/2 Servers... -
Page 7: Kvm Cascade
¦ Cascading multiple KVM with cascade cable. Cascaded KVMs from level 2 to 8 must be the models of KVS801 / KVS1601. When multiple combo KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. level 2 to 8). -
Page 8: Specifications
< 1.4 > Specifications KVS801 KVS1601 ¯ KVM Port Number of ports: 8 or 16 Connector: Combo connector Connectivity: Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet ¯ Local Console Graphic connector: 1 x VGA Resolution: Up to 1600 x 1200 Input device: 2 x USB type A for keyboard &... -
Page 9: Part 2. Usage
Part 2. Usage 2.1 KVM Button Power ON ¦ Turn off all servers and KVM switches ¦ Make sure all cables / c onnectors are properly connected ¦ Recomm end Power ON sequence is m onitor, KVM switch finally computer Front Panel - Port LED Indications 8 ports Bank no. -
Page 10: Password
2.2 Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ¦ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 11: Kvm Osd
2.3 KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port PgUp/PgDn... -
Page 12: Kvm Hotkey & Remote Console Hotkey
2.4 KVM Hotkey & Remote Console Hotkey Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp / PgDn... -
Page 13: Dc Power 12V, 24V, 48V Input
2.5 DC Power 12V, 24V, 48V Input Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
