All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Related Manuals for Acnodes KV801
Summary of Contents for Acnodes KV801

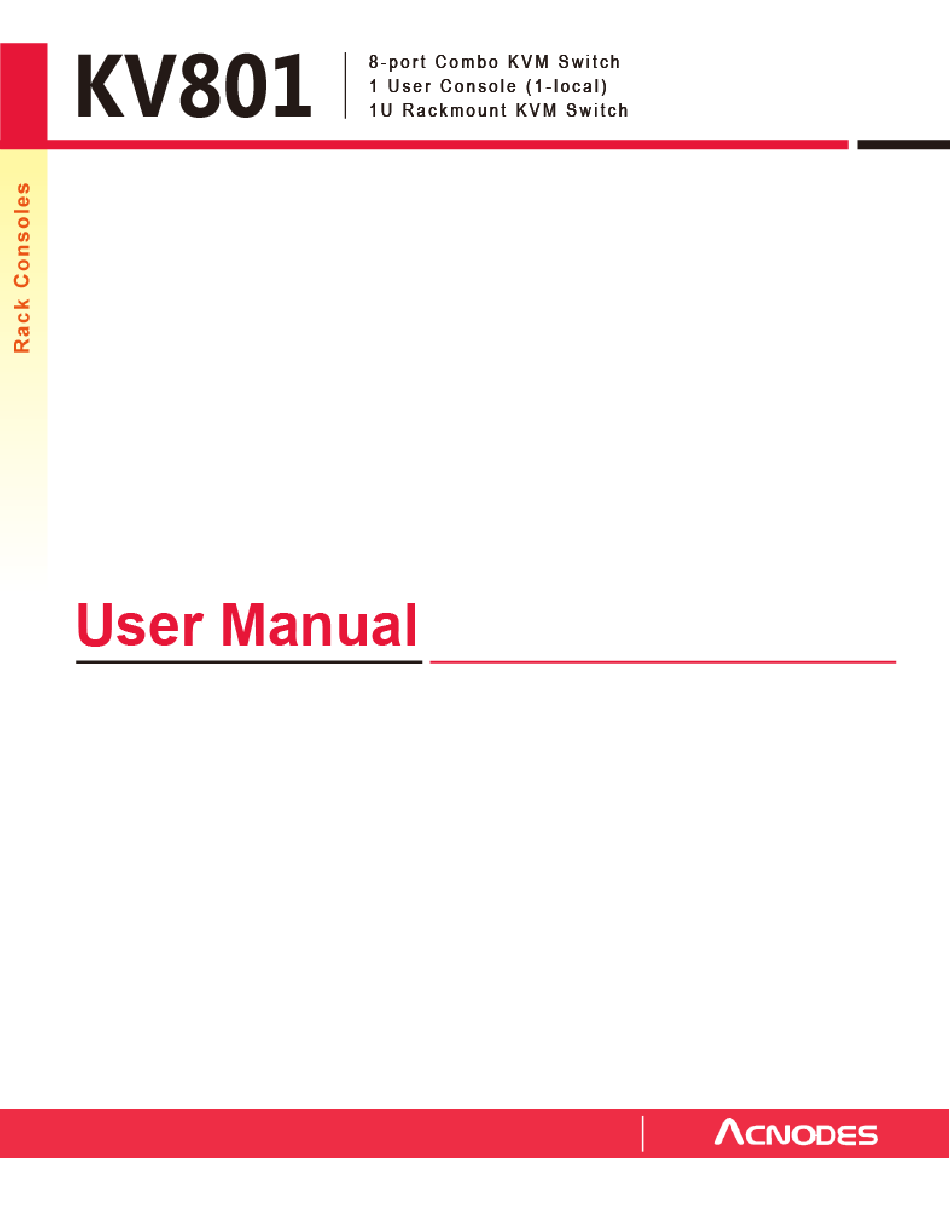

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part 1 > PS/2 DB-15 KVM KV 801 Package contents KVM port connection KVM Cascade Specifications < Part 2 > Usage KVM Button Password KVM OSD KVM Hotkey DC power 12V, 24V, 48V Input... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1. Ps/2 Db-15 Kvm
Part 1. PS/2 DB-15 KVM < 1.1 > Package Contents KV801 KVM unit • KV801 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord ( for KVM ) x 1 KV801 Local Console... -
Page 6: Kvm Cascade
¦ Cascading multiple KVM with CA-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of KV801. When multiple PS/2 DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. level 2 to 8). -
Page 7: Specifications
< 1.4 > Specifications KV801 KVM Port ¯ Number of ports: Connector: DB-15 combo connector Connectivity: PS/2 3-in-1 KVM cable, up to 6, 10 & 15 feet Local Console ¯ Graphic connector: 1 x DB-15 VGA Resolution: Up to 1600 x 1200 Input device: 2 x PS/2 for keyboard &... -
Page 8: Part 2. Usage
Part 2. Usage 2.1 KVM Button Power ON ¦ Turn off all servers and KVM switches ¦ Make sure all cables / connectors are properly connected ¦ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications PS/2 DB-15 KVM 8 ports Bank no. -
Page 9: Password
2.2 Password The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ¦ Set your own user name & password Scroll Lock + Scroll Lock + Space Bar Call KVM OSD menu by pressing the KVM hotkey Select “CHANGE PASSWORD”... -
Page 10: Kvm Osd
2.3 KVM OSD OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected OSD menu on screen time Scan interval from one PC port to next PC when SCAN applying auto scan CHANGE PASSWORD... -
Page 11: Kvm Hotkey
2.4 KVM Hotkey Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp Switch to previous bank Scroll Lock + Scroll Lock +... -
Page 12: Dc Power 12V, 24V, 48V Input
2.5 DC Power 12V, 24V, 48V Input Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
