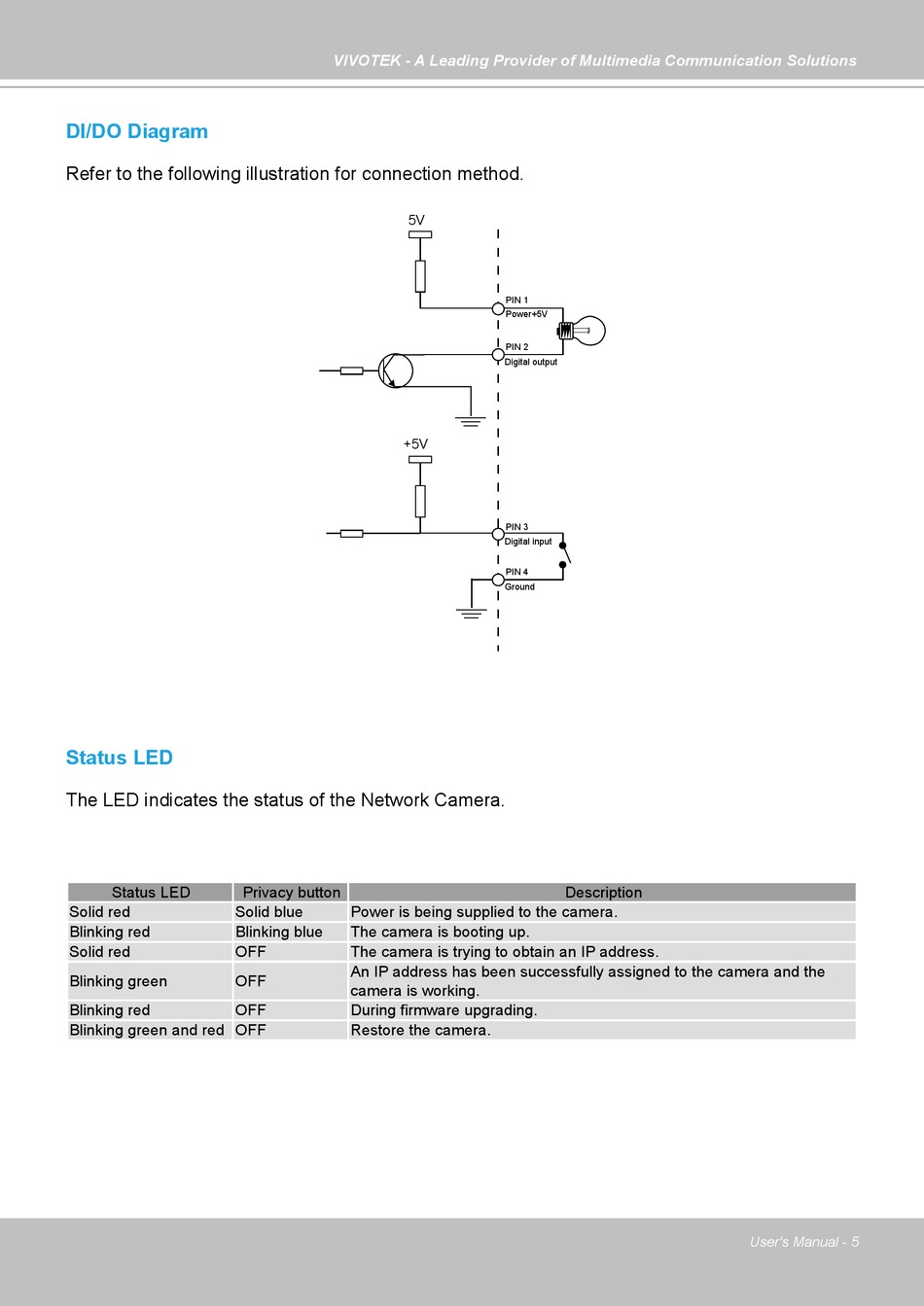

DI/DO Diagram
Refer to the following illustration for connection method�
Status LED
The LED indicates the status of the Network Camera�
Status LED
Solid red
Solid blue
Blinking red
Blinking blue
Solid red
OFF
Blinking green
OFF
Blinking red
OFF
Blinking green and red OFF
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
5V
+5V
Privacy button
Power is being supplied to the camera�
The camera is booting up�
The camera is trying to obtain an IP address�
An IP address has been successfully assigned to the camera and the
camera is working�
During firmware upgrading�
Restore the camera�
PIN 1
Power+5V
PIN 2
Digital output
PIN 3
Digital input
PIN 4
Ground
Description
User's Manual - 5
